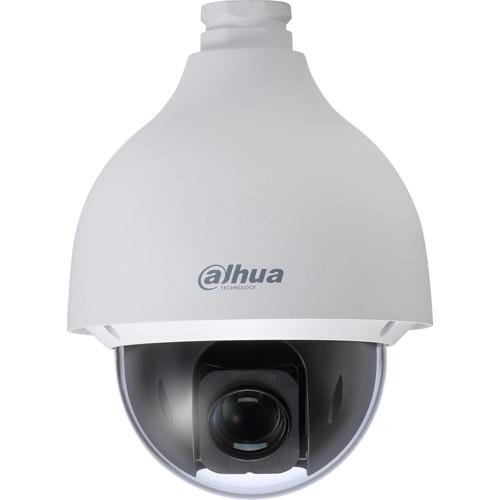

Product description The Pro Series 2MP Starlight Outdoor HD-CVI PTZ Dome Camera from Dahua Technology features a 1/2.8" STARVIS CMOS sensor with a 4.5-135mm 30x optical zoom lens, and provides an all-in-one solution for capturing long-distance video surveillance, day or night. The camera is capable of capturing video at a maximum resolution of 1920 x 1080. For applications with both bright and low-light conditions that change quickly, true WDR (120 dB) optimizes both the bright and dark areas of a scene at the same time to provide usable video. In addition, the camera also comes with PTZ (pan/tilt/zoom) control. The camera features a built-in heater and offers an operating temperature range of -40 to 158°F. This camera comes with an IP67 rating that indicates protection from harsh weather conditions. It is also IK10-rated against vandalism. - Starlight Technology
- For challenging low-light applications, Dahua's Starlight Ultra-low Light Technology offers light sensitivity, capturing color details in conditions down to 0.005 lux. The camera uses a set of optical features to balance light throughout the scene, resulting in clear images in dark environments.
- Multi-Format Output Support
- The camera supports multiple video formats including, HD-CVI, CVBS, AHD, and TVI. The camera can switch between these four formats via the OSD menu or via a UTC controller (PFM820, available separately).
- HD-CVI Technology
- HD-CVI technology integrates traditional analog surveillance systems with HD video. The plug-and-play approach enables full HD video surveillance without the hassles of configuring a network.
- Dual Video Output Signals
- The camera offers one BNC video output connection to transmit either an HD-CVI or a CVBS signal. These output signals allow the camera to integrate with various devices, including analog matrix systems and monitors.
- True Wide Dynamic Range
- The camera can capture video in even intense contrast lighting conditions using WDR technology. For applications with both bright and low lighting conditions that change quickly, True WDR (120 dB) optimizes both the bright and dark areas of a scene at the same time to provide usable video.
- Defog
- The Defog feature adjusts the camera's contrast settings to provide improved image quality in scenes affected by fog, smog, mist, smoke, or other low-contrast interference.
- Environmental
- With a built-in heater and a temperature range of -40 to 158°F, the camera is designed for extreme temperature environments. The camera's IP67-rated water-resistant and IK10-rated vandal-resistant housing ensures reliable video surveillance for a variety of indoor and outdoor applications.
- Protection
- The 6kV lightning rating provides protection for the camera and its structure from the effects of lightning.
UPC: 819290021103 In the Box Dahua Technology Pro Series 2MP 30x Starlight Outdoor HD-CVI PTZ Dome Camera 24 VAC/1.5A Power Supply Mount Adapter for Dome Camera (2.3 x 2.1") Wall Mount Bracket Limited 5-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Dahua Technology Pro Series 2MP 30x Starlight Outdoor HD-CVI PTZ Dome Camera in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersDahua Technology 50230IC Specs | | | Image Sensor | 1/2.8" STARVIS CMOS | | Effective Pixels (H x V) | 1920 x 1080, 2 MP | | Scanning System | Progressive | | Electronic Shutter Speed | 1/300,000 to 1/3 sec | | Minimum Illumination | Color: 0.005 lux at f/1.6
B&W: 0.0005 lux at f/1.6 | | S/N Ratio | >55 dB | | | | Focal Length | 4.5-135mm | | Maximum Aperture | f/1.6 to 5 | | Angle of View | Horizontal: 2.4 to 67.8° | | Optical Zoom | 30x | | Focus Control | Auto, manual | | Close Focus Distance | 3.94 to 39.37" (100 to 1000 mm) | | DORI Distance | Detect (8 PPF): 6109' (1862 m)
Observe (19 PPF): 2441' (744 m)
Recognize (38 PPF): 1220' (372 m)
Identify (76 PPF): 610' (186 m) | | | | Pan/Tilt | Pan: 0 to 360° endless
Tilt: 0 to 90°
Auto Flip: 180° | | Manual Control Speed | Pan: 0.1 to 350°/sec
Tilt: 0.1 to 250°/sec | | Preset Speeds | Pan: 500°/sec
Tilt: 500°/sec | | Presets | 300 | | PTZ Mode | 5 patterns, 8 tours, auto pan, auto scan | | Setup | Human-oriented focal length / speed adaptation | | Power Up Action | Auto restore to previous PTZ and lens status after power failure | | Idle Motion | Activate Preset, Scan, Tour, Pattern if there is no command in the specified period | | Protocol | DH-SD, Pelco P/D (auto recognition) | | | | Resolution | 1080p (1920 x 1080), 720p (1280 x 720) | | Frame Rate | 1080p at 30 fps or 720p at 30/60 fps | | Video Output | One channel BNC
High-definition video output (HDCVI, AHD, TVI)
CVBS standard definition video output (switchable) | | Maximum Video Transmission Range | RG-59/U Coax:
720p: 1640.42' (500 m)
1080p: 1312.34' (400 m)
RG-6/U Coax:
720p: 2624.7' (800 m)
1080p: 1968.5' (600 m)
Cat6 UTP (Balun Required):
720p: 1246.72' (380 m)
1080p: 1246.72' (380 m) | | | | Day/Night | Auto (ICR), Color, B&W | | Light Compensation | BLC, HLC | | Wide Dynamic Range | 120 dB | | White Balance | Auto, ATW, Indoor, Outdoor, Manual | | Gain Control | Auto, Manual | | Noise Reduction | Ultra DNR (2D/3D) | | Advanced Features | Defog | | Digital Zoom | 16x | | Image Flip | 180° | | Privacy Masking | Up to 24 areas | | OSD Menu | English, French, German, Italian, Japanese, Polish, Portuguese, Russian, Spanish | | Connectors | Video Output: 1 x BNC
Audio Input: 1 channel
1 x RS-485
Alarm:
Input: 2 channels
Output: 1 channel | | | | Power Supply | 24 VAC, 1.5 A (
