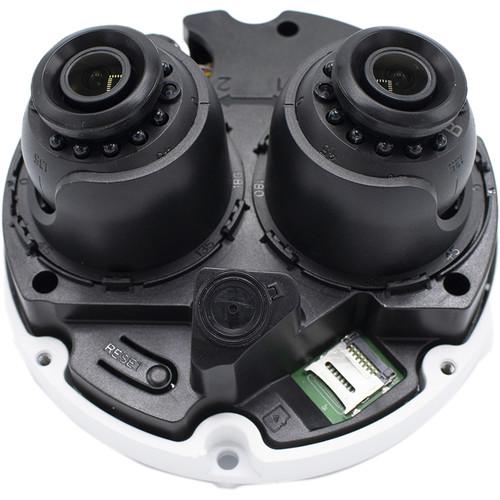

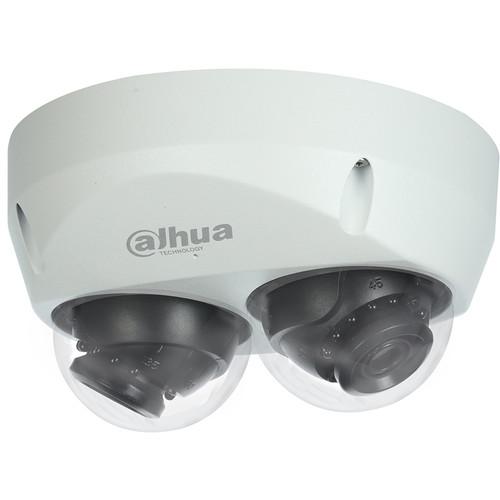

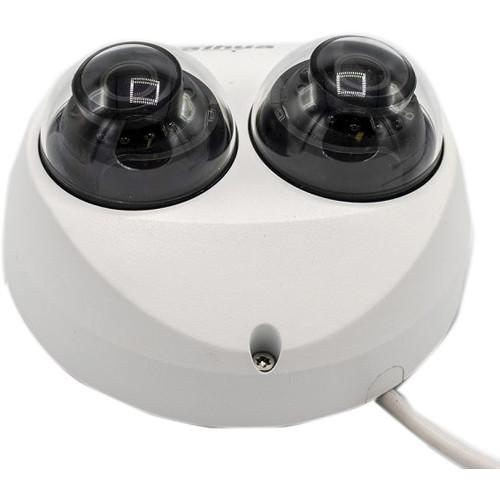

Product description The Pro Series 2MP Outdoor Dual-Sensor Network Dome Camera with Night Vision from Dahua Technology uses two 1/2.8" STARVIS progressive scan CMOS sensors to capture 1920 x 1080 resolution video at 30 fps. Each sensor has 10 IR LEDs to provide a night vision range up to 66'. Two 2.8mm fixed lenses deliver a combined 110° horizontal field of view. A built-in microphone enables audio pickup. An onboard memory card slot supports microSD cards up to 128GB. microSD cards are available separately. Integrated PoE technology simplifies connectivity by enabling the transfer of power and data through a single cable.
This dual-sensor camera is ONVIF-compliant for profiles S & G, making it compatible with a wide range of surveillance devices. It is housed in an IP67- and IK10-rated metal enclosure that is suitable for outdoor use in areas at risk of vandalism. - Each sensor can be positioned and configured independently of the other to enable multi-directional video surveillance
- Built-in IVS (Intelligent Video System) analytic algorithms monitor a scene for intrusions, abandoned or missing objects, tampering detection, and tripwire violations, along with facial detection in a defined area within a scene
- IR cut filter for day and night functionality
- Starlight technology for low-light applications
- Auto and manual IR on/off control
- H.265, H.264, and MJPEG video compression
- Dual streaming per sensor
- Unicast and multicast streaming methods
- Camera pivots ±90° horizontally and from 0 to 65° vertically
- True wide dynamic range (120 dB, channel 1 only), backlight compensation, and highlight compensation
- White balance modes include auto, natural, street lamp, outdoor, and manual
- Auto and manual gain control
- Motion detection for 4 zones (rectangular)
- ROI (region of interest) for 4 zones
- Privacy masking for 4 areas (rectangular)
- 0, 90, 180, and 270° flip perspective
- Compatible with Internet Explorer, Chrome, Firefox, Safari, iOS, and Android
- Records to a local PC, microSD card, and NAS edge storage
- IP67- and IK10-rated metal enclosure that is suitable for outdoor use in areas at risk of vandalism
- ±30% input voltage tolerance and 4kV lightning protection
- DORI Distance
-
- 134' (detect / 8 ppf)
- 52' (observe / 19 ppf)
- 26' (recognize / 38 ppf)
- 13' (identify / 76 ppf)
UPC: 819290025378 In the Box Dahua Technology Pro Series 2MP Outdoor Dual-Sensor Network Dome Camera with Night Vision Screw Package Aviation Port Installation Position Map Waterproof Connector Wrench Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Dahua Technology Pro Series 2MP Outdoor Dual-Sensor Network Dome Camera with Night Vision in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersDahua Technology DH-IPC-HDBW4231FN-E2-M Specs | | | Sensor | 2 x 2 MP 1/2.8" CMOS | | Focal Length | 2.8mm | | Maximum Aperture | f/2 | | Zoom | Digital: 16x | | Lens Field of View | Horizontal: 110°
Vertical: 60° | | IR Cut Filter | Mechanical | | Day/Night | Yes | | Minimum Illumination | Color: 0.009 Lux
B&W: 0 Lux | | Shutter Speed | 1/100,000 to 1/3 Seconds | | Camera Angle Adjustment | Horizontal: -90 to 90°
Vertical: 0 to 65° | | | | Streaming Resolution | 1920 x 1080 at 30 fps (10.24 Mb/s H.264) | | Supported Video Compression | H.264, H.265, MJPEG | | Multi-View Streaming | Yes, 2 Streams Two streams per sensor | | Automatic Gain Control | Yes | | | | Streaming | Single | | Audio Formats | AAC, G.711, G.726 | | Built-In Mic | Yes | | | | Security | HTTPS, IEEE 802.1X | | Supported Protocols | ARP, Bonjour, DDNS, DHCP, DNS, FTP, HTTP, ICMP, IGMP, IPv4/v6, NTP, PPPoE, QoS Layer 3 DiffServ, RTP, RTSP, SMTP, TCP, UDP, UPnP | | | | Application Programming Interface (API) | ONVIF Profiles S & G | | Analytics | Tampering, Memory Card Error, Network Error, Unauthorized Access, Motion, Tripwire, Intrusion, Scene Change, Abandoned/Missing Object, Facial Detection | | Event Trigger | Yes | | Event Action | Recording, Notification, Alarm | | Data Streaming | Yes | | | | Mobile Operating Systems | iOS, Android | | | | Memory | 512 MB RAM / 256 MB Flash | | Recording Media | microSD (Up to 128 GB) | | Pan/Tilt | None | | I/O Connections | 1 x RJ45
1 x Power | | IR Range | 65.62' / 20 m | | Video Management Software | SmartPSS, DSS, DMSS | | Internal Storage | None | | External Storage Options | Local PC, NAS | | Power Source | DC, PoE 802.3af (15 W) | | Power Consumption | 6.5 W | | Material of Construction | Metal (Unspecified Type) | | Operating Temperature | -22 to 140°F / -30 to 60°C | | Storage Temperature | -22 to 140°F / -30 to 60°C | | Operating Humidity | 0 to 95% | | IP Rating | IP67 | | IK Rating | IK10 | | Dimensions |
