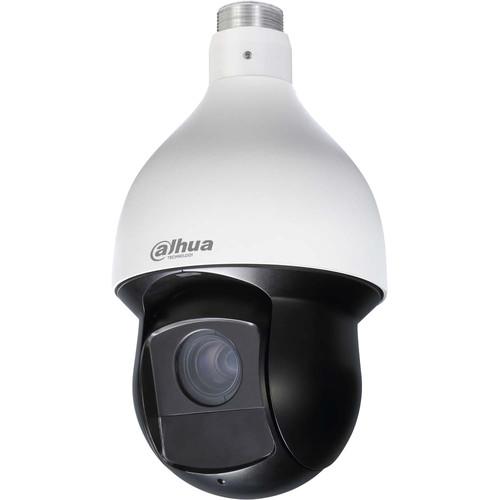

User Manual for Dahua Technology Pro Series 2MP Outdoor HD-CVI PTZ Dome Camera with Night Vision with 4.5-135mm Lens Click to enlarge the picture
Contents of the user manual for the Dahua Technology Pro Series 2MP Outdoor
- Product category: Wired Analog & HD Cameras Dahua Technology
- Brand: Dahua Technology
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Dahua Technology Wired Analog & HD Cameras
|
User manual for the Dahua Technology Pro Series 2MP Outdoor contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Dahua Technology product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Dahua Technology user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Dahua Technology product will considerably shorten its lifespan!
|
Product description The Pro Series 2MP Outdoor HD-CVI PTZ Dome Camera from Dahua Technology delivers 1080p video over a coaxial cable. The design makes it suitable for residential and small or mid-size business use. Thanks to Starlight technology, the camera is able to deliver clear images in challenging low-light environments as low as 0.005 lux. It uses embedded WDR (Wide Dynamic Range) technology for capturing images in contrasting lighting conditions. The camera uses HD-CVI technology that bridges the gap between low-resolution analog and high-definition IP formats for users who require higher quality video without upgrading to IP systems. It allows three signals (audio, video, and data) to be transmitted simultaneously over one coaxial cable. The camera transmits 1080p/720p video and communicates with HCVR control signals. The IP66-rated weather-resistant housing makes this camera suitable for both indoor and outdoor applications. - HDCVI Technology
- HD-CVI technology provides real-time 1920 x 1080 video transmission over distances as far as 3900'. It uses an existing coaxial cable and supports signal transmission via RG-59, RG-6, or Cat 6 UTP cabling.
- Starlight Technology
- For challenging low-light applications, the camera features Starlight technology to capture color video to 0.005 lux.
- IR Illumination
- The camera's integrated IR LEDs provide night visibility to a range of 492' in extreme low-light environments.
- Wide Dynamic Range
- For applications with both bright and low light conditions that change quickly, true WDR (120 dB) optimizes both the bright and dark areas of a scene at the same time to provide usable video.
- Environmental
- With a temperature range of -40 to 140°F, the camera is designed for extreme temperature environments. Subjected to dust and water immersion tests, the IP66 rating means the camera is suitable for outdoor applications. An integrated wiper provides clear visibility when installed in areas with rain, sleet, snow, and fog.
- Protection
- The camera supports ±25% input voltage tolerance for unstable conditions in outdoor applications. Its 8kV lightning rating protects the camera and its structure from the effects of lightning.
UPC: 816116022924 In the Box Dahua Technology Pro Series 2MP Outdoor HD-CVI PTZ Dome Camera with Night Vision with 4.5-135mm Lens Limited 5-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Dahua Technology Pro Series 2MP Outdoor HD-CVI PTZ Dome Camera with Night Vision with 4.5-135mm Lens in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersDahua Technology DH-SD59A230IN-HC-S2 Specs | | | Image Sensor | 1/2.8" Exmor CMOS | | Effective Pixels (H x V) | 1920 x 1080; 2 MP | | Scanning System | Progressive | | Electronic Shutter Speed | 1/30,000 to 1 sec | | Minimum Illumination | Color: 0.005 lux at f/1.6
B&W: 0.0005 lux at f/1.6
IR On: 0 lux | | S/N Ratio | >50 dB | | IR Range | 492' / 150 m | | IR Control | Auto/Manual | | IR LEDs | 4 | | Frame Rate | 30 fps at 1080p, 30/60 fps at 720p | | Video Output | 1-channel BNC HD-CVI HD video output / CVBS SD video output (switchable) | | | | Day/Night | Auto (ICR) / Color / B&W | | Backlight Compensation | BLC/HLC/WDR (120 dB) | | White Balance | Auto, ATW, indoor, outdoor, manual | | Gain Control | Auto/manual | | Noise Reduction | Ultra-DNR (2D/3D) | | Privacy Masking | Up to 24 areas | | Digital Zoom | 16x | | Image Flip | 0/180° | | Privacy Masking | Up to 24 areas | | | | Type | Motorized / Auto Iris | | Mount Type | Board-in | | Focal Length | 4.5-135mm | | Optical Zoom | 30x | | Maximum Aperture | f/1.6 to 5.0 | | Horizontal Angle of View | 67.8 to 2.7° | | Focus Control | Auto/Manual | | Close Focus Distance | 100 to 1000 mm | | | | Panning Range | 0; to 360° endless | | Tilting Range | -15 to 90°; auto flip 180° | | Manual Control Speed | Pan: 0.1 to 300°/sec
Tilt: 0.1 to 200°/sec | | Preset Speeds | Pan: 400°/sec
Tilt: 300°/sec | | Preset | 300 | | PTZ Mode | 5 x pattern, 8 x tour, auto pan, auto scan | | Speed Control | Human-oriented focal length/speed adaptation | | Power-Up Action | Auto restore to previous PTZ and lens status after power failure | | Idle Motion | Activate preset/scan/tour/pattern if there is no command in the specified period | | Time Task | Auto activation of preset/pan/scan/tour/pattern by preset time | | Protocol | DH-SD, Pelco P/D (Auto recognition) | | | | Audio | 1 input | | Alarm | 2 x inputs
1 x output | | RS-485 | 1 | | | | Certifications | FCC (SEFD1602154-B)
UL (E234884-A54-UL) | | Power Supply | 24 VAC; 3 A (±10%) | | Power Consumption | Maximum: 13 W
IR On: 25 W | | Operating Conditions | -40 to 158°F / -40 to 70°C, less than 90% RH
Startup should be done at above -31°F / -35°C | | Storage Conditions | -22 to 140°F / -30 to 60°C, less than 90% humidity | | Ingress Protection | IP66 | | Dimensions | 7.32 x 12.17" / 186 x 309 mm | | Weight | 8.16 lb / 3.7 kg |
