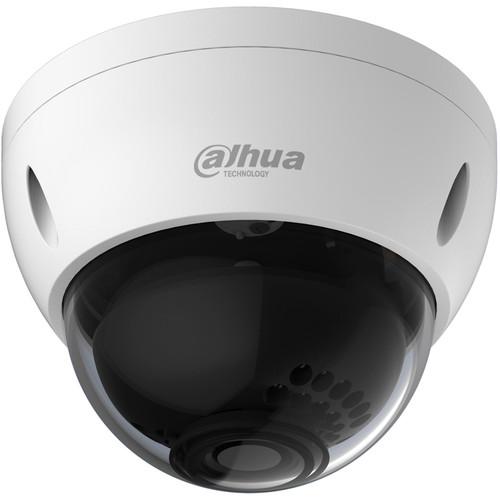

User Manual for Dahua Technology Pro Series 2MP Outdoor Network Dome Camera with 2.8mm Lens and Night Vision Click to enlarge the picture
Contents of the user manual for the Dahua Technology Pro Series 2MP Outdoor
- Product category: Wired IP Cameras Dahua Technology
- Brand: Dahua Technology
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Dahua Technology Wired IP Cameras
|
User manual for the Dahua Technology Pro Series 2MP Outdoor contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Dahua Technology product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Dahua Technology user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Dahua Technology product will considerably shorten its lifespan!
|
Product description The Pro Series 2MP Outdoor Network Dome Camera with 2.8mm Lens and Night Vision from Dahua Technology features a 1/2.7" progressive scan CMOS sensor to capture 1920 x 1080 resolution video at up to 30 fps. Equipped with a 2.8mm fixed lens, the camera has a 120° field of view. The camera's lens is surrounded by IR LEDs, providing up to 98' of visibility in complete darkness. A built-in microSD slot supports up to a 128GB microSD card (available separately) for on-board storage. Equipped with Intelligent Video System (IVS) analytics, this camera has the ability to detect and analyze moving and idle objects, tripwire crossing, and faces. Housed in an IP67- and IK10-rated enclosure, this camera is suitable for outdoor use and is protected from dust, water, and impact. - 1/2.7" CMOS sensor captures 1080p video at up to 30 fps
- IR LEDs for night vision up to 98' in complete darkness
- 2.8mm lens has a 120° field of view to monitor medium-sized outdoor areas
- Audio input and output for two-way audio
- Built-in microSD card slot
- Wide Dynamic Range (WDR), Backlight Compensation, Highlight Compensation, and 3D Noise Reduction help the camera produce images in varying lighting conditions
- Built-in IVS for advanced analytics and detection
- IP67-rated for outdoor use and IK10 vandal resistance
UPC: 856920006260 In the Box Dahua Technology Pro Series 2MP Outdoor Network Dome Camera with 2.8mm Lens and Night Vision Limited 3-Year Warranty Brochure PDF 448.4kb Table of Contents
|
Upload User Manual
Have you got an user manual for the Dahua Technology Pro Series 2MP Outdoor Network Dome Camera with 2.8mm Lens and Night Vision in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersDahua Technology DH-IPC-HDBW42A1EN-AS 2.8MM Specs | | | Image Sensor | 2 MP 1/2.7" progressive scan CMOS sensor | | Effective Pixels | 1920 x 1080 | | ROM | 16 MB | | RAM | 256 MB | | Electronic Shutter Speed | 1/3 (1/4) to 1/100,000 sec | | Minimum Illumination | Color: 0.01 lux at f/2.0
B/W: 0.001 lux at f/2.0
0 lux at f/2.0 (IR LEDs on) | | S/N Ratio | >50 dB | | Number of IR LEDs and Range | 24 x IR LEDs, up to 98' (30 m) | | | | Lens Type | Fixed | | Mount Type | Board-in | | Focal Length | 2.8mm | | Maximum Aperture | f/2.0 | | Field of View | Horizontal: 120° | | Focus Control | Fixed | | Adjustments | Pan: 0 to 355°
Tilt: 0 to 65°
Rotation: 0 to 355° | | | | Compression | H.264, MJPEG | | Streaming Capability | 3 streams | | Resolution | 1080p (1920 x 1080), 720p (1280 x 720), D1 (704 x 576, 704 x 480), CIF (352 x 288, 352 x 240) | | Frame Rate | Main Stream: 2 MP @ 1-30 fps
Sub Stream 1: D1/CIF @ 1-30 fps
Sub Stream 2: 720p @ 1-4 fps | | Bit Rate Control | CBR, VBR | | Bit Rate | H.264: 32 kbps to 10 Mbps | | Day/Night | Auto, color, B&W | | Backlight Compensation | BLC, HLC | | White Balance | Auto, sunny, night, outdoor, customized | | Gain Control | Auto, manual | | Noise Reduction | 3D-DNR | | Wide Dynamic Range | Up to 120 dB | | Motion Detection | Off, on (4 zones, rectangle) | | Region of Interest | Off, on (4 zones) | | Smart IR | Supported | | Digital Zoom | 16x | | Flip / Mirror | Flip: 0, 90, 180, 270°
Mirror: Off, on | | Privacy Masking | Off, on (4 areas, rectangle) | | | | Compression | G.711a, G.711u, AAC | | Interface | 1 x input, 1 x output | | | | Ethernet | RJ45 10/100Base-T | | Protocol | IPv4/IPv6, HTTP, HTTPS, SSL, TCP/IP, UDP, UPnP, ICMP, IGMP, SNMP, RTSP, RTP, SMTP, NTP, DHCP, DNS, PPPoE, DDNS, FTP, IP filter, QoS, Bonjour, 802.1x | | Compliance | ONVIF, PSIA, CGI | | Streaming Method | Unicast, multicast | | Maximum User Access | 20 | | Storage | NAS (Network Attached Storage), local PC for instant recording, microSD card up to 128 GB (all available separately) | | Web Viewer | Internet Explorer 10 and later | | Management Software | Smart PSS, DSS | | Mobile OS Support | iOS and Android | | | | Detection | Tripwire, intrusion, abandoned object, missing object, face | | | | Certifications | FCC (SEFD1506099-B), UL (E234884-A60-UL) | | Power Supply | 12 VDC ±25%
PoE 802.3af Class 0 | | Power Consumption | 12 VDC or PoE with IR LEDs On: 4 W maximum | | Operating Temperature | -22 to 140°F (-30 to 60°C) | | Operating Humidity | <90% RH | | Storage Temperature | -22 to 140°F (-30 to 60°C) | | Storage Humidity | <90% RH | | IP Rating | IP67 | | IK Rating | IK10 | | Dimensions | 4.33 x 3.2" (110 x 81 mm) | | Weight | 0.84 lb (0.38 kg) | | | | Package Weight | 1.15 lb | | Box Dimensions (LxWxH) | 5.512 x 5.354 x 4.646" |
