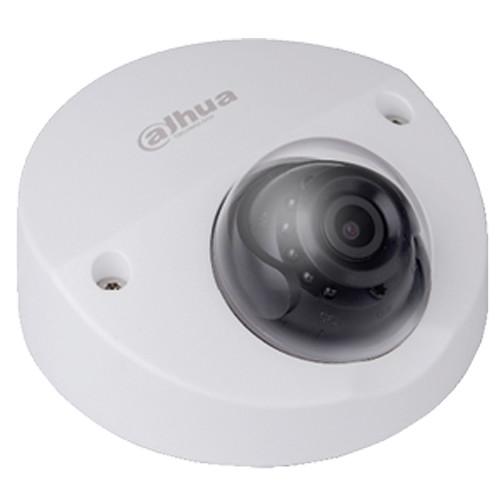

User Manual for Dahua Technology Pro Series 2MP Outdoor Network Wedge Dome Camera with Night Vision and 2.8mm Lens Click to enlarge the picture
Contents of the user manual for the Dahua Technology Pro Series 2MP Outdoor
- Product category: Wired IP Cameras Dahua Technology
- Brand: Dahua Technology
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Dahua Technology Wired IP Cameras
|
User manual for the Dahua Technology Pro Series 2MP Outdoor contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Dahua Technology product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Dahua Technology user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Dahua Technology product will considerably shorten its lifespan!
|
Product description The Pro Series 2MP Outdoor Network Wedge Dome Camera from Dahua Technology features a 1/2.8" progressive scan Exmor CMOS sensor and 2.8mm fixed lens for capturing videos at a maximum resolution of 1920 x 1080. Enclosed in an IP67- and IK10-rated housing, the camera can be used for both indoor and outdoor applications. For applications with both bright and low light conditions that change quickly, true WDR (120 dB) optimizes both the bright and dark areas of a scene at the same time to provide usable video. The camera comes with Starlight Ultra-low Light technology that offers enhanced light sensitivity to capture color details in low-light conditions down to 0.009 lux. The camera uses a set of optical features to balance light throughout the scene, resulting in clear images in dark environments. The IVS (Intelligent Video System) is a built-in video analytics algorithm that delivers intelligent functions to monitor a scene for tripwire violations, intrusion detection, and abandoned or missing objects. A camera with IVS responds to monitoring events in a specific area. In addition to scene analytics, the camera supports face detection to capture a face and upload the image to a server. The camera also offers tamper detection to generate a warning message that prompts you to inspect the camera. The H.265 video compression standard offers improved compression by expanding pattern comparison and difference-coding, improving motion vector prediction and motion region merging, and incorporating an additional filtering step called sample-adaptive offset filtering. Smart H.265+ is the optimized implementation of the H.265 codec that uses a scene-adaptive encoding strategy, dynamic GOP, dynamic ROI, flexible multi-frame reference structure, and intelligent noise reduction to deliver high-quality video without straining the network. With a temperature range of -22 to +140°F, the camera is designed for use in harsh environments. With support for ±30% input voltage tolerance, the camera can be used for outdoor applications with voltage fluctuations. The 6kV lightning rating indicates the camera and its structure are protected from the effects of lightning. Performance - 1/2.8" 2MP progressive scan Exmor CMOS sensor
- Triple-stream encoding with Smart H.265+ compression
- 1920 × 1080 video at 60 fps
- microSD card slot (available separately)
- IP67-rated and IK10-rated vandal-resistant housing
UPC: 816116026038 In the Box Dahua Technology Pro Series 2MP Outdoor Network Wedge Dome Camera with Night Vision and 2.8mm Lens Limited 5-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Dahua Technology Pro Series 2MP Outdoor Network Wedge Dome Camera with Night Vision and 2.8mm Lens in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersDahua Technology Pro Series Specs | | | Image Sensor | 1/2.8" 2 MP progressive scan Exmor CMOS sensor | | Effective Pixels | 1920 x 1080 | | Memory | 256 MB / 32 MB | | Scanning System | Progressive | | Minimum Illumination | Color: 0.009 lux at f/2
0 lux at f/2 with IR on | | S/N Ratio | More than 50 dB | | IR Distance | Distance up to 65.6' (20 m) | | IR Control | Auto/ Manual | | IR LEDs | 10 | | | | Lens Type | Fixed | | Mount Type | Board-in | | Focal Length | 2.8mm | | Maximum Aperture | f/2.0 | | Angle of View | Horizontal: 110°
Vertical: 58° | | Focus Control | Fixed | | | | Range | Pan: 0 to 360˚
Tilt: 0 to 80˚
Rotation: 0 to 360˚ | | | | Compression | Smart H.265+, H.265, Smart H.264+, H.264, MJPEG | | Streaming Capability | 3 streams | | Resolution | 1080p (1920 x 1080)
1.3 MP (1280 x 960)
720p (1280 x 720)
D1 (704 x 480)
VGA (640 x 480)
CIF (352 x 240) | | Frame Rate | Main Stream: 1080p or 720p at 60 fps
Sub Stream 1: D1 at 60 fps
Sub Stream 2: 1080p at 30 fps | | Bit Rate Control | CBR, VBR | | Bit Rate | H.265: 14 to 5632 Kbps
H.264: 24 to 9472 Kbps | | Day/Night | Auto (ICR), Color, B&W | | BLC | BLC, HLC, True WDR (120 dB) | | White Balance | Auto, Natural, Street Lamp, Outdoor, Manual | | Gain Control | Auto, Manual | | Noise Reduction | 3D-DNR | | Motion Detection | Off, On (4 Zone, Rectangle) | | Region of Interest | Off, On (4 Zone) | | Smart IR | Support | | Digital Zoom | 16x | | Image Flip | 0°, 90°, 180°, 270° | | Mirror | Off, On | | Privacy Masking | Off, On (4 areas, rectangle) | | | | Compression | G.711a, G.711Mu, AAC, G.726 | | | | Ethernet | RJ45 (10/100 Base-T) | | Protocol | HTTP, HTTPs, TCP, ARP, RTSP, RTP, UDP, SMTP, FTP, DHCP, DNS, DDNS, PPPOE, IPv4/v6, QoS, UPnP, NTP, Bonjour, 802.1x, Multicast, ICMP, IGMP, SNMP | | Interoperability | ONVIF, PSIA, CGI | | Streaming Method | Unicast, Multicast | | Max. User Access | 10 Users / 20 Users | | Edge Storage | NAS
Local PC for instant recording
microSD Card, maximum 128 GB (available separately) | | Web Viewer | IE, Firefox, Safari | | Management Software | Smart PSS, DSS | | Mobile Operating Systems | iOS, Android | | | | Safety | UL60950-1 | | Electromagnetic Compatibility | FCC Part 15 Subpart B | | | | Audio Interface | Built-in microphone | | | | Power Supply | 12 VDC, PoE (802.3af, Class 0) | | Power Consumption | <4.5 W | | | | Operating Conditions | -22 to +140° F (-30 to +60° C), Less than 95% RH | | Storage Conditions | -22 to +140° F (-30 to +60° C), Less than 95% RH | | Ingress protection | IP67 | | Vandal Resistance | IK10 | | | | Casing | Metal | | Dimensions | 4.17 x 1.98" (106 x 50.3 mm) | | Weight | 0.88 lb (0.4 kg) | | | | Package Weight | 1.045 lb | | Box Dimensions (LxWxH) | 5.6 x 5.45 x 4.55" |
