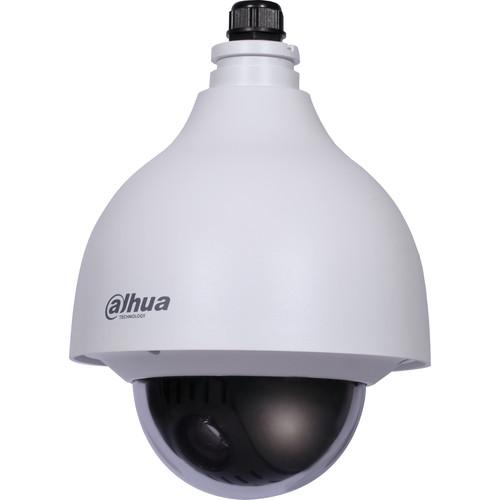

User Manual for Dahua Technology Pro Series 2MP Outdoor PTZ Dome Network Camera Click to enlarge the picture
Contents of the user manual for the Dahua Technology Pro Series 2MP Outdoor
- Product category: Wired IP Cameras Dahua Technology
- Brand: Dahua Technology
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Dahua Technology Wired IP Cameras
|
User manual for the Dahua Technology Pro Series 2MP Outdoor contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Dahua Technology product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Dahua Technology user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Dahua Technology product will considerably shorten its lifespan!
|
Product description The Pro Series 2MP Outdoor PTZ Dome Network Camera from Dahua Technology has a 1/2.7" progressive scan CMOS sensor to capture 1920 x 1080 resolution video at up to 30 fps. Its 5.1-61.2mm varifocal lens has a 59.3-5.2° field of view to monitor both indoor and outdoor areas and can be easily adjusted thanks to the camera's PTZ functionality. Pan from 0 to 360°, tilt from -2 to 90°, and zoom up to 12x to monitor a specific area or subject. PoE connectivity makes setup simple by supplying a power and data connection over a single Ethernet cable.
Equipped with Intelligent Video System (IVS) analytics, this camera has the ability to detect and analyze moving and idle objects, tripwire crossing, and faces. The camera is housed in an IP66- and IK10-rated enclosure for protection against dust, water, and impact, making it suitable for outdoor use and in high-risk environments. - 1/2.7" progressive scan CMOS sensor captures 2MP video at up to 30 fps
- IR cut filter helps the camera produce clear images in low-light scenes
- Wide Dynamic Range up to 120 dB allows the camera to compensate for overly bright or dark environments to produce accurate images
- 5.1-61.2mm lens has a 59.3-5.2° field of view
- Pan, tilt, and zoom for remote adjustments
- Built-in IVS for advanced analytics and detection
- IP66- and IK10-rated for outdoor use and vandal resistance
UPC: 816116020654 In the Box Dahua Technology Pro Series 2MP Outdoor PTZ Dome Network Camera Wall Mount Bracket wqqtvcqwrfqbeczcfftbrrrys Mount Adapter for Dome Camera (2.3 x 2.1") 24 VAC, 1.5 A Power Supply Limited 5-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Dahua Technology Pro Series 2MP Outdoor PTZ Dome Network Camera in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersDahua Technology DH-SD40A212TN-HNI Specs | | | Image Sensor | 2 MP 1/2.7" progressive scan CMOS sensor | | Effective Pixels (H x V) | 1920 x 1080 | | RAM | 256 MB | | ROM | 128 MB | | Minimum Illumination | Color: 0.05 lux at f/1.6
B&W: 0.005 lux at f/1.6 | | S/N Ratio | >55 dB | | | | Focal Length | 5.1-61.2mm | | Maximum Aperture | f/1.6-3.0 | | Field of View | Horizontal: 59.3-5.2° | | Optical Zoom | 12x | | Focus Control | Auto, manual | | Close Focus Distance | 3.9-39" (100-1000 mm) | | | | Pan / Tilt | Pan: 0 to 360° endless
Tilt: -2 to 90°
Auto-Flip: 180° | | Manual Control Speed | Pan: 0.1 to 300° per sec
Tilt: 0.1 to 120° per sec | | Preset Speeds | Pan: 300° per sec
Tilt: 200° per sec | | Presets | 300 | | PTZ Mode | 5 pattern, 8 tour, auto pan, auto scan | | Setup | Speed: User-oriented focal length/speed adaptation | | Power-Up Action | Auto restore to previous PTZ and lens status after power failure | | Idle Motion | Activate preset, scan, tour, pattern if there is no command in the specified period | | Protocol | DH-SD | | | | Compression | H.264+, H.264, and MJPEG | | Streaming Capability | 3 streams | | Resolution | 1080p (1920 x 1080), 720p (1280 x 720), D1 (704 x 480), CIF (352 x 240) | | Frame Rate | Main Stream: 1080p/D1 at 30 fps, 720p at 60 fps
Sub Stream 1: D1/CIF at 30 fps
Sub Stream 2: 720p/D1/CIF at 30 fps | | Bit Rate Control | CBR, VBR | | Bit Rate | Smart H.264+/H.264: 448 to 8192 kbps
MJPEG: 5120 to 10,240 kbps | | Day/Night | Auto (ICR), color, B&W | | Backlight Compensation | BLC, HLC, WDR (120 dB) | | White Balance | Auto, ATW, indoor, outdoor, manual | | Gain Control | Auto, manual | | Noise Reduction | Ultra DNR (2D, 3D) | | Motion Detection | Supported | | Region of Interest | Supported | | Defog | Supported | | Digital Zoom | 16x | | Image Flip | Flip: 180° | | Privacy Masking | Up to 24 areas | | | | Compression | G.711a, G.711u (32 kbps), PCM (128 kbps) | | Interface | 1 x input, 1 x output | | | | Interface | 2 x inputs, 1 x output | | | | Ethernet | RJ45 (10/100Base-T) | | Protocol | IPv4, IPv6, HTTP, HTTPS, SSL, TCP, IP, UDP, UPnP, ICMP, IGMP, SNMP, RTSP, RTP, SMTP, NTP, DHCP, DNS, PPPoE, DDNS, FTP, IP filter, QoS, Bonjour, 802.1x | | Compatibility | ONVIF, PSIA, CGI | | Streaming Method | Unicast, multicast | | Users | 20 | | Edge Storage | microSD card up to 128 GB
NAS, local computer | | Web Viewer | Internet Explorer 10, Google Chrome, Mozilla Firefox, Apple Safari | | Management Software | Smart PSS, DSS | | Mobile OS Support | iOS, Android, and Windows Phone | | | | Detection | Tripwire, intrusion, abandoned object, missing object, and face detection | | | | Certifications | CE: EN55032, EN55024, EN50130-4
FCC: Part15 subpartB, ANSI C63.4- 2014
UL: UL60950-1+CAN, CSA C22.2,No.60950-1 | | Power Supply | 24 VAC, 1.5 A (±10%), PoE+ (802.3at) | | Maximum Power Consumption | 12 W
With Heater On: 22 W | | Operating Temperature | -40 to 140°F (-40 to 60°C)
Start-up: -31°F (-35°C) | | Operating Humidity | <90% RH | | IP Rating | IP66 | | IK Rating | IK10 | | Casing Material | Metal | | Dimensions | 7.3 x 9.2" (186 x 234 mm) | | Weight | 5.1 lb (2.3 kg) | | | | Package Weight | 9.915 lb | | Box Dimensions (LxWxH) | 13.8 x 10.1 x 10.0" |
