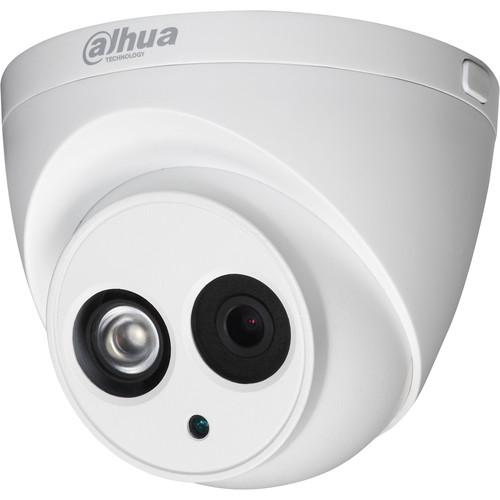

User Manual for Dahua Technology Pro Series 2MP Outdoor Turret Camera with 3.6mm Lens and Night Vision Click to enlarge the picture
Contents of the user manual for the Dahua Technology Pro Series 2MP Outdoor
- Product category: Wired Analog & HD Cameras Dahua Technology
- Brand: Dahua Technology
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Dahua Technology Wired Analog & HD Cameras
|
User manual for the Dahua Technology Pro Series 2MP Outdoor contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Dahua Technology product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Dahua Technology user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Dahua Technology product will considerably shorten its lifespan!
|
Product description Keep an eye on a medium-sized outdoor area with the Pro Series 2MP Outdoor Turret Camera with 3.6mm Lens and Night Vision from Dahua Technology. Its 3.6mm lens has a 90° horizontal field of view and features a 2MP 1/2.7" progressive scan CMOS sensor to capture 1920 x 1080 resolution video at up to 30 fps. The IR cut filter and built-in IR LED allow it to produce clear images of objects in complete darkness from up to 165' away. The camera is housed in an IP67-rated enclosure for protection against dust and water. - 1/2.7" progressive scan CMOS sensor captures 1080p video at up to 30 fps
- Night vision up to 165' in complete darkness
- 3.6mm lens has a 90° field of view to monitor a medium-sized outdoor area
- Wide dynamic range (120 dB) and 3D digital noise reduction help produce clear images in varying lighting conditions
- IP67-rated enclosure for outdoor use
In the Box Dahua Technology Pro Series 2MP Outdoor Turret Camera with 3.6mm Lens and Night Vision Limited 3-Year Warranty Brochure PDF 270kb Table of Contents
|
Upload User Manual
Have you got an user manual for the Dahua Technology Pro Series 2MP Outdoor Turret Camera with 3.6mm Lens and Night Vision in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersDahua Technology DH-HAC-HDW22A1EN 3.6MM Specs | | | Image Sensor | 2.1 MP 1/2.7" progressive scan CMOS sensor | | Effective Pixels (H x V) | 1928 x 1088 | | Electronic Shutter | 1/3 to 1/300,000 sec | | Minimum Illumination | Color: 0.03 lux at f/2.0
IR LEDs On: 0 lux | | S/N Ratio | >65 dB | | Number of IR LEDs and Range | 1 x IR LED, up to 165' (50 m) with Smart IR | | Day/Night | Auto (ICR) | | IR LED Control | Auto | | | | Type | Fixed lens, fixed iris | | Lens Mount Type | Board-in | | Lens | 3.6mm | | Maximum Aperture | f/2.1 | | Field of View | Horizontal: 90° | | Close Focus Distance | 2.36" (60 mm) | | | | Adjustments | Pan: 0-360°
Tilt: 0-70°
Rotation: 0-360° | | | | Resolution | 1080p (1920 x 1080) | | Frame Rate | 30 fps at 1080p | | Video Output | 1 x BNC HD-CVI output
1 x BNC CVBS output | | Backlight Compensation | BLC | | White Balance | AWB | | Gain Control | AGC | | Digital Noise Reduction | 2D/3D-DNR | | Wide Dynamic Range | Up to 120 dB | | Smart IR | Auto | | | | Certification | FCC, UL | | Power Supply | 12 VDC ±25% | | Maximum Power Consumption | 5.5 W with 12 VDC with IR LEDs on | | Operating Temperature | -22 to 140°F (-30 to 60°C) | | Operating Humidity | <90% RH | | Storage Temperature | -22 to 140°F (-30 to 60°C) | | Storage Humidity | <90% RH | | IP Rating | IP67 | | Casing | Aluminum (inner core) and PC (cover) | | Dimensions (Ø x H) | 4.3 x 3.8" (110 x 81 mm) | | Weight | 0.7 lb (0.3 kg) | | | | Package Weight | 1.05 lb | | Box Dimensions (LxWxH) | 6.2 x 6.1 x 5.4" |
