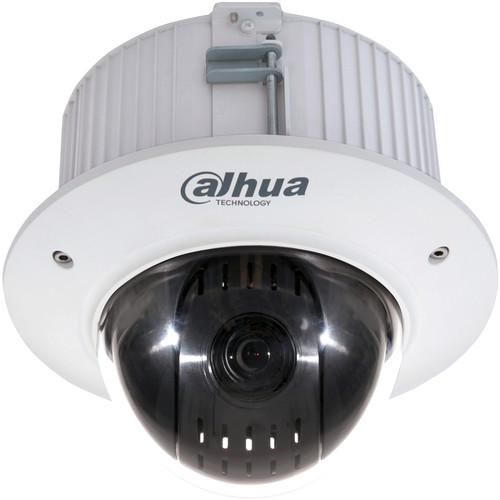

User Manual for Dahua Technology Pro Series 2MP Vandal-Resistant Network PTZ Camera with 5.1-61.2mm Lens Click to enlarge the picture
Contents of the user manual for the Dahua Technology Pro Series 2MP Vandal-Resistant
- Product category: Wired IP Cameras Dahua Technology
- Brand: Dahua Technology
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Dahua Technology Wired IP Cameras
|
User manual for the Dahua Technology Pro Series 2MP Vandal-Resistant contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Dahua Technology product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Dahua Technology user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Dahua Technology product will considerably shorten its lifespan!
|
Product description The Pro Series 2MP Vandal-Resistant Network PTZ Camera from Dahua Technology features optical zoom and pan/tilt/zoom, so it can provide a wide monitoring range with precise detail. The camera delivers 1920 x 1080 resolution at 30 fps with 12x optical zoom. Equipped with Intelligent Video System (IVS) analytics, this camera has the ability to detect and analyze moving and idle objects, tripwire crossing, and faces. - Smart H.264+
- Smart H.264+ is the optimized implementation of H.264. The Smart H.264+ encoding platform includes a scene adaptive encoding strategy, dynamic GOP, dynamic ROI, flexible multi-frame reference structure, and intelligent noise reduction, providing a savings of up to 70% on bandwidth and storage when compared with standard H.264.
- Wide Dynamic Range
- Embedded with WDR (Wide Dynamic Range) technology, vivid pictures are achieved even in intense contrast lighting conditions. For applications with both bright and low lighting conditions that change quickly, true WDR (120 dB) optimizes both the bright and dark areas of a scene at the same time to provide usable video.
- Environmental
- With a temperature range of -22 to 140°F, the camera is designed for extreme temperature environments. The camera complies with the IK10 impact rating making it capable of withstanding the equivalent of 120 lb of force.
- Protection
- The camera suits even the harsh conditions for outdoor applications. Its 2kV lightning rating indicates protection against the effects of lightning.
- Interoperability
- The camera conforms to the ONVIF (Open Network Video Interface Forum) and PSIA (Physical Security Interoperability Alliance) specifications, ensuring interoperability between network video products regardless of manufacturer.
UPC: 816116022986 In the Box Dahua Technology Pro Series 2MP Vandal-Resistant Network PTZ Camera with 5.1-61.2mm Lens Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Dahua Technology Pro Series 2MP Vandal-Resistant Network PTZ Camera with 5.1-61.2mm Lens in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersDahua Technology Lite Series Specs | Image Sensor | 1/2.7" CMOS | | Effective Pixels | 1920 x 1080, 2 MP | | RAM | 256 MB | | ROM | 128 MB | | Scanning System | Progressive | | Minimum Illumination | Color: 0.05 lux at f/1.6
B&W: 0.005 lux at f/1.6 | | S/N Ratio | More than 55 dB | | Focal Length | 5.1-61.2mm | | Maximum Aperture | f/1.6 to 3.0 | | Angle of View | H: 59.3° to 5.2° | | Optical Zoom | 12x | | Focus Control | Auto/Manual | | Close Focus Distance | 100 to 1000mm | | Pan & Tilt Range | Pan: 0 to 360° endless
Tilt: -2 to 90°, auto flip 180° | | Manual Control Speed | Pan: 0.1 to 300°/s
Tilt: 0.1 to 120°/s | | Preset Speeds | Pan: 300°/s
Tilt: 200°/s | | Presets | 300 | | PTZ Mode | 5 Pattern, 8 Tour, Auto Pan, Auto Scan | | Speed | Human-oriented focal length / speed adaptation | | Power-Up Action | Auto restore to previous PTZ and lens status after power failure | | Idle Motion | Activate Preset/Scan/Tour/Pattern if there is no command in the specified period | | Protocol | DH-SD | | Compression | H.264+/H.264/MJPEG | | Streaming Capability | 3 Streams | | Resolution | 1080p (1920 x 1080) / 720p (1280 x 720) / D1 (704 x 576 / 704 x 480) / CIF (352 x 288 / 352 x 240) | | Frame Rate | Main Stream: 1080p/D1 (1 to 25/30 fps), 720p (1 to 50/60 fps)
Sub Stream1: D1/CIF (1 to 25/30 fps)
Sub stream2: 720p/D1/CIF (1 to 25/30 fps) | | Bit Rate Control | CBR/VBR | | Bit Rate | H.264+/H.264: 448 to 8192 kb/s, MJPEG: 5120 to 10,240 kb/s | | Day/Night | Auto (ICR) / Color / B&W | | Backlight Compensation | BLC / HLC / WDR (120 dB) | | White Balance | Auto, ATW, Indoor, Outdoor, Manual | | Gain Control | Auto/Manual | | Noise Reduction | Ultra DNR (2D/3D) | | Motion Detection | Support | | Region of Interest | Support | | Detection | Tripwire, intrusion, abandoned object, missing object, face | | Defog | Support | | Digital Zoom | 16x | | Flip/Mirror | 180° | | Privacy Masking | Up to 24 areas | | Audio Compression | G.711a/G.711mu/PCM | | Ethernet | RJ45 (10/100Base-T) | | Protocol | IPv4/IPv6, HTTP, HTTPS, SSL, TCP/IP, UDP, UPnP, ICMP, IGMP, SNMP, RTSP, RTP, SMTP, NTP, DHCP, DNS, PPPOE, DDNS, FTP, IP Filter, QoS, Bonjour, 802.1x | | Interoperability | ONVIF, PSIA, CGI | | Streaming Method | Unicast / Multicast | | Max. User Access | 20 users | | Edge Storage | NAS (Network Attached Storage), local PC for instant recording, 128 GB | | Web Viewer | IE10/Google/Firefox/Safari | | Management Software | Smart PSS, DSS | | Smart Phone | iPhone, iPad, Android, Windows Phone | | Certifications | CE: EN55032/EN55024/EN50130-4
FCC: Part15 subpartB, ANSI C63.4- 2014
UL: UL60950-1+CAN/CSA C22.2,No.60950-1 | | Audio Interface | 1/1 | | Alarm | 2/1 | | Power Supply | 24 VAC / 1.5 A (±10%), PoE+ (802.3at) | | Power Consumption | 12 W | | Operating Conditions | -22 to 140°F / -30 to 60°C
Less than 90% RH | | Vandal Resistance | IK10 | | Casing | Metal | | Dimensions | Ø7.8 x 6.2" / Ø198 x 158 mm | | Weight | 5.1 lb / 2.3 kg |
