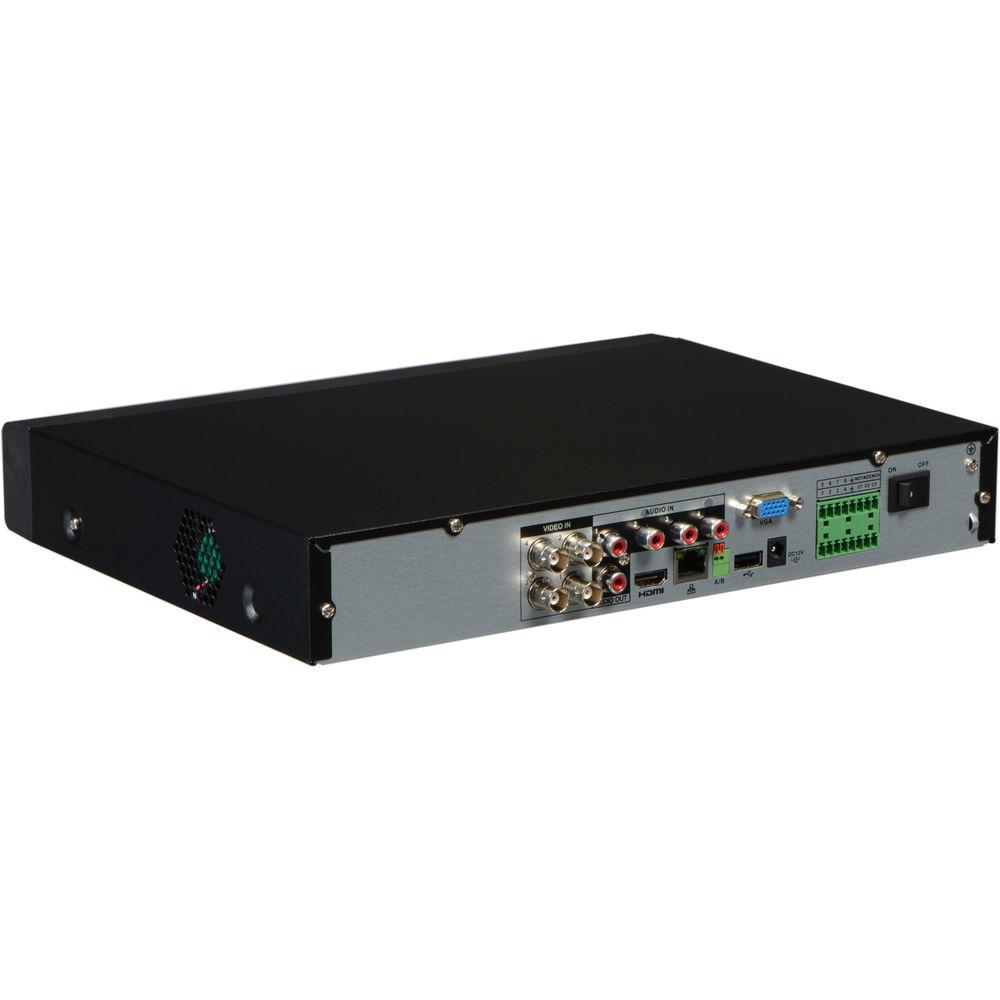

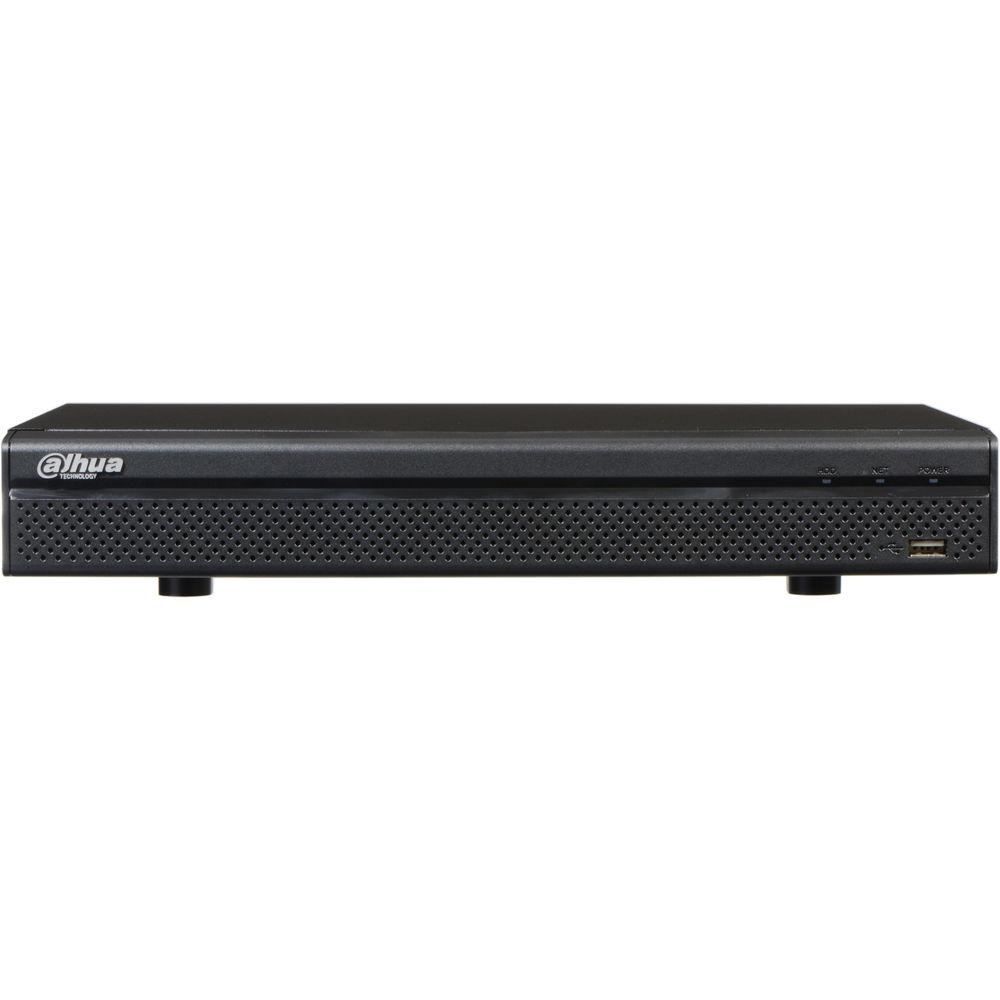

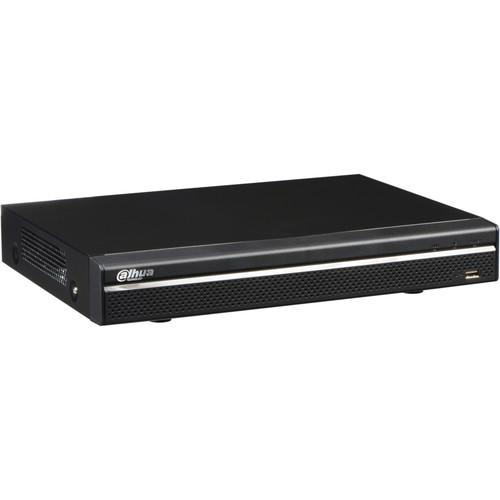

User Manual for Dahua Technology Pro Series 4-Channel Penta-brid 1080p Mini DVR with No HDD Click to enlarge the picture
Contents of the user manual for the Dahua Technology Pro Series 4-Channel Penta-brid
- Product category: Digital Video Recorders (DVRs) Dahua Technology
- Brand: Dahua Technology
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Dahua Technology Digital Video Recorders (DVRs)
 |
User manual for the Dahua Technology Pro Series 4-Channel Penta-brid contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Dahua Technology product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Dahua Technology user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Dahua Technology product will considerably shorten its lifespan!
|
Product description The Pro Series 4-Channel Penta-brid 1080p Mini DVR with No HDD from Dahua Technology lets you upgrade existing video surveillance systems while leveraging existing networks, cabling, and cameras. This XVR utilizes Penta-brid access technology to seamlessly record video from HDCVI, AHD, TVI, CVBS, and IP sources simultaneously. The XVR offers advanced options such as built-in motion detection algorithms, alarm triggers, and customized recording modes. XVR technology is a suitable solution for actively monitoring and recording video feeds in a wide range of environments including public venues, retail stores, transportation hubs and access ways, personal property and homes, and educational institutions. The Smart H.264+ video compression standard can reduce bit rate and storage requirements by up to 70% without having to invest in new cameras. The XVR automatically recognizes the incoming signals of each attached camera without any setup. The XVR supports 5MP resolution (2560 x 1920) on IP camera inputs for recording and live viewing. The XVR offers a variety of configurable scheduling options that save HDD space and active monitoring time. Smart Search allows an operator to specify a region in the playback video to search for a motion detection event, saving time and manpower. -
- Embedded processor
- Smart H.264+ / H.264 dual-stream video compression
- Offers 720p (real-time) and 1080p (15 fps) resolutions
- 4 HDCVI/AHD/TVI/CVBS channels and up to additional 2 channels of IP inputs
- Maximum 24 Mb/s incoming bandwidth
- Built-in smart search
UPC: 816116025291 In the Box Dahua Technology Pro Series 4-Channel Penta-brid 1080p Mini DVR with No HDD Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Dahua Technology Pro Series 4-Channel Penta-brid 1080p Mini DVR with No HDD in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersDahua Technology X21A1E Specs | | | Main Processor | Embedded processor | | Operating System | Embedded Linux | | Internal HDD | No HDD | | | | Interface | 1 x HDMI
1 x VGA | | Resolution | 1920 x 1080, 1280 x 1024, 1280 x 720, 1024 x 768 | | Multi-Screen Display | 1/4/6 | | On-Screen Display | Camera title, time, video loss, camera lock, motion detection, and recording | | | | Triggering | Recording, PTZ, tour, alarm out, video push, email, FTP, snapshot, buzzer, and screen tips | | Video Detection | Motion detection
MD Zones: 396 (22 x 18)
Video loss
Tampering
Diagnosis | | Alarm Input | 8 | | Relay Output | 3 | | | | Playback | 1/4 | | Search Modes | Time / date, alarm, motion detection, and exact search (accurate to 1 second) | | Playback Function | Play, pause, stop, rewind, fast play, slow play, next file, previous file, next camera, previous camera, full screen, repeat, shuffle, backup selection, and digital zoom | | Backup Modes | USB device, network | | | | Internal HDD | 1 x SATA port, up to 6 TB capacity | | HDD Mode | Single | | | | USB | 2 x USB 2.0 Ports | | RS-485 | 1 x Port, for PTZ Control | | | | Third Party Software | Dahua, Arecont Vision, Axis, Bosch, Brickcom, Canon, CP Plus, Dynacolor, Honeywell, Panasonic, Pelco, Samsung, Sanyo, Sony, Videotec, Vivotek, and others | | | | Camera Inputs | Analog:
4; 1080p resolution support at 15 fps per channel
IP:
4+2; up to 5 MP resolution support per channel | | Audio Connections | Audio In: 4
Audio Out: 1 | | Two-way Audio | Reuse audioiIn (channel 1) / out, RCA | | | | Compression | Smart H.264+/H.264 | | Resolution | 1080p, 720p, 960H, D1, HD1, BCIF, CIF, QCIF | | Recording Rate | Main Stream:
1080p at 1 to 15 fps or 1080N, 720p, 960H, D1, HD1, BCIF, CIF, QCIF at 1 to 30 fps
Sub Stream:
D1, CIF, QCIF at 1 to 30 fps | | Bit Rate | 1 to 6144 kb/s per channel | | Recording Modes | Manual, schedule (regular, continuous), motion detection (Video Detection: motion detection, video loss, tampering), alarm, and stop | | Record Length | 1 to 60 minutes (Default: 60 minutes)
Pre-Record: 1 to 30 sec
Post-Record: 10 to 300 sec | | | | Interface | 1 x RJ45 port (100M) | | Network Function | HTTP, TCP/IP, IPv4/IPv6, UPnP, RTSP, UDP, SMTP, NTP, DHCP, DNS, IP filter, PPPoE, DDNS, FTP, Alarm Server, IP Search (supports Dahua IP cameras, DVRs, NVS) | | Maximum User Access | 128 users | | Operating System | iOS and Android | | Interoperability | ONVIF 2.4.1, CGI conformant | | | | Power Supply | 12 VDC, 2 A | | Power Consumption | <10 W (without HDD) | | | | Operating Conditions | 14 to 131°F (-10 to 55°C), 86 to 106 kpa | | Storage Conditions | 32 to 122°F (0 to 50°C), | | Humidity | 0 to 90% RH | | | | Installation | Desktop installation | | Dimensions | Mini 1U, 12.8 x 10 x 2.2" (32.5 x 26 x 5.5 cm) | | Weight | 3.3 lb (1.5 kg), without HDD | | | | Package Weight | 4.2 lb | | Box Dimensions (LxWxH) | 14.6 x 12.1 x 4.7" |
