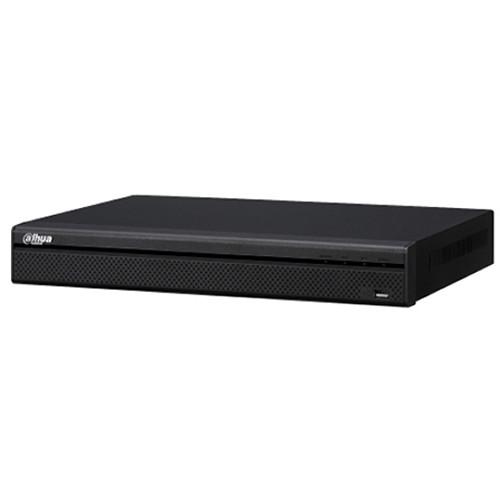

User Manual for Dahua Technology Pro Series 4-Channel Tribrid 4MP DVR with 3TB HDD Click to enlarge the picture
Contents of the user manual for the Dahua Technology Pro Series 4-Channel Tribrid
- Product category: Digital Video Recorders (DVRs) Dahua Technology
- Brand: Dahua Technology
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Dahua Technology Digital Video Recorders (DVRs)
|
User manual for the Dahua Technology Pro Series 4-Channel Tribrid contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Dahua Technology product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Dahua Technology user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Dahua Technology product will considerably shorten its lifespan!
|
Product description Record video from HD-CVI, CVBS, or IP cameras with the Pro Series 4-Channel Tribrid 4MP DVR with 3TB HDD from Dahua Technology. This DVR has four BNC video inputs to record up to 4MP video from up to four cameras, including network cameras when using a PoE switch (available separately). Dual streaming compression in H.264 and H.264+ ensures high-quality recording and playback. HDMI and VGA video outputs allow you to connect a monitor (available separately) to view a live feed locally. - Up to 4MP recording resolution for high-quality playback
- Smart H.264+ reduces bit rate and storage requirements
- HD-CVI and CVBS auto-detect functionality recognizes connected cameras
- Up to 5MP recording when using IP cameras
- Motion detection and scheduled recording helps to reduce storage requirements
- Smart Search features make searching for specific video quicker and easier
UPC: 816116025161 In the Box Dahua Technology Pro Series 4-Channel Tribrid 4MP DVR with 3TB HDD Power Cable Mouse Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Dahua Technology Pro Series 4-Channel Tribrid 4MP DVR with 3TB HDD in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersDahua Technology C52A1N3 Specs | | | Main Processor | Embedded processor | | Operating System | Embedded Linux | | | | Interface | 1 x HDMI (up to 3840 x 2160)
1 x VGA | | Resolution | 3840 x 2160, 1920 x 1080, 1280 x 1024, 1280 x 720, 1024 x 768 | | Multi-Screen Display | 1, 4, 6 | | On-Screen Display | Camera title, time, video loss, camera lock, motion detection, and recording | | | | Event Trigger | Recording, PTZ, tour, alarm out, video push, email, FTP, snapshot, buzzer, and screen tips | | Video Detection | Motion detection
MD Zones: 396 (22 x 18), video loss, tampering, and diagnosis | | | | Playback | 1, 4 | | Search Modes | Time/date, alarm, motion detection, and exact search (accurate to 1 sec) | | Playback Function | Play, pause, stop, rewind, fast play, slow play, next file, previous file, next camera, previous camera, full screen, repeat, shuffle, backup selection, and digital zoom | | Backup Modes | USB device or network | | | | Internal HDD | 3 TB preinstalled, supports up to 12 TB (2 x 6 TB) | | HDD Mode | Single | | | | USB | 1 x USB 2.0
1 x USB 3.0 | | RS-485 | 1 x port for PTZ control (PTZ camera available separately and required for functionality) | | | | Support | Third Party: Dahua, Arecont Vision, Axis, Bosch, Brickcom, Canon, CP Plus, Dynacolor, Honeywell, Panasonic, Pelco, Samsung, Sanyo, Sony, Videotec, Vivotek, and others | | | | Camera Input | 4 x BNC (HD-CVI, CVBS) | | IP Camera Inputs | 2 channels, each channel up to 5 MP (via optional PoE switch) | | Audio Input/Output | 1 x input, 1 x output | | Audio Communication | Two-way via RCA | | | | Compression | H.264 and Smart H.264+ | | Resolution | 5 MP (IP cameras only), 4 MP, 1080p, 720p, 960H, D1, HD1, BCIF, CIF, QCIF | | Recording Rate | Main Stream: 4 MP at 1-15 fps or 1080p, 720p, 960H, D1, HD1, BCIF, CIF, QCIF at 1-25/30 fps
Sub Stream: D1, CIF, QCIF at 1-25/30 fps | | Bit Rate | 32 to 6144 kbps per channel | | Recording Modes | Manual, schedule (regular, continuous), motion detection (Video Detection: motion detection, video loss, tampering), alarm, and stop | | Record Time | 1 to 60 min (default 60 minutes)
Pre-Record: 1 to 30 sec
Post-Record: 10 to 300 sec | | | | Interface | 1 x RJ45 port (1000M) | | Network Function | HTTP, TCP/IP, IPv4/IPv6, UPnP, RTSP, UDP, SMTP, NTP, DHCP, DNS, IP filter, PPPoE, DDNS, FTP, alarm server, P2P, IP search (support Dahua IP camera, DVR, NVS) | | Maximum User Access | 128 users | | Mobile OS Support | iOS and Android | | Interoperability | ONVIF 2.4.1, CGI | | | | Power Supply | 12 VDC, 4 A | | Power Consumption | < 15 W (without HDD) | | Operating Temperature | 14 to 131°F (-10 to 55°C) | | Pressure Level | 86 to 106 kPa | | Storage Temperature | 32 to 122°F (0 to 50°C) | | Storage Humidity | 0 to 90% RH | | Installation | Desktop installation | | Rack Compatibility | 1U | | Dimensions | 14.8 x 11.2 x 2.2" (375 x 285 x 55 mm) | | Weight | 5.2 lb (2.35 kg) without HDD |
