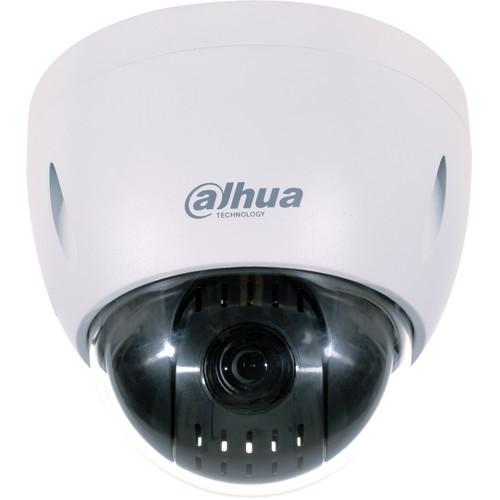

User Manual for Dahua Technology Pro Series 42212TNI 2MP Outdoor PTZ Network Mini Dome Camera Click to enlarge the picture
Contents of the user manual for the Dahua Technology Pro Series 42212TNI 2MP
- Product category: Wired IP Cameras Dahua Technology
- Brand: Dahua Technology
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Dahua Technology Wired IP Cameras
|
User manual for the Dahua Technology Pro Series 42212TNI 2MP contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Dahua Technology product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Dahua Technology user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Dahua Technology product will considerably shorten its lifespan!
|
Product description The Pro Series 42212TNI 2MP Outdoor PTZ Network Mini Dome Camera from Dahua Technology has a 1/2.8" STARVIS progressive scan CMOS sensor to capture 1920 x 1080 resolution video at 30 fps. Its 5.3-64mm varifocal lens delivers a 58.2-4.8° horizontal field of view. PTZ functionality offers endless panning, a -2 to 90° tilting range, and 12x optical zoom. Two-way audio is possible thanks to an audio input and output. An onboard memory card slot supports microSD cards up to 128GB. microSD cards are available separately. Integrated PoE technology simplifies connectivity by enabling the transfer of power and data through a single cable.
This camera is housed in an IP66- and IK10-rated metal enclosure that is suitable for outdoor use in areas at risk of vandalism. - Built-in IVS (Intelligent Video System) analytic algorithms deliver intelligent functions to monitor a scene for tripwire violations, intrusion detection, and abandoned or missing objects, as well as support for tamper & face detection
- Starlight technology for low-light sensitivity
- H.265, H.264, and MJPEG video compression
- Unicast and multicast streaming methods
- IR cut filter for day and night functionality
- Backlight compensation, highlight compensation, and 120 dB true wide dynamic range
- White balance modes include auto, ATW, indoor, outdoor, and manual
- Auto and manual gain control
- Auto and manual focus control
- Privacy masking for up to 24 areas
- Two alarm inputs and one alarm output
- 100 to 1000mm close focus distance
- Compatible with Internet Explorer 10, Firefox, Safari, iOS, and Android
- Local PC for instant recording and NAS edge storage
- IP66- and IK10-rated metal enclosure that is suitable for outdoor use in areas at risk of vandalism
- PTZ Functionality
-
- Endless panning
- -2 to 90° tilt range
- 180° auto flip
- 0.1 to 300°/s manual pan control speed
- 0.1 to 120°/s manual tilt control speed
- 300 presets
- 300°/s pan preset speed
- 200°/s tilt preset speed
- 5 pattern, 8 tour, auto pan, and auto scan PTZ modes
- Proportional pan/tilt speed to zoom ratio
- Auto restore to previous PTZ and lens status after power failure
- Idle motion includes activate preset, scan, tour, and pattern if there is no command in the specified area
- DH-SD protocol
- DORI Distance
-
- 2897' / 883m (detect / 8 ppf)
- 1158' / 353m (observe / 19 ppf)
- 581' / 177m (recognize / 38 ppf)
- 289' / 88m (identify / 76 ppf)
UPC: 819290021554 In the Box Dahua Technology Pro Series 42212TNI 2MP Outdoor PTZ Network Mini Dome Camera 3 x Expansion Bolts 3 x Screws 3 x Washers Power Adapter Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Dahua Technology Pro Series 42212TNI 2MP Outdoor PTZ Network Mini Dome Camera in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersDahua Technology Pro Series Specs | | | Sensor | 2 MP 1/2.8" CMOS | | Focal Length | 5.3 to 64mm | | Maximum Aperture | f/1.6 - f/4.4 | | Zoom | Optical: 12x
Digital: 16x | | Lens Field of View | Horizontal: 58.2 to 4.8° | | IR Cut Filter | Mechanical | | Day/Night | Yes | | Minimum Illumination | Color: 0.005 Lux
B&W: 0.0005 Lux | | Shutter Speed | 1/30000 to 1 Seconds | | | | Streaming Resolution | 1920 x 1080 at 30 fps | | Supported Video Compression | H.264, H.265, MJPEG | | Multi-View Streaming | Yes, 3 Streams | | Automatic Gain Control | Yes | | | | Streaming | Two-Way | | Audio Formats | G.711, PCM | | External Audio Input | 3.5 mm | | External Audio Output | 3.5 mm | | | | Security | HTTPS, IEEE 802.1X, IP Address Filtering | | Supported Protocols | Bonjour, DDNS, DHCP, DNS, FTP, HTTP, ICMP, IGMP, IPv4/v6, NTP, PPPoE, QoS Layer 3 DiffServ, RTP, RTSP, SMTP, SNMP v1/v2c/v3 (MIB-II), SSL/TLS, TCP, UDP, UPnP | | | | Application Programming Interface (API) | ONVIF, PSIA, CGI | | Analytics | Tampering, Memory Card Error, Network Error, Unauthorized Access, Motion, Tripwire, Intrusion, Scene Change, Abandoned/Missing Object, Facial Detection | | Event Trigger | Yes | | Event Action | Recording, Notification, Alarm | | Data Streaming | Yes | | | | Mobile Operating Systems | iOS, Android | | | | Memory | 1024 MB RAM / 128 MB Flash | | Recording Media | microSD (Up to 128 GB) | | Pan/Tilt | Remote Pan: 360° at 300°/s
Remote Tilt: 92° (-2 to 90°) at 200°/s | | Alarm I/O | 2 / 1 | | I/O Connections | 1 x RJ45
1 x Power | | Video Management Software | Smart PSS, DSS | | Internal Storage | None | | External Storage Options | Local PC, NAS | | Power Source | AC, PoE 802.3at (30 W) | | Power Consumption | 12 W | | Material of Construction | Metal (Unspecified Type) | | Operating Temperature | -22 to 140°F / -30 to 60°C | | Operating Humidity | 0 to 90% | | IP Rating | IP66 | | IK Rating | IK10 | | Dimensions |
