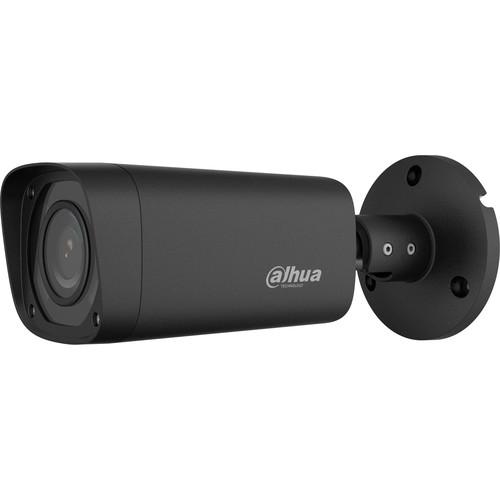

User Manual for Dahua Technology Pro Series 4MP HD-CVI Outdoor Bullet Camera with Night Vision Click to enlarge the picture
Contents of the user manual for the Dahua Technology Pro Series 4MP HD-CVI
- Product category: Wired Analog & HD Cameras Dahua Technology
- Brand: Dahua Technology
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Dahua Technology Wired Analog & HD Cameras
|
User manual for the Dahua Technology Pro Series 4MP HD-CVI contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Dahua Technology product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Dahua Technology user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Dahua Technology product will considerably shorten its lifespan!
|
Product description Keep an eye on a medium-sized outdoor area with the black Pro Series 4MP HD-CVI Outdoor Bullet Camera with Night Vision from Dahua Technology. Its 2.7-13.5mm varifocal lens has a 98-26° horizontal field of view for long-distance surveillance as well as close-up monitoring. The camera features a 4MP 1/3" progressive scan CMOS sensor to capture 2560 x 1440 resolution video at up to 30 fps. The IR cut filter and built-in IR LEDs allow it to produce clear images of objects in complete darkness from up to 197' away. The camera is housed in an IP67-rated enclosure for protection against dust and water, making it suitable for outdoor use. - 1/3" progressive scan CMOS sensor captures 4MP video at up to 30 fps
- Night vision up to 197' in complete darkness
- Motorized 2.7-13.5mm varifocal lens has a 98-26° field of view
- Wide dynamic range (120 dB) and 3D digital noise reduction help produce clear images in varying lighting conditions
- IP67-rated enclosure for outdoor use
UPC: 819290021523 In the Box Dahua Technology Pro Series 4MP HD-CVI Outdoor Bullet Camera with Night Vision (Black) Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Dahua Technology Pro Series 4MP HD-CVI Outdoor Bullet Camera with Night Vision in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersDahua Technology A42AC2Z-B Specs | | | Image Sensor | 4 MP 1/3" progressive scan CMOS sensor | | Effective Pixels (H x V) | 2688 x 1520 | | Electronic Shutter | 1/3 to 1/300,000 sec | | Minimum Illumination | Color: 0.01 lux at f/1.3
IR LEDs On: 0 lux | | S/N Ratio | >65 dB | | Number of IR LEDs and Range | 4 x IR LEDs, up to 197' / 60 m with Smart IR | | IR LED Control | Auto, manual | | | | Type | Motorized lens, fixed iris | | Lens Mount Type | Board-in | | Lens | 2.7-13.5mm | | Aperture | f/1.3 | | Field of View | Horizontal: 98-26° | | Focus Control | Auto, manual | | Close Focus Distance | 7.87" / 200 mm | | | | Adjustments | Pan: 0 to 360°
Tilt: 0 to 87°
Rotation: 0 to 360° | | | | Resolution | 4 MP (2560 x 1440), 1080p (1920 x 1080), 720p (1280 x 720) | | Frame Rate | 30 fps at 4 MP, 1080p, 720p | | Video Output | 1 x BNC HD-CVI output
1 x BNC CVBS output | | Maximum Video Transmission Range | RG-59/U Coax:
720p: 2625' / 800 m
1080p: 1640' / 500 m
4 MP: 1640 / 500 m
RG-6/U Coax:
720p: 3937' / 1200 m
1080p: 2625' / 800 m
4 MP: 2297' / 700 m
Cat 6 UTP (Balun required and available separately):
720p: 1476' / 450 m
1080p: 984' / 300 m
4 MP: 984' / 300 m | | Backlight Compensation | BLC, HLC, WDR | | Wide Dynamic Range | Up to 120 dB | | Gain Control | AGC | | Digital Noise Reduction | 2D/3D-DNR | | White Balance | Auto, manual | | Smart IR | Supported | | | | OSD Languages | Multi-language | | Power Supply | 24 VAC ±25%, 12 VDC ±25% | | Maximum Power Consumption | 15.4 W with 12 VDC and IR LEDs on | | Operating Temperature | -22 to 140°F / -30 to 60°C | | Operating Humidity | <90% RH | | Storage Temperature | -22 to 140°F / -30 to 60°C | | Storage Humidity | <90% RH | | IP Rating | IP67 | | Casing | Aluminum | | Certifications | UL60950-1+CAN/CSA C22.2 No.60950-1
FCC CFR 47 FCC Part 15 Subpart B
ANSI C63.4-2014 | | Dimensions | 8.4 x 3.6 x 3.6" / 213 x 90.4 x 90.4 mm | | Weight | 1.4 lb / 0.63 kg |
