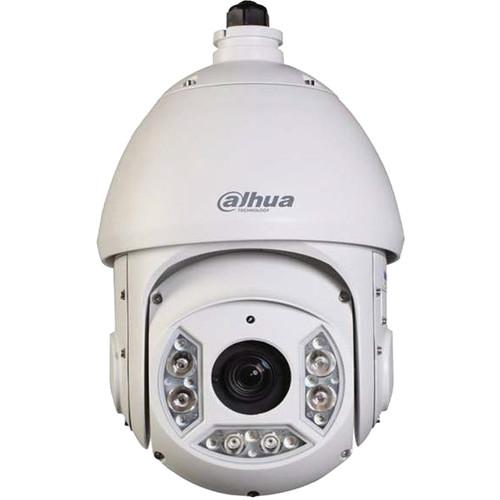

User Manual for Dahua Technology Pro Series 4MP Outdoor 30x PTZ Network Dome Camera with Night Vision Click to enlarge the picture
Contents of the user manual for the Dahua Technology Pro Series 4MP Outdoor
- Product category: Wired IP Cameras Dahua Technology
- Brand: Dahua Technology
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Dahua Technology Wired IP Cameras
|
User manual for the Dahua Technology Pro Series 4MP Outdoor contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Dahua Technology product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Dahua Technology user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Dahua Technology product will considerably shorten its lifespan!
|
Product description The Pro Series 4MP Outdoor 30x PTZ Network Dome Camera with Night Vision from Dahua Technology has a 1/3" progressive scan CMOS sensor to capture 2592 x 1520 resolution video at up to 30 fps. This PTZ camera's 4.5-135mm lens has a 30x optical zoom and a 60-2.2° field of view to focus in on specific subjects. The integrated IR LEDs around the lens allow the camera to produce clear images of objects at night from up to 328' away. Wide dynamic range up to 120 dB, 3D-DNR, and BLC enhance images in varying lighting conditions, while intelligent functions including tripwire, intrusion, abandoned/missing object detection, and face detection, provide added functionality. The camera is housed in an IP66-rated enclosure, making it suitable for outdoor use. - Captures 2592 x 1520 resolution video at up to 30 fps
- Six IR LEDs for night vision up to 328'
- PTZ functionality for 0 to 360° endless pan, -15 to 90° tilt, auto flip, and 30x optical zoom
- Two-way audio communication
- Intelligent Video System (IVS) with tripwire, intrusion, abandoned/missing object, and face detection
- RJ45 Ethernet connection with PoE for quick installation
- IP66-rated enclosure for protection against dust and water
UPC: 816116023044 In the Box Dahua Technology Pro Series 4MP Outdoor 30x PTZ Network Dome Camera with Night Vision Power Supply Wall Mount Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Dahua Technology Pro Series 4MP Outdoor 30x PTZ Network Dome Camera with Night Vision in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersDahua Technology 6C430UNI Specs | | | Image Sensor | 4 MP 1/3" progressive scan CMOS sensor | | Effective Pixels (H x V) | 2592 x 1520 | | RAM | 1024 MB | | ROM | 128 MB | | Minimum Illumination | Color: 0.05 lux at f/1.6
B&W: 0 lux at f/1.6 with IR LEDs on | | S/N Ratio | >55 dB | | IR Control | Auto, manual | | Number of IR LEDs and Range | 6 x IR LEDs, up to 328' (100 m) | | | | Focal Length | 4.5-135mm | | Maximum Aperture | f/1.6-4.4 | | Field of View | Horizontal: 60-2.2° | | Optical Zoom | 30x | | Focus Control | Auto, manual | | Close Focus Distance | 3.9 to 39.4" (100 to 1000 mm) | | | | Pan/Tilt | Pan: 0 to 360°
Tilt: -15 to 90°
Auto flip 180° | | Manual Control Speed | Pan: 0.1 to 160°/sec
Tilt: 0.1 to 120°/sec | | Preset Speeds | Pan: 240°/sec
Tilt: 200°/sec | | Preset | 300 | | PTZ Mode | 5 patterns, 8 tours, auto scan, and auto pan | | Setup | Speed Setup: Human-oriented focal length and speed adaptation | | Power-Up Action | Auto restore to previous PTZ and lens status after power failure | | Idle Motion | Activate preset, scan, tour, pattern if there is no command in the specified period | | Protocol | DH-SD, Pelco P/D (auto recognition) | | | | Compression | H.265, H.264, MJPEG | | Streaming | Triple streaming | | Resolution | 4 MP (2592 x 1520), 3 MP (2304 x 1296), 1080p (1920 x 1080), 720p (1280 x 720), D1 (704 x 480), CIF (352 x 240) | | Frame Rate | Main Stream: 4 MP, 3 MP at 30 fps, or 1080p, 1.3 at 60 fps
Sub Stream 1: D1, CIF at 30 fps
Sub Stream 2: 1080p, 1.3 MP, 720p at 30 fps | | Bit Rate Control | CBR, VBR | | Bit Rate | H.265/H.264: 448 to 8192 kbps
MJPEG: 5120 to 10,240 kbps | | Backlight Compensation | BLC, HLC | | Wide Dynamic Range | Up to 120 dB | | White Balance | Auto, ATW, indoor, outdoor, manual | | Gain Control | Auto, manual | | Digital Noise Reduction | Ultra DNR (2D/3D) | | Advanced Features | Motion detection, region of interest, electronic image stabilization (EIS), defog | | Digital Zoom | 16x | | Privacy Masking | Up to 24 areas | | | | Compression | G.711a, G.711Mu, AAC, G.722, G.726, G.729, MPEG2-L2 | | | | Functions | Tripwire, intrusion, abandoned object detection, missing object detection, face detection | | | | Ethernet | RJ45 10/100Base-T Ethernet | | Protocol | IPv4/IPv6, HTTP, HTTPS, SSL, TCP/IP, UDP, UPnP, ICMP, IGMP, SNMP, RTSP, RTP, SMTP, NTP, DHCP, DNS, PPPoE, DDNS, FTP, IP Filter, QoS, Bonjour, 802.1x | | Compatibility | ONVIF, PSIA, CGI | | Streaming Method | Unicast, multicast | | Users | 20 maximum | | Edge Storage | NAS, local computer | | Web Browser Support | Windows Internet Explorer 10, Mozilla Firefox, Apple Safari | | Management Software | Smart PSS, DSS | | Mobile OS Support | iOS, Android, Windows Phone | | | | Video | 1 x BNC | | Audio | 1 x input, 1 x output | | Control | 1 x RS-485 | | Alarm | 2 x input, 1 x output | | | | Material | Metal | | Power Supply | 24 VAC, 3 A (±10%) | | Power Consumption | 10.5 W, 26 W with IR LEDs on | | Operating Temperature | -40 to 140°F (-40 to 60°C) | | Operating Humidity | <90% RH | | Lightning Protection | 6 kV | | IP Rating | IP66 | | Dimensions | 8 x 14.2" (20.5 x 36 cm) | | Weight | 17 lb (7.8 kg) | | | | Package Weight | 19.5 lb | | Box Dimensions (LxWxH) | 20.7 x 12.3 x 11.5" |
