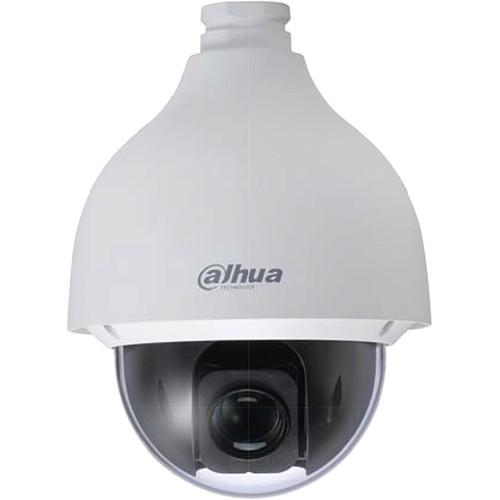

User Manual for Dahua Technology Pro Series 4MP Outdoor Network PTZ Dome Camera with Intelligent Video System Click to enlarge the picture
Contents of the user manual for the Dahua Technology Pro Series 4MP Outdoor
- Product category: Wired IP Cameras Dahua Technology
- Brand: Dahua Technology
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Dahua Technology Wired IP Cameras
|
User manual for the Dahua Technology Pro Series 4MP Outdoor contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Dahua Technology product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Dahua Technology user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Dahua Technology product will considerably shorten its lifespan!
|
Product description The Dahua Technology Pro Series 4MP Outdoor Network PTZ Dome Camera features a 1/3" CMOS sensor and 30x optical zoom lens for capturing videos at a maximum resolution of 2592 x 1520. For applications with both bright and low light conditions that change quickly, true WDR (120 dB) optimizes both bright and dark areas of a scene at the same time to provide a usable video. Enclosed in an IP67-rated housing, the camera can be used for both indoor and outdoor applications. The camera has an IK10 impact rating, meaning it is capable of withstanding the equivalent of 120 lb of force.
The IVS (Intelligent Video System) is a built-in video analytics algorithm that delivers intelligent functions to monitor a scene for tripwire violations, intrusion detection, and abandoned or missing objects. A camera with IVS quickly and accurately responds to monitoring events in a specific area. In addition to scene analytics, the camera supports face detection to capture a face and upload the image to a server. The camera also offers tamper detection to generate a warning message that prompts you to inspect the camera.
The Auto Tracking feature controls the pan/tilt/zoom actions of the camera to automatically track an object in motion and to keep it in the scene. The tracking action can be triggered manually or automatically by defined rules. Once a rule is triggered, the camera can zoom in and track the defined target automatically. Utilizing Dahua's algorithm technology, the Defog feature dynamically adjusts the camera's contrast settings to provide improved image quality in scenes affected by fog, smog, mist, smoke, or other low-contrast interference. The camera conforms to the ONVIF (Open Network Video Interface Forum) and PSIA (Physical Security Interoperability Alliance) specifications, ensuring interoperability between network video products regardless of manufacturer. With a temperature range of -40 to +140°F, the camera is designed use in harsh temperature environments. The 6KV lightning rating means the camera and its structure are protected from the effects of lightning. - 1/3" 4MP progressive scan CMOS sensor
- Auto-tracking and IVS (Intelligent Video System)
- H.265 and H.264 video compression encoding
- IP67 and IK10-rated housing
- EIS (Electronic Image Stabilization)
UPC: 816116023082 In the Box Dahua Technology Pro Series 4MP Outdoor Network PTZ Dome Camera with Intelligent Video System Limited 5-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Dahua Technology Pro Series 4MP Outdoor Network PTZ Dome Camera with Intelligent Video System in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersDahua Technology 50430UNI Specs | | | Image Sensor | 4 MP 1/3" CMOS | | Effective Pixels | 2592 x 1520 (H x V), 4 MP | | RAM | 1024 MB | | ROM | 128 MB | | Scanning System | Progressive | | Minimum Illumination | Color: 0.05 lux at f/1.6
B&W: 0 lux at f/1.6 | | S/N Ratio | More than 55 dB | | | | Focal Length | 4.5 to 135mm | | Maximum Aperture | f/1.6 to 4.4 | | Angle of View | Horizontal: 2.2 to 60°
| | Optical Zoom | 30x | | Focus Control | Auto, Manual | | Close Focus Distance | 0.3 to 3.2' (0.1 to 1 m) | | | | Range | Pan: 0 to 360° endless
Tilt: 0 to 90°
Auto Flip: 180° | | Manual Control Speed | Pan: 0.1 to 350°/s
Tilt: 0.1 to 250°/s | | Preset Speeds | Pan: 500°/s
Tilt: 500°/s | | Presets | 300 | | PTZ Mode | 5 Patterns, 8 Tours, Auto Pan, Auto Scan | | Setup | Speed Setup: Human-oriented focal length, speed adaptation | | Action Type | Power Up: Auto restore to previous PTZ and lens status after power failure | | Idle Motion | Activate Preset, Scan, Tour, or Pattern if there is no command in the specified period | | Protocol | DH-SD | | | | Auto Tracking | Supported | | Intelligent Video Analytics | Tripwire, Intrusion, Abandoned/Missing Object, Face Detection | | | | Compression | H.265, H.264, MJPEG | | Streaming Capability | 3 streams | | Resolution | 4 MP (2592 x 1520), 3 MP (2304 x 1296), 1080p (1920 x 1080), 720p (1280 x 720), D1 (704 x 480), CIF (352 x 240) | | Frame Rate | Main Stream:
4 MP or 3 MP at 30 fps
1080p, 1.3 MP, or 720p at 60 fps
Sub Stream 1:
D1, CIF (1 to 30 fps)
Sub Stream 2:
1080p, 1.3 MP, 720p at 30 fps) | | Bit Rate Control | CBR, VBR | | Bit Rate | H.265/H.264: 448 to 8192 kbps
MJPEG: 5120 to 10240 kbps | | Day/Night | Auto (ICR), color, B&W | | Backlight Compensation | BLC, HLC, WDR (120 dB) | | White Balance | Auto, ATW, Indoor, Outdoor, Manual | | Gain Control | Auto / manual | | Noise Reduction | Ultra DNR (2D/3D) | | Digital Zoom | 16x | | Image Flip | 180° | | Privacy Masking | Up to 24 areas | | | | Compression | G.711a, G.711Mu, AAC, G.722, G.726, G.729, MPEG2-L2 | | | | Ethernet | RJ45 (10/100Base-T) | | Protocol | IPv4/IPv6, HTTP, HTTPS, SSL, TCP/IP, UDP, UPnP, ICMP, IGMP, SNMP, RTSP, RTP, SMTP, NTP, DHCP, DNS, PPPoE, DDNS, FTP, IP Filter, QoS, Bonjour, 802.1x | | Interoperability | ONVIF, PSIA, CGI | | Streaming Method | Unicast / multicast | | Maximum User Access | 20 users | | Edge Storage | NAS
Local PC for instant recording | | Web Viewer | IE 10, Chrome, Firefox, Safari | | Management Software | Smart PSS, DSS | | Mobile OS Support | iOS, Android, and Windows | | | | Safety | CE
EN 55032
EN 55024
EN 50130-4
UL60950-1 + CAN/CSA C22.2, No.60950-1 | | Electromagnetic Compatibility | FCC Part 15 Subpart B
ANSI C63.4-2014 | | | | Audio Interface | In: 1 x Channel
Out: 1 x Channel | | Alarm | In: 2 x Channel
Out: 1 x Channel | | | | Power Supply | 24 VAC, 1.5 A (± 10%), PoE+ (802.3at) | | Power Consumption | 13 W, 23 W with heater on | | | | Operating Conditions | -40 to 140°F (-40 to 60°C), less than 90% RH | | Ingress protection | IP67 | | Vandal Resistance | IK10 | | | | Casing | Metal | | Dimensions (Ø x H) | 7.2 x 9.96" (186 x 253 mm) | | Weight | 5.51 lb (2.5 kg) | | | | Package Weight | 11.0 lb | | Box Dimensions (LxWxH) | 14.7 x 10.3 x 10.1" |
