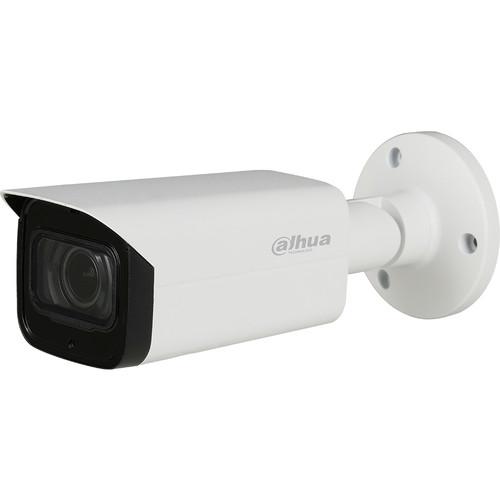

User Manual for Dahua Technology Pro Series A52AF6Z 5MP Outdoor HD-CVI Bullet Camera with Night Vision Click to enlarge the picture
Contents of the user manual for the Dahua Technology Pro Series A52AF6Z 5MP
- Product category: Wired Analog & HD Cameras Dahua Technology
- Brand: Dahua Technology
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Dahua Technology Wired Analog & HD Cameras
|
User manual for the Dahua Technology Pro Series A52AF6Z 5MP contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Dahua Technology product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Dahua Technology user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Dahua Technology product will considerably shorten its lifespan!
|
Product description Move up to 5MP video over coax cabling with the Pro Series A52AF6Z 5MP Outdoor HD-CVI Bullet Camera with Night Visionn from Dahua Technology. Featuring a 5MP STARVIS CMOS sensor and a 2.7-13.5mm motorized varifocal lens, this camera captures video at resolutions up to 2592 x 1944 at 20 fps in a 102 to 29° field of view. The camera uses Starlight technology to deliver color video in low-light conditions down to 0.005 lux. Moreover, it has an IR cut filter and IR LEDs for night vision with an effective range of up to 262'.
The camera is equipped with a built-in microphone for capturing audio, which is transmitted over coax along with the video signals. Designed for outdoor use, the camera is housed in an IP67-rated weather-resistant enclosure. - 1/2.8" 5MP progressive-scan STARVIS CMOS Sensor
- Up to 2592 x 1944 resolution at 20 fps
- 2.7-13.5mm motorized varifocal Lens
- Starlight technology and IR LEDs for low-light performance up to 262'
- Smart IR for uniform brightness in B&W images under low illumination; LED intensity adjusts in proportion to object distance, preventing overexposure as objects move closer to camera
- HD-CVI output, switchable to CVBS
- Format selectable via OSD menu or output cable switch
- 120 dB wide dynamic range
- 2D/3D digital noise reduction
- Runs on 24 VAC or 12 VDC power
- ±30% input voltage tolerance
- IP67 rated for outdoor use
UPC: 819290025460 In the Box Dahua Technology Pro Series A52AF6Z 5MP Outdoor HD-CVI Bullet Camera with Night Vision Limited 5-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Dahua Technology Pro Series A52AF6Z 5MP Outdoor HD-CVI Bullet Camera with Night Vision in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersDahua Technology A52AF6Z Specs | | | Sensor | 1/2.8" STARVIS CMOS | | Effective Pixels | 2592 x 1944, 5 MP | | Scanning System | Progressive | | Electronic Shutter Speed | 1/100,000 to 1/30 Second | | Minimum Illumination | Color: 0.005 Lux at f/1.3 (30 IRE)
0 Lux with IR On | | S/N Ratio | >65 dB | | IR Range | 262.47' / 80 m | | IR Control | Auto, Manual | | IR LEDs | 4 | | | | Lens Type | Motorized Lens, Fixed Iris | | Mount Type | Board-In | | Focal Length | 2.7-13.5mm | | Maximum Aperture | f/1.3 | | Horizontal Angle of View | 102 to 29° | | Focus Control | Auto, Manual | | Close Focus Distance | 7.87" / 200 mm | | | | Detect | Wide: 210' / 64 m at 8 ppf
Tele: 728' / 222 m at 8 ppf | | Observe | Wide: 85' / 26 m at 19 ppf
Tele: 292' / 89 m at 8 ppf | | Recognize | Wide: 43' / 13 m at 38 ppf
Tele: 144' / 44 m at 38 ppf | | Identify | Wide: 20' / 6 m at 76 ppf
Tele: 72' / 22 m at 76 ppf | | | | Horizontal | 0 to 360° | | Vertical | 0 to 90° | | Rotation | 0 to 360° | | | | Resolution | 2592 x 1944 (5 MP) | | Frame Rate | 20 fps at 5 MP
30 fps at 4 MP
30 fps at 1080p | | Output | 1 x BNC HD-CVI Channel
Switchable to CVBS | | Transmission | Over RG-59/U Coax
720p: 2624.67' / 800 m
1080p: 1640.42' / 500 m
4MP: 1640.42' / 500 m
Over RG-6/U Coax
720p: 3937.01' / 1200 m
1080p: 2624.67' / 800 m
4MP: 2296.59' / 700 m
Over Cat 6 UTP (Separately Available Balun Required)
720p: 1476.38' / 450 m
1080p: 984.25' / 300 m
4 M: 984.25' / 300 m | | Day/Night | Auto (IR Cut Filter), Manual | | OSD Menu | Multi-Language | | BLC Modes | BLC, HLC, DWDR | | WDR | 120 dB | | Gain Control | Automatic (AGC) | | Noise Reduction | 2D, 3D | | White Balance | Auto, Manual | | Smart IR | Auto, Manual | | | | CE | EN55032, EN55024, EN50130-4 | | Safety | UL60950-1
CAN/CSA C22.2 No.60950-1 | | Electromagnetic Compatibility | FCC CFR 47 Part 15 Subpart B
ANSI C63.4-2014 | | | | Interface | 1 x RCA, Input
Built-In Microphone | | | | Power Supply | 24 VAC ±30% or 12 VDC ±30% | | Power Output | 12 VDC, 2 W Maximum | | Maximum Power Consumption | DC: 17.2 W | | | | Operating/Storage Temperature | -22 to 140°F / -30 to 60° C | | Operating/Storage Humidity | 90% RH Maximum | | Ingress Protection | IP67 | | | | Casing | Aluminum | | Dimensions | 9.61 x 3.56 x 3.56 " / 244.1 x 90.4 x 90.4 mm | | Weight | 1.79 lb / 0.81 kg | | | | Package Weight | 2.315 lb | | Box Dimensions (LxWxH) | 12.15 x 6.1 x 5.85" |
