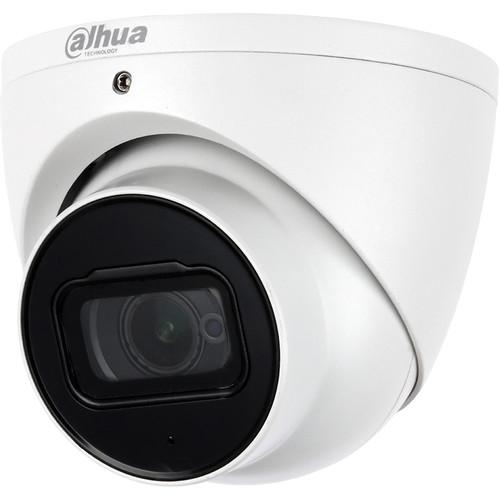

User Manual for Dahua Technology Pro Series A82AG52 8MP Outdoor HD-CVI Turret Camera with Night Vision & 2.8mm Lens Click to enlarge the picture
Contents of the user manual for the Dahua Technology Pro Series A82AG52 8MP
- Product category: Wired Analog & HD Cameras Dahua Technology
- Brand: Dahua Technology
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Dahua Technology Wired Analog & HD Cameras
|
User manual for the Dahua Technology Pro Series A82AG52 8MP contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Dahua Technology product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Dahua Technology user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Dahua Technology product will considerably shorten its lifespan!
|
Product description The Pro Series A82AG52 8MP Outdoor HD-CVI Turret Camera from Dahua Technology uses a 1/2" progressive scan CMOS sensor to transmit up to 4K UHD resolution video at 15 fps. Two IR LEDs provide up to 164' of night vision. The 2.8mm fixed lens delivers an 87° horizontal field of view. This camera supports HD-CVI, TVI, AHD, and CVBS formats. It is equipped with a built-in microphone and an RCA audio input.
This camera is housed in an IP67-rated aluminum enclosure that is suitable for outdoor use. - Simultaneously transmits video, audio, and data over a single coax cable
- Video transmission distance up to 3937.01'
- Starlight technology for visibility in low-light conditions
- IR cut filter for day and night functionality
- Auto and manual focus control
- 70.87" close focus distance
- Camera pivots from 0 to 360° horizontally and from 0 to 70° vertically
- 120 dB wide dynamic range
- Backlight and highlight compensation
- Auto and manual IR on/off control
- Auto and manual white balance
- 4kV lightning protection and ±30% input voltage tolerance
- DORI Distance
-
- Detect (8 ppf): 276'
- Observe (19 ppf): 112'
- Recognize (38 ppf): 56'
- Identify (76 ppf): 27'
UPC: 819290024173 In the Box Dahua Technology Pro Series A82AG52 8MP Outdoor HD-CVI Turret Camera with Night Vision & 2.8mm Lens Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Dahua Technology Pro Series A82AG52 8MP Outdoor HD-CVI Turret Camera with Night Vision & 2.8mm Lens in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersDahua Technology A82AG52 Specs | | | Image Sensor | 1/2" Progressive Scan CMOS Sensor | | Effective Pixels (H x V) | 3840 x 2160 | | Electronic Shutter Speed | 1/100,000 to 1/3 Seconds | | Minimum Illumination | Color: 0.005 lux at f/1.6, 30 IRE
B&W: 0 lux with IR | | S/N Ratio | >65 dB | | IR Range | 164' / 50 m | | IR Control | On/Off Control (Auto, Manual) | | Number of IR LEDs | 2 | | | | Lens Type | Fixed Lens, Fixed iris | | Mount Type | Board-In | | Focal Length | 2.8mm | | Maximum Aperture | f/1.6 | | Field of View | Horizontal: 87° | | Focus Control | Auto, Manual | | Close Focus Distance | 70.87" / 1800 mm | | | | Angle Adjustment | Horizontal: 0 to 360°
Vertical: 0 to 70°
Rotation: 0 to 360° | | | | Maximum Resolution | 3840 x 2160 | | Frame Rate | HD-CVI: 8 MP at 15 fps, 6 MP at 20 fps, 4 MP at 30 fps
HD-TVI: 5 MP at 20 fps, 4 MP at 30 fps
AHD: 5 MP at 20 fps, 4 MP at 30 fps
CVBS: 960H | | Video Output | 1 x HD-CVI (BNC, 4K UHD)
1 x CVBS (BNC, Switchable) | | Video Transmission Distance | RG-59/U:
720p: 2624.67' / 800 m
1080p: 1640.42' / 500 m
4K UHD: 1640.42' / 500 m
RG-6/U:
720p: 3937.01' / 1200 m
1080p: 2624.67' / 800 m
4K UHD: 2296.59' / 700 m
Cat 6 UTP (Balun Required, Available Separately):
720p: 1476.38' / 450 m
1080p: 984.25' / 300 m
4K UHD: 984.25' / 300 m | | Day/Night | Auto IR Cut Filter/Manual | | OSD Menu | Multi-Language | | Backlight Compensation | BLC, HLC, True WDR | | WDR | 120 dB | | Automatic Gain Control | Supported | | Noise Reduction | 2D-DNR, 3D-DNR | | White Balance | Auto, Manual | | Smart IR | Auto, Manual | | | | Audio | Built-In Microphone
1 x Audio Input (RCA) | | | | Power Supply | 12 VDC, ±30% | | Power Consumption | Maximum 8 W at 12 VDC (IR On) | | Operating Conditions | -22 to 140° / -30 to 360°C
Less than 90% RH | | Storage Conditions | -22 to 140° / -30 to 360°C
Less than 90% RH | | IP Rating | IP67 | | Casing | Aluminum | | Certifications | CE: EN55032, EN55024, EN50130-4
Safety: UL60950-1, CAN/CSA C22.2 No.60950-1
Electromagnetic Compatibility (EMC): FCC CFR 47 Part 15 subpart B, ANSI C63.4-2014 | | Dimensions (Diam. x H) | 4.17 x 3.9" / 106 x 99.2 mm | | Weight | 1.1 lb / 0.5 kg | | | | Package Weight | 1.48 lb | | Box Dimensions (LxWxH) | 4.25 x 4.25 x 4.25" |
