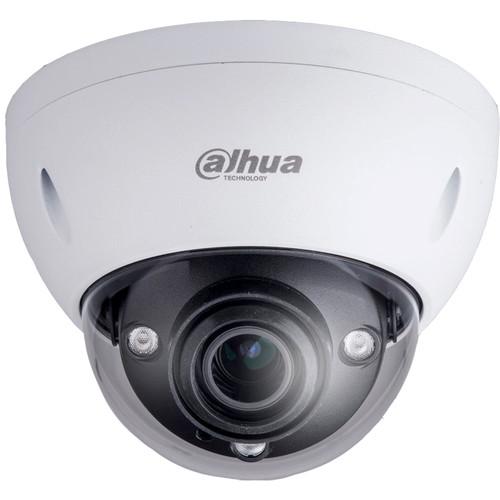

User Manual for Dahua Technology Pro Series DH-IPC-HDBW5831EN-Z5E 8MP Outdoor Network Dome Camera with 7-35mm Lens & Night Vision Click to enlarge the picture
Contents of the user manual for the Dahua Technology Pro Series DH-IPC-HDBW5831EN-Z5E 8MP
- Product category: Wired IP Cameras Dahua Technology
- Brand: Dahua Technology
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Dahua Technology Wired IP Cameras
|
User manual for the Dahua Technology Pro Series DH-IPC-HDBW5831EN-Z5E 8MP contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Dahua Technology product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Dahua Technology user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Dahua Technology product will considerably shorten its lifespan!
|
Product description Capture 8MP security video with the Pro Series DH-IPC-HDBW5831EN-Z5E 8MP Outdoor Network Dome Camera with Night Vision from Dahua Technology. Featuring a 1/2.5" STARVIS CMOS sensor and a 7-35mm 5x motorized varifocal lens, this camera can record video at resolutions up to 3840 x 2160 at 15 fps in a 38 to 14° field of view. The camera has an IR cut filter and IR LEDs for night vision to a maximum effective range of 328'. Image enhancement features include a 120 dB wide dynamic range, automatic white balance, and backlight/highlight compensation to enable you to capture clear images in varying lighting conditions.
Designed for easy setup, this camera incorporates ePoE technology so you can run just one cable for both data and power. Also featured are a built-in microSD card slot for edge storage, and audio input and output ports for two-way talk. The camera is rated IP67 and IK10 for weather and vandal resistance. ONVIF compliance ensures compatibility with a wide range of surveillance equipment. - 1/2.5" 8MP progressive scan STARVIS CMOS sensor
- Up to 8MP (3840 x 2160) resolution at 15 fps or 3MP (2304 x 1296) at 30 fps
- H.265+, H.265, H.264+, and H.264 video compression for efficient bandwidth and storage use
- 7-35mm motorized varifocal lens
- ePoE for simple, clutter-free installation and enhanced power & data transmission distances
- 120 dB wide dynamic range
- Automatic IR cut filter for day/night functionality
- IR LEDs for night vision up to 328'
- Smart IR for uniform brightness in B&W images under low illumination; LED intensity adjusts in proportion to object distance, preventing overexposure as objects move closer to camera
- microSD card slot for edge storage supports up to 128GB (microSD card available separately)
- Built-in IVS video analytics including Tripwire violation detection, intrusion detection, abandoned object detection, missing object detection, face detection, tamper detection, sudden scene change detection
- 3D-DNR digital noise reduction
- Audio input and output for two-way talk
- Analog video output for connection to TV monitor
- 512MB RAM and 32MB ROM memory
- Broad operating temperature range of -22 to 140°F
- Runs on 12 VDC, 24 VAC, or ePoE
- IP67 rated for outdoor use
- IK10-rated vandal resistance
UPC: 819290022100 In the Box Dahua Technology Pro Series DH-IPC-HDBW5831EN-Z5E 8MP Outdoor Network Dome Camera with 7-35mm Lens & Night Vision Inner Hex Wrench Installation Screws Installation Position Map Limited 5-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Dahua Technology Pro Series DH-IPC-HDBW5831EN-Z5E 8MP Outdoor Network Dome Camera with 7-35mm Lens & Night Vision in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersDahua Technology DH-IPC-HDBW5831EN-Z5E Specs | | | Sensor | 8 MP 1/2.5" CMOS | | Focal Length | 7 to 35mm | | Maximum Aperture | f/1.4 | | Zoom | Optical: 5x
Digital: 16x | | Lens Field of View | Horizontal: 38 to 14°
Vertical: 22 to 8° | | IR Cut Filter | Mechanical | | Day/Night | Yes | | Minimum Illumination | Color: 0.05 Lux
B&W: 0 Lux | | Shutter Speed | 1/100,000 to 1/3 Seconds | | Camera Angle Adjustment | Horizontal: 0 to 355°
Vertical: 0 to 65° | | | | Streaming Resolution | 3840 x 2160 at 15 fps (10.2 Mb/s H.264)
3840 x 2160 at 15 fps (10.0 Mb/s H.265)
2304 x 1296 at 30 fps (10.2 Mb/s H.264)
2304 x 1296 at 30 fps (10.0 Mb/s H.265) | | Supported Video Compression | H.264, H.264+, H.265, H.265+ | | Multi-View Streaming | Yes, 3 Streams | | Automatic Gain Control | Yes | | | | Streaming | Two-Way | | Audio Formats | AAC, G.711, G.726 | | Built-In Mic | No | | External Audio Input | 6-Pin Terminal Block | | Built-In Speaker | No | | External Audio Output | 6-Pin Terminal Block | | | | Security | HTTPS, IEEE 802.1X | | Supported Protocols | ARP, Bonjour, DDNS, DHCP, DNS, FTP, HTTP, ICMP, IGMP, IPv4/v6, NTP, PPPoE, QoS Layer 3 DiffServ, RTP, RTSP, SMTP, SNMP v1/v2c/v3 (MIB-II), TCP, UDP, UPnP | | | | Analytics | Motion Detection, Tripwire Violation Detection, Intrusion Detection, Abandoned Object Detection, Missing Object Detection, Tamper Detection, Scene Change Detection, Face Detection | | Event Trigger | Yes | | Event Action | Recording, Notification, Alarm | | | | Mobile Operating Systems | iOS, Android | | | | Recording Media | microSD (Up to 128 GB) | | Pan/Tilt | None | | Alarm I/O | 1 / 1 | | I/O Connections | 1 x RJ45
1 x Power | | IR Illuminators | None | | IR Range | 328.08' / 100 m | | Video Management Software | IVS, Smart PSS, DSS | | Certifications | FCC (Part 15 Class B), UL, as per Manufacturer | | Internal Storage | None | | External Storage Options | Local PC, NAS | | Power Source | AC, DC, PoE 802.3at (30 W) | | Power Consumption | 15 W | | Material of Construction | Metal (Unspecified Type) | | Operating Temperature | -22 to 140°F / -30 to 60°C | | Storage Temperature | -22 to 140°F / -30 to 60°C | | Operating Humidity | 95% | | IP Rating | IP67 | | IK Rating | IK10 | | Dimensions |
