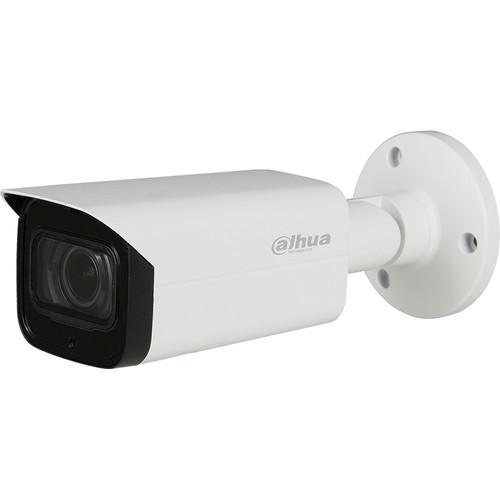

User Manual for Dahua Technology Pro Series DH-IPC-HFW4239TN-AS 2MP Outdoor ePoE Network Bullet Camera Click to enlarge the picture
Contents of the user manual for the Dahua Technology Pro Series DH-IPC-HFW4239TN-AS 2MP
- Product category: Wired IP Cameras Dahua Technology
- Brand: Dahua Technology
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Dahua Technology Wired IP Cameras
|
User manual for the Dahua Technology Pro Series DH-IPC-HFW4239TN-AS 2MP contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Dahua Technology product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Dahua Technology user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Dahua Technology product will considerably shorten its lifespan!
|
Product description The Pro Series DH-IPC-HFW4239TN-AS 2MP Outdoor ePoE Network Bullet Camera from Dahua Technology uses a 1/2.8" STARVIS progressive scan CMOS sensor to capture 1080p resolution video at up to 60 fps. The 3.6mm fixed lens delivers an 87° horizontal field of view. Two-way audio communication is possible thanks to an audio input and output. An onboard memory card slot supports microSD cards up to 128GB. microSD cards are available separately. Integrated PoE technology simplifies connectivity by enabling the transfer of power and data through a single cable. Additionally, ePoE technology offers a cost-effective solution for transmitting power and data over long distances via Ethernet or coaxial cables.
This bullet camera is ONVIF-compliant for profiles S and G, making it compatible with a wide range of surveillance devices. The camera's IP67- and IK10-rated metal enclosure ensures that it can be used outdoors in areas at risk of vandalism. - Suitable for monitoring casino floors, parking lots, schools, building interiors & exteriors, and streets
- Utilizes back-illuminated pixel technology, a 3.6mm lens with an f/1.0 aperture, and a STARVIS image sensor to deliver color details without an external IR or white light illumination
- Built-in IVS (Intelligent Video System) analytic algorithms monitor a scene for intrusions, abandoned or missing objects, tampering, and tripwire violations
- Ethernet over Coaxial (EoC) technology
- Enhanced Power over Ethernet (ePoE) technology enables long distance power and data transmission via Ethernet or coaxial cables up to 3281'
- ePoE technology converts existing coax-based analog systems into IP systems, reducing cable & peripheral device requirements, saving you time & money
- Smart H.265+, Smart H.264+, H.265, H.264, and MJPEG video compression
- Unicast and multicast streaming methods
- 5.3' close focus distance
- True wide dynamic range (120 dB), backlight compensation, and highlight compensation
- White balance modes include auto, natural, street lamp, outdoor, and manual
- Auto and manual gain control
- Motion detection for 4 zones (rectangular)
- ROI (region of interest) for 4 zones
- Privacy masking for 4 areas (rectangular)
- 0, 90, 180, and 270° flip perspective
- Compatible with Internet Explorer, Chrome, Firefox, Safari, iOS, and Android
- Records to a local PC, microSD card, and NAS edge storage
- IP67- and IK10-rated metal enclosure that is suitable for outdoor use in areas at risk of vandalism
- 6kV lightning protection and ±30% input voltage tolerance
- DORI Distance
-
- 174' / 53m (detect / 8 ppf)
- 69' / 21m (observe / 19 ppf)
- 36' / 11m (recognize / 38 ppf)
- 16' / 5m (identify / 76 ppf)
UPC: 819290025644 Table of Contents
|
Upload User Manual
Have you got an user manual for the Dahua Technology Pro Series DH-IPC-HFW4239TN-AS 2MP Outdoor ePoE Network Bullet Camera in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersDahua Technology DH-IPC-HFW4239TN-AS Specs | | | Sensor | 2 MP 1/2.8" CMOS | | Focal Length | 3.6mm | | Maximum Aperture | f/1 | | Zoom | Digital: 16x | | Lens Field of View | Horizontal: 87°
Vertical: 47° | | IR Cut Filter | Mechanical | | Day/Night | Yes | | Minimum Illumination | Color: 0.001 Lux | | Shutter Speed | 1/100,000 to 1/3 Seconds | | | | Streaming Resolution | 1920 x 1080 at 60 fps (10.24 Mb/s H.264) | | Supported Video Compression | H.264, H.264+, H.265, H.265+, MJPEG | | Multi-View Streaming | Yes, 3 Streams | | Automatic Gain Control | Yes | | | | Streaming | Two-Way | | Audio Formats | AAC, G.711, G.726 | | | | Security | HTTPS, IEEE 802.1X | | Supported Protocols | ARP, Bonjour, DDNS, DHCP, DNS, FTP, HTTP, ICMP, IGMP, IPv4/v6, NFS, NTP, PPPoE, QoS Layer 3 DiffServ, RTCP, RTP, RTSP, SMTP, SNMP v1/v2c/v3 (MIB-II), SSH, SSL/TLS, TCP, UDP, UPnP | | | | Application Programming Interface (API) | ONVIF Profiles S & G | | Analytics | Tampering, Memory Card Error, Network Error, Unauthorized Access, Motion, Tripwire, Intrusion, Scene Change, Abandoned/Missing Object | | Event Trigger | Yes | | Event Action | Recording, Notification, Alarm | | Data Streaming | Yes | | | | Mobile Operating Systems | iOS, Android | | | | Memory | 256 MB RAM / 32 MB Flash | | Recording Media | microSD (Up to 128 GB) | | Pan/Tilt | None | | Alarm I/O | 1 / 1 | | I/O Connections | 1 x RJ45
1 x Power | | Video Management Software | Smart PSS, DSS, DMSS | | Internal Storage | None | | External Storage Options | Local PC, NAS | | Power Source | DC, PoE 802.3af (15 W) | | Power Consumption | 4 W | | Material of Construction | Metal (Unspecified Type) | | Operating Temperature | -22 to 140°F / -30 to 60°C | | Storage Temperature | -22 to 140°F / -30 to 60°C | | Operating Humidity | 0 to 95% | | IP Rating | IP67 | | IK Rating | IK10 | | Dimensions | H: 3.0 x W: 3.1 x L: 9.6" / H: 75.9 x W: 79.0 x L: 244.1 mm | | Weight | 1.8 lb / 0.8 kg | | | | Package Weight | 2.46 lb | | Box Dimensions (LxWxH) | 12.25 x 6.35 x 5.75" |
