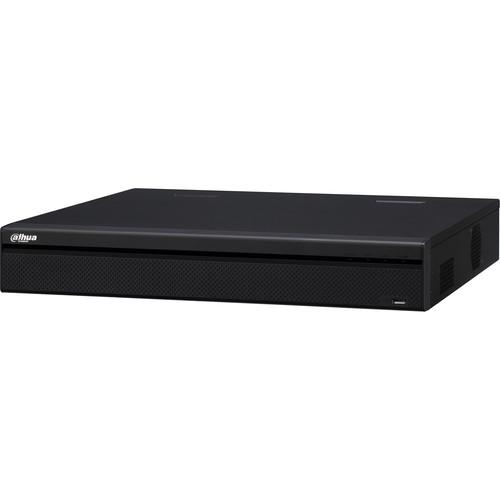

User Manual for Dahua Technology Pro Series DHI-NVR54A16-16P-4KS2 16-Channel 12MP NVR with 12TB HDD Click to enlarge the picture
Contents of the user manual for the Dahua Technology Pro Series DHI-NVR54A16-16P-4KS2 16-Channel
- Product category: Network Video Recorders (NVRs) Dahua Technology
- Brand: Dahua Technology
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Dahua Technology Network Video Recorders (NVRs)
|
User manual for the Dahua Technology Pro Series DHI-NVR54A16-16P-4KS2 16-Channel contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Dahua Technology product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Dahua Technology user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Dahua Technology product will considerably shorten its lifespan!
|
Product description Record from and manage up to 16 cameras with the Pro Series DHI-NVR54A16-16P-4KS2 16-Channel 12MP NVR with 12TB HDD from Dahua Technology. This NVR supports IP cameras up to 12 MP. It has four SATA III ports that each support up to 10TB HDDs, for a maximum of 40TB (12TB HDD preinstalled). H.265, H.264, and MJPEG video compressions ensure high-quality recording and playback.
This NVR supports up to 128 users. An RCA audio I/O makes two-way talk possible. One VGA and two HDMI ports enable video output to an external monitor (available separately), with the first HDMI port outputting video at up to 4K UHD resolution. ONVIF compliance with version 2.4 provides interoperability with ONVIF IP cameras. - Embedded quad-core processor and Linux OS
- Supports 4K UHD resolution for recording, live viewing, and playback
- Automatic Network Replenishment (ANR) technology
- VGA and 2 x HDMI simultaneous video outputs
- 320 Mb/s maximum incoming bandwidth
- 16 alarm inputs and 6 relay outputs
- 1 x USB 2.0 and 1 x USB 3.0
- RS-232 port for PC communication and keyboard
- 3D intelligent positioning with Dahua PTZ cameras
- Optional point-of-sale solution
- Compatible with iOS and Android
- Backup via USB device, network, internal SATA burner, or eSATA device
- Intelligent Video System (IVS) Analytics
-
- Tampering with the camera
- Memory card error
- Network error
- Unauthorized access
- Motion
- Tripwire
- Intrusion
- Scene change
- Abandoned/missing object
- Facial detection
- People counting
- Heat mapping
UPC: 816116020098 In the Box Dahua Technology Pro Series DHI-NVR54A16-16P-4KS2 16-Channel 12MP NVR with 12TB HDD Rackmount Ears Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Dahua Technology Pro Series DHI-NVR54A16-16P-4KS2 16-Channel 12MP NVR with 12TB HDD in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersDahua Technology DHI-NVR54A16-16P-4KS2 12TB Specs | | | Main Processor | Embedded Quad-Core Processor | | Operating System | Embedded Linux | | | | IP Camera Inputs | 16 | | Two-Way Talk | 1 x RCA Input
1 x RCA Output | | | | Interface | 2 x HDMI (HDMI 1 up to 3840 x 2160, Different Source)
1 x VGA | | Resolution | 3840 x 2160, 1920 x 1080, 1280 x 1024, 1280 x 720, 1024 x 768 | | Multi-Screen Display | 1st Screen: 1/4/8/9/16
2nd Screen: 1/4/8/9/16 | | OSD | Camera Title, Time, Video Loss, Camera Lock, Motion Detection, Recording | | | | Compression | H.265, H.264, MJPEG, MPEG-4 | | Resolution | 12 MP, 8 MP, 6 MP, 5 MP, 4 MP, 3 MP, 1080p, 720p, D1 | | Maximum Incoming Bandwidth | 320 Mb/s | | Bit Rate | 16 kb/s to 20 Mb/s per Channel | | Record Mode | Manual, Schedule (Regular, Continuous, MD, Alarm), Stop | | Recording Intervals | 1 to 120 Minutes (Default: 60 Minutes)
Pre-Record: 1 to 30 Seconds
Post-Record: 10 to 300 Seconds | | | | Trigger Events | Recording, PTZ, Tour, Alarm Out, Video Push, Email, FTP, Snapshot, Buzzer, and Screen Tips | | Video Detection | Motion Detection, MD Zones: 396 (22 x 18), Video Loss, and Camera Blank | | Alarm Inputs | 16
Low-Level Effective, Green Terminal Interface | | Relay Outputs | 6
NO/NC Programmable, Green Terminal Interface | | Tracking | Tracking Trigger Event: Targeting, Zoom, Tracking, Recording, Snapshot, Alarm | | | | Sync Playback | 1/4/8/16 | | Search Modes | Time/Date, Alarm, MD & Exact Search (Accurate to One Second) | | Playback Function | Play, Pause, Stop, Rewind, Fast Play, Slow Play, Next File, Previous File, Next Camera, Previous Camera, Full Screen, Repeat, Shuffle, Backup Selection, Digital Zoom | | Backup Modes | USB Device, Network, Internal SATA Burner, eSATA Device | | | | Brand Compatibility | Dahua, Arecont Vision, Axis Communications, Bosch, Brickcom, Canon, CP Plus, Dynacolor, Honeywell, Panasonic, Pelco, Samsung, Sanyo, Videotec, Vivotek, and More | | | | Ethernet | 1 x RJ45 (10/100/1000M) | | PoE | 16 Ports (IEEE 802.3af/at) | | Network Function | HTTP, TCP/IP, IPv4/IPv6, UPnP, RTSP, UDP, SMTP, NTP, DHCP, DNS, IP Filter, PPPoE, DDNS, FTP, Alarm Server, IP Search, (Supports Dahua IP Cameras, DVRs, and NVSes), P2P | | Maximum User Access | 128 Users | | Mobile Operating Systems | iOS, Android | | Interoperability | ONVIF 2.4.1, CGI Conformant | | | | HDD Support | 4 x SATA III Ports, 10 TB Capacity for Each Disk | | Installed HDD | 12 TB Preinstalled | | HDD Mode | Single | | eSATA Port | 1 | | | | USB | 1 x USB 3.0 (Rear)
1 x USB 2.0 (Front) | | RS-232 | 1 Port for PC Communication and Keyboard | | RS-485 | 1 Port for PTZ Control | | | | Power Supply | Single, 100 to 240 VAC, 50/60 Hz | | Power Consumption | 15.2 W without HDDs | | PoE Power | 25.5 W Single Port, 150 W Total | | | | Operating Temperature | 14 to 131°F / -10 to 55°C | | Storage Temperature | -4 to 158°F / -20 to 70°C | | Storage Humidity | 0 to 90% RH | | Certifications | CE: EN55022, EN55024, EN50130-4, EN60950-1
FCC: Part 15 Subpart B, ANSI C63.4-2014
UL: UL 60950-1 + CAN/CSA C22.2 No. 60950-1 | | Rack Units | 1.5 RU | | Dimensions | 17.3 x 16.4 x 2.9" / 440 x 416.7 x 76 mm | | Weight | 10.25 lb / 4.65 kg without HDDs |
