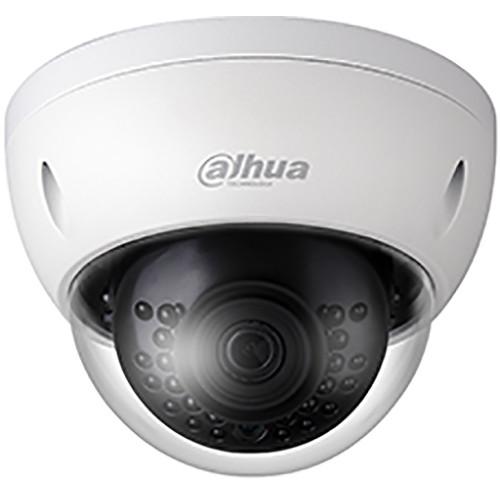

User Manual for Dahua Technology Pro Series N24BL53 2MP Outdoor Network Dome Camera with Night Vision and 3.6mm Lens Click to enlarge the picture
Contents of the user manual for the Dahua Technology Pro Series N24BL53 2MP
- Product category: Wired IP Cameras Dahua Technology
- Brand: Dahua Technology
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Dahua Technology Wired IP Cameras
|
User manual for the Dahua Technology Pro Series N24BL53 2MP contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Dahua Technology product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Dahua Technology user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Dahua Technology product will considerably shorten its lifespan!
|
Product description The Pro Series N24BL53 2MP Outdoor Network Dome Camera with Night Vision and 3.6mm Lens from Dahua Technology is equipped with a 1/2.8" progressive scan Exmor CMOS sensor to capture 1920 x 1080 resolution video at up to 60 fps. The 3.6mm fixed lens features a 87° horizontal field of view, and 24 IR LEDs that deliver up to 98' of night vision. PoE technology simplifies connectivity by enabling the transfer of power and data through a single cable. An on-board card slot supports microSD cards up to 128GB. microSD cards are available for purchase separately.
This device has an IP67- and IK10-rated metal enclosure that is suitable for outdoor use in areas at risk of vandalism. - Smart H.265+, H.265, Smart H.264+, H.264, and MJPEG video compression
- IVS (intelligent video system) allows you to monitor tripwire violations, intrusion detection, and abandoned or missing objects
- Audio and alarm interface
- BLC modes include backlight compensation, highlight compensation, and wide dynamic range
- White balance modes include auto, natural, street, lamp, outdoor, and manual
- Auto and manual gain control
- Motion detection for up to 4 zones
- Privacy masking for up to 4 areas
- Up to 4 ROI (region of interest) zones
- Edge storage to NAS, local PC, and microSD cards up to 128GB
- Compatible with Internet Explorer, Firefox, Safari, iOS, and Android
- IP67- and IK10-rated metal enclosure is suitable for outdoor use in areas at risk of vandalism
UPC: 816116024607 In the Box Dahua Technology Pro Series N24BL53 2MP Outdoor Network Dome Camera with Night Vision and 3.6mm Lens Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Dahua Technology Pro Series N24BL53 2MP Outdoor Network Dome Camera with Night Vision and 3.6mm Lens in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersDahua Technology N24BL53 Specs | | | Image Sensor | 1/2.8" 2 MP progressive scan Exmor CMOS | | Effective Pixels (H x V) | 1920 x 1080 | | Memory | RAM: 256 MB
ROM: 32 MB | | Scanning System | Progressive | | Minimum Illumination | Color: 0.009 lux at f/2.0
B&W: 0 lux at f/2.0 with IR on | | S/N Ratio | More than 50 dB | | IR Range | Up to 98.4' / 30 m | | IR Control | Auto/Manual | | Number of IR LEDs | 24 | | | | Lens Type | Fixed | | Mount Type | Board-in | | Focal Length | 3.6mm | | Maximum Aperture | f/2.0 | | Field of View | Horizontal: 87°
Vertical: 48° | | Focus Control | Fixed | | | | Pan Range | 0 to 360° | | Tilt Range | 0 to 64° | | Rotation Range | 0 to 360° | | | | Compression | Smart H.265+, H.265, Smart H.264+, H.264, MJPEG | | Streaming Capability | Three streams | | Resolutions | 1080p / 1920 x 1080
1.3 MP / 1280 x 960
720p / 1280 x 720
D1 / 704 x 480
VGA / 640 x 480
CIF / 352 x 240 | | Frame Rate | Main Stream: 1080p or 720p at 60 fps
Sub-Stream 1: D1 at 60 fps
Sub-Stream 2: 1080p at 30 fps | | Bit Rate Control | CBR, VBR | | Bit Rate | H.265: 14 to 5632 kb/s
H.264: 24 to 9472 kb/s | | Day/Night | Auto IR cut filter, color, B&W | | BLC | True WDR 120 dB, BLC, HLC | | White Balance | Auto, natural, street lamp, outdoor, manual | | Gain Control | Auto, manual | | Noise Reduction | 3D-DNR | | Motion Detection | Off, on, 4 zones, rectangle | | Region of Interest | Off, on, 4 zones | | Smart IR | Support | | Digital Zoom | 16x | | Flip | 0, 90, 180, 270° | | Mirror | Off, on | | Privacy Masking | Off, on, 4 areas, rectangle | | | | Standard | Tampering with the camera
Error writing to an onboard microSD card
Error sending or receiving data over the network
Unauthorized access to the camera | | Premium | Motion: An object moves through any part of the scene.
Tripwire: A target crosses a user-defined line.
Intrusion: A target enters or exits a defined perimeter.
Scene Change: A person or object moves the camera to change the scene or covers the camera to obscure the scene.
Abandoned/Missing Object: A target leaves an object in designated area, or a target removes an object from the same designated area. | | Advanced | Detects and captures a snapshot of human faces in a defined area within a scene | | | | Compression | G.711a, G.711Mu, AAC, G.726 | | | | Ethernet | RJ45 10/100Base-T | | Protocol | HTTP, HTTPS, TCP, ARP, RTSP, RTP, UDP, SMTP, FTP, DHCP, DNS, DDNS, PPPoE, IPv4/v6, QoS, UPnP, NTP, Bonjour, 802.1x, Multicast, ICMP, IGMP, SNMP | | Interoperability | ONVIF, PSIA, CGI | | Streaming Method | Unicast, multicast | | Max. User Access | 10/20 users | | Edge Storage | NAS
Local PC for instant recording
Supports microSD cards up to 128 GB | | Web Viewer | Internet Explorer, Firefox, Safari | | Management Software | Smart PSS, DSS | | Mobile Operating Systems | iOS, Android | | | | Audio | Input: One channel
Output: One channel | | Alarm | Input: One channel
Output: One channel | | | | Power Supply | 12 VDC, PoE 802.3af, Class 0 | | Power Consumption | <5 W | | Operating Conditions | Temperature: -22 to 140°F / -30 to 60°C)
Humidity: Less than 95% RH | | Storage Conditions | Temperature: -22 to 140°F / -30 to 60°C
Humidity: Less than 95% RH | | IP Rating | IP67 | | IK Rating | IK10 | | Casing Material | Metal | | Dimensions |
