Dahua Technology Pro Series N44CL53 4MP

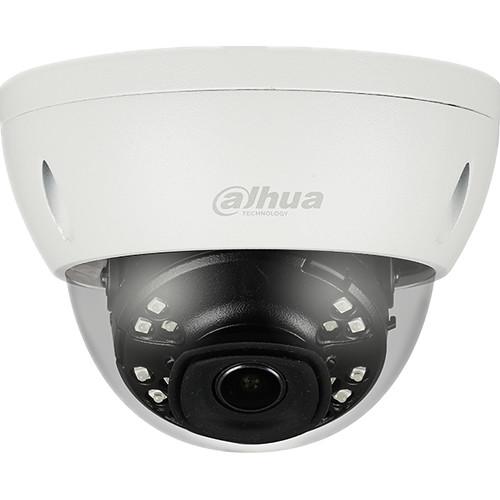

User Manual for Dahua Technology Pro Series N44CL53 4MP Outdoor ePoE Network Mini-Dome Camera with 3.6mm Lens & Night Vision

• Product category: Wired IP Cameras Dahua Technology
• Brand: Dahua Technology
• Description and content of package
• Technical information and basic settings
• Frequently asked questions – FAQ
• Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
• Authorized service for Dahua Technology Wired IP Cameras

Product description

• Built-in IVS (Intelligent Video System) analytic algorithms monitor a scene for tripwire violations, intrusion detection, and abandoned or missing objects, as well as support for tamper & face detection

• Ethernet over Coaxial (EoC) technology

• Enhanced Power over Ethernet (ePoE) technology enables long distance power and data transmission via Ethernet or coaxial cables up to 3281'

• ePoE technology converts existing coax-based analog systems into IP systems, reducing cable & peripheral device requirements, saving you time & money

• IR cut filter for day and night functionality

• Smart IR

• Auto and manual IR on/off control

• Smart H.265+, H.265, Smart H.264+, and H.264 video compression

• Triple streaming

• Unicast and multicast streaming methods

• CBR and VBR

• Fixed focus control

• 4.92' close focus distance

• 16x digital zoom

• Camera pivots from 0 to 355° horizontally & from 0 to 65° vertically

• 0 to 355° rotation range

• True wide dynamic range (120 dB), backlight compensation, and highlight compensation

• >50 dB S/N ratio

• White balance modes include auto, natural, street lamp, outdoor, and manual

• Auto and manual gain control

• 3D-DNR

• Motion detection for 4 zones (rectangular)

• ROI (region of interest) for 4 zones

• Privacy masking for 4 zones (rectangular)

• Flip perspective 0, 90, 180, and 270° and mirroring

• ONVIF compliant

• Audio I/O ports

• Alarm I/O port

• Reset button

• Up to 20 users

• Compatible with Internet Explorer, Chrome, Firefox, Safari, iOS, and Android

• Records to local PC and NAS edge storage

• IP67- and IK10-rated metal enclosure that is suitable for outdoor use in areas at risk of vandalism

• 6kV lightning protection

DORI Distance
• • 262' / 80m (detect)
  • 105' / 32m (observe)
  • 52' / 16m (recognize)
  • 26' / 8m (identify)

Upload User Manual

Please enter here the link to the user manual of this product: OR Enter here the file with the user manual of this product from your computer/phone: (60MB max; Permitted formats: PDF) 0%

Technical parameters

Dahua Technology Pro Series Specs

Memory	512 MB RAM / 32 MB Flash
Recording Media	microSD (Up to 128 GB)
Pan/Tilt	None
Alarm I/O	1 / 1
I/O Connections	1 x RJ45 1 x Power
IR Range	98.43' / 30 m
Video Management Software	SmartPSS, DSS
Internal Storage	None
External Storage Options	Local PC, NAS
Power Source	DC, PoE 802.3af (15 W)
Power Consumption	5 W
Material of Construction	Metal (Unspecified Type)
Operating Temperature	-22 to 140°F / -30 to 60°C
Storage Temperature	-22 to 140°F / -30 to 60°C
Operating Humidity	0 to 95%
IP Rating	IP67
IK Rating	IK10
