User manual
Dahua Technology Pro Series N51BL23 5MP

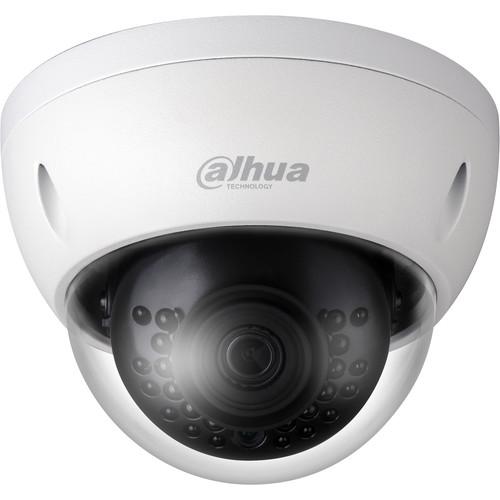

User Manual for Dahua Technology Pro Series N51BL23 5MP Outdoor Network Mini Dome Camera with Night Vision & 3.6mm Lens

• Product category: Wired IP Cameras Dahua Technology
• Brand: Dahua Technology
• Description and content of package
• Technical information and basic settings
• Frequently asked questions – FAQ
• Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
• Authorized service for Dahua Technology Wired IP Cameras

Product description

• Built-in IVS (Intelligent Video System) analytic algorithms deliver intelligent functions to monitor a scene for tripwire violations, motion detection, and intrusion detection

• Dual stream encoding with Smart H. 265+ and H.264 dual codecs

• Smart H.265+, H.265, Smart H.264+, H.264, and MJPEG video compression

• IR cut filter for day and night functionality

• Backlight compensation, highlight compensation, and 120 dB true wide dynamic range

• Starlight technology enables low light sensitivity

• Smart IR

• White balance modes include auto, natural, street lamp, outdoor, and manual

• Auto and manual gain control

• 3D-DNR

• Manual adjustments with a 0 to 360° panning range, 0 to 90° tilting range, and 0 to 360° rotation range

• 16x digital zoom

• Detection range of 207 to 262'
  Observation range of 82 to 105'
  Recognition range of 43 to 52'
  Identification range of 20 to 26'

• Motion detection for up to 4 zones

• ROI (region of interest) for up to 4 zones

• Privacy masking for up to 4 areas

• Local PC for instant recording and NAS edge storage

• IP67- and IK10-rated enclosure that is suitable for outdoor use in areas at risk of vandalism

Upload User Manual

Please enter here the link to the user manual of this product: OR Enter here the file with the user manual of this product from your computer/phone: (60MB max; Permitted formats: PDF) 0%

Technical parameters

Dahua Technology N51BL23 Specs

Memory	512 MB RAM / 0 MB Flash
Recording Media	None
Pan/Tilt	Manual Pan: 360° Manual Tilt: 90°
I/O Connections	1 x RJ45
IR Illuminators	24 x 850 nm
IR Range	98.43' / 30.00 m
Video Management Software	Smart PSS, DSS
Internal Storage	None
External Storage Options	Local PC, NAS
Power Source	DC, PoE 802.3af (15 W)
Power Consumption	4.2 W
Operating Temperature	-22 to 140°F / -30 to 60°C
Operating Humidity	0 to 95%
IP Rating	IP67
IK Rating	IK10
