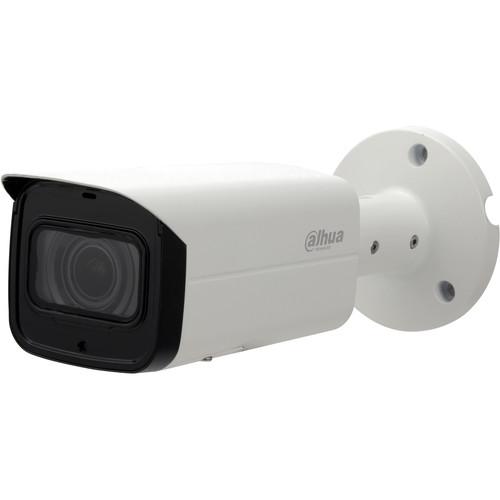

User Manual for Dahua Technology Pro Series N52BF3Z 5MP Outdoor Network Bullet Camera with 2.7-13.5mm Lens & Night Vision Click to enlarge the picture
Contents of the user manual for the Dahua Technology Pro Series N52BF3Z 5MP
- Product category: Wired IP Cameras Dahua Technology
- Brand: Dahua Technology
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Dahua Technology Wired IP Cameras
|
User manual for the Dahua Technology Pro Series N52BF3Z 5MP contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Dahua Technology product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Dahua Technology user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Dahua Technology product will considerably shorten its lifespan!
|
Product description The Pro Series N52BF3Z 5MP Outdoor Network Bullet Camera with Night Vision from Dahua Technology is equipped with a 1/2.7" progressive scan CMOS sensor to capture 2592 x 1944 resolution video at 20 fps. Its 2.7-13.5mm varifocal lens features a 95-27° horizontal field of view and 4 IR LEDs that deliver a night vision range up to 197'. A built-in microSD slot supports cards up to 128GB. microSD cards are available separately. Integrated PoE technology simplifies connectivity by transmitting power and data via one cable. The camera is housed in an IP67-rated metal enclosure that is suitable for outdoor use. - Built-in IVS (Intelligent Video System) analytic algorithms deliver intelligent functions to monitor a scene for tripwire violations, motion detection, and intrusion detection
- Dual stream encoding with Smart H. 265+ and H.264 dual codecs
- Smart H.265+, H.265, Smart H.264+, H.264, and MJPEG video compression
- IR cut filter for true day and night functionality
- Backlight compensation, highlight compensation, and 120 dB true wide dynamic range
- Starlight technology enables low light sensitivity
- White balance modes include auto, natural, street lamp, outdoor, and manual
- Auto and manual gain control
- Manual adjustments with a 0 to 360° panning range, 0 to 90° tilting range, and 0 to 360° rotation range
- 5x optical and 16x digital zoom
- Motion detection for up to 4 zones
- Detection range of 210 to 728'
Observable range of 85 to 292'
Recognition range of 43 to 144'
Identification range of 20 to 72' - ROI (region of interest) for up to 4 zones
- IP67-rated metal enclosure that is suitable for outdoor use
UPC: 819290021271 In the Box Dahua Technology Pro Series N52BF3Z 5MP Outdoor Network Bullet Camera with 2.7-13.5mm Lens & Night Vision Limited 5-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Dahua Technology Pro Series N52BF3Z 5MP Outdoor Network Bullet Camera with 2.7-13.5mm Lens & Night Vision in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersDahua Technology Pro Series Specs | | | Sensor | 5 MP 1/2.7" CMOS | | Focal Length | 2.7 to 13.5mm | | Maximum Aperture | f/1.6 | | Zoom | Optical: 5x
Digital: 16x | | Lens Field of View | Horizontal: 95 to 27°
Vertical: 70 to 20° | | IR Cut Filter | Mechanical | | Day/Night | Yes | | Minimum Illumination | Color: 0.008 Lux
B&W: 0 Lux | | Shutter Speed | 1/100000 to 3 Seconds | | | | Streaming Resolution | 2592 x 1944 at 20 fps (10.24 Mb/s H.264)
1304 x 1296 at 30 fps (10.24 Mb/s H.264) | | Supported Video Compression | H.264, H.264+, H.265, H.265+, MJPEG | | Multi-View Streaming | , 2 Streams | | Automatic Gain Control | Yes | | | | Supported Protocols | ARP, Bonjour, DHCP, DNS, FTP, HTTP, , ICMP, IGMP, IPv4/v6, NTP, PPPoE, QoS Layer 3 DiffServ, RTP, RTSP, SMTP, SNMP v1/v2c/v3 (MIB-II), TCP, UDP, UPnP | | | | Analytics | Tampering, Storage Error, Network Error, Tripwire, Intrusion | | Event Trigger | Yes | | Event Action | Recording, Notification, Alarm | | | | Mobile Operating Systems | iOS, Android | | | | Memory | 512 MB RAM / 32 MB Flash | | Recording Media | microSD (Up to 128 GB) | | Pan/Tilt | Manual Pan: 360°
Manual Tilt: 90° | | I/O Connections | 1 x RJ45 | | IR Illuminators | 4 x 850 nm | | IR Range | 197' / 60.05 m | | Video Management Software | Smart PSS, DSS | | Internal Storage | None | | External Storage Options | Local PC, NAS | | Power Source | DC, PoE 802.3af (15 W) | | Power Consumption | 12.6 W | | Operating Temperature | -22 to 140°F / -30 to 60°C | | Storage Temperature | -22 to 140°F / -30 to 60°C | | Operating Humidity | 0 to 95% | | IP Rating | IP67 | | Dimensions | H: 9.6 x W: 3.1 x L: 3.0" / H: 244.1 x W: 79.0 x L: 75.9 mm | | Weight | 1.8 lb / 0.8 kg | | | | Package Weight | 2.405 lb | | Box Dimensions (LxWxH) | 12.25 x 6.15 x 5.65" |
