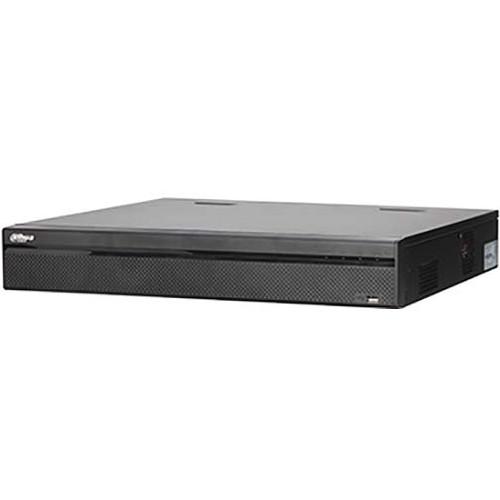

User Manual for Dahua Technology Pro Series N54A4P 24-Channel 12MP 4K NVR Click to enlarge the picture
Contents of the user manual for the Dahua Technology Pro Series N54A4P 24-Channel
- Product category: Network Video Recorders (NVRs) Dahua Technology
- Brand: Dahua Technology
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Dahua Technology Network Video Recorders (NVRs)
|
User manual for the Dahua Technology Pro Series N54A4P 24-Channel contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Dahua Technology product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Dahua Technology user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Dahua Technology product will considerably shorten its lifespan!
|
Product description Record from and manage up to 24 cameras with the N54A4P NVR from Dahua Technology. This NVR supports IP cameras up to 12 MP. It comes equipped with four SATA III ports that support up to 10TB HDD capacity per disk, for a maximum of 40TB (HDDs available separately). Smart H.265+, H.265, Smart H.264+, H.264, and MJPEG video compression offers the best possible recording and playback quality, while optimizing network bandwidth.
This NVR supports up to 128 users. An RCA audio I/O makes two-way talk possible. One VGA and two HDMI ports enable video output to an external monitor (available separately), with the first HDMI port outputting video at up to 4K UHD resolution. ONVIF compliance for version 2.4 offers interoperability with ONVIF IP cameras. - Embedded quad-core processor and Linux OS
- Automatic Network Replenishment (ANR) technology
- Automatic license plate capture
- Customized live view layout with support for panoramic displays
- 320 Mb/s maximum incoming bandwidth
- 16 alarm inputs and 6 relay outputs
- 1 USB 2.0 and 2 USB 3.0 ports
- RS-232 port for PC communication and keyboard
- RS-485 connection for PTZ control
- 3D intelligent positioning with Dahua PTZ cameras
- Compatible with iOS and Android
- Backup via USB device, network, or eSATA device
- Intelligent Video System (IVS)
- IVS triggers an alarm and take a defined action for the following events:
- Tampering with the camera
- Camera loses or changes focus drastically
- Memory card error
- Network error
- Unauthorized access
- Motion detection
- Tripwire
- Intrusion detection
- Scene change detection
- Abandoned/missing object detection
- Facial detection and recognition
- People counting
- Heat mapping
UPC: 816116027837 In the Box Dahua Technology Pro Series N54A4P 24-Channel 12MP 4K NVR (No HDD) Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Dahua Technology Pro Series N54A4P 24-Channel 12MP 4K NVR in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersDahua Technology Pro Series Specs | | | Main Processor | Embedded quad-core processor | | Operating System | Embedded Linux | | | | IP Camera Inputs | 24 | | Two-Way Audio | 1 x RCA input
1 x RCA output | | | | Interface | HDMI Port 1: 3840 x 2160 (4K UHD)
HDMI Port 2: 1920 x 1080
VGA: 1920 x 1080 | | Output Native Resolutions | 3840 x 2160, 1920 x 1080, 1280 x 1024, 1280 x 720, 1024 x 768 | | Maximum Decoding | 2 channels of 12 MP at 20 fps
2 channels of 12 MP at 15 fps
4 channels of 8 MP at 30 fps
5 channels of 6 MP at 30 fps
6 channels of 5 MP at 30 fps
8 channels of 4 MP at 30 fps
11 channels of 3 MP at 30 fps
16 channels of 1080p at 60 fps
16 channels of 1080p/720p at 30 fps | | Multi-Screen Display | First Screen: 1/4/8/9/16/25
Second Screen: 1/4/8/9/16 | | OSD | Camera title, time, video loss, camera lock, motion detection, recording | | | | Compression | Smart H.265+, H.265, Smart H.264, H.264, MJPEG | | Supported IP Camera Resolution | 12 MP, 8 MP, 6 MP, 5 MP, 4 MP, 3 MP, 1080p, 1.3 MP, 720p, D1, CIF | | Maximum Incoming Bandwidth | 320 Mb/s | | Bit Rate | 16 kb/s to 20 Mb/s per channel | | Recording Modes | Manual, schedule (regular, motion detection), alarm, IVS, stop | | Recording Intervals | 1 to 120 minutes (60 minutes default)
Pre-Record: 1 to 30 seconds
Post-Record: 10 to 300 seconds | | | | Trigger Events | Recording, PTZ, tour, alarm out, video push, email, FTP, snapshot, buzzer, and screen tips | | Video Detection | Motion detection, MD Zones: 396 (22 x 18), video loss, and tampering | | Alarm Input | 16
Low-level effective, green terminal interface | | Relay Output | 6
NO/NC programmable, green terminal interface | | | | Sync Playback | 1/4/9/16 | | Video Output | 4 channels at 4K
16 channels at 1080p | | Search Modes | Time/date, alarm, motion detection & exact search (accurate to one second) | | Playback Function | Play, pause, stop, rewind, fast play, slow play, next file, previous file, next camera, previous camera, full screen, repeat, shuffle, backup selection, digital zoom | | Backup Modes | USB device, network, eSATA device | | | | Brand Compatibility | Dahua, Arecont Vision, Axis Communications, Bosch, Brickcom, Canon, CP Plus, Dynacolor, Honeywell, Panasonic, Pelco, Samsung, Sanyo, Sony, Videotec, Vivotek, and others | | | | Ethernet | 1 x RJ45 (10/100/1000M) | | PoE | 24 ports (IEEE802.3af/at), 10/100M | | Forwarding Bandwidth | 320 Mb/s | | Network Protocols | HTTP, HTTPS, TCP/IP, IPv4/IPv6, UPnP, RTSP, UDP, SMTP, NTP, DHCP, DNS, IP filter, PPPoE, DDNS, FTP, alarm server, IP search, (support for Dahua IP cameras, DVRs, NVS) | | Maximum User Access | 128 users | | Mobile Operating Systems | iOS, Android | | Interoperability | ONVIF 2.4, CGI conformant | | | | Internal HDD | 4 x SATA III ports | | HDD Capacity | Up to 10 TB for each HDD, 40 TB maximum
HDDs available separately | | HDD Mode | Single | | eSATA | 1 x eSATA port | | | | USB | 2 x USB 3.0 (rear)
1 x USB 2.0 (front) | | RS-232 | 1 RS-232 port for PC communication and keyboard | | RS-485 | 1 RS-485 connection for PTZ control | | | | Power Supply | Single, 100 to 240 VAC, 50/60 Hz | | Power Consumption | <18 W without HDDs | | PoE Power | 25.5 W single port, 220 W total | | | | Operating Temperature | 14 to 131°F / -10 to 55°C | | Storage Temperature | -4 to 158°F / -20 to 70°C | | Storage Humidity | 0 to 90% RH | | Certifications | CE: EN55032, EN55024, EN50130-4, EN60950-1
Safety: UL 60950-1, CAN/CSA C22.2 No.60960-1
Electromagnetic Compatibility (EMC): FCC Part 15 Subpart B, ANSI C63.4-2014 | | Rack Units | 1.5 RU | | Dimensions | 17.3 x 16.3 x 3.0" / 440 x 413.3 x 76 mm | | Weight | 10.4 lb / 4.7 kg (without HDDs) | | | | Package Weight | 16.1 lb | | Box Dimensions (LxWxH) | 21.1 x 19.7 x 8.2" |
