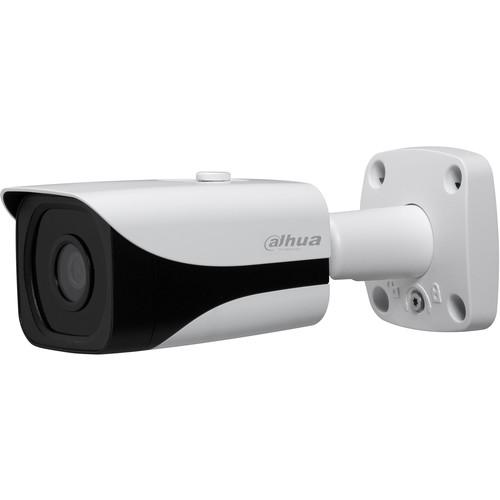

User Manual for Dahua Technology Pro Series N64CB32 6MP Mini Bullet ePoE Network Camera with Night Vision Click to enlarge the picture
Contents of the user manual for the Dahua Technology Pro Series N64CB32 6MP
- Product category: Wired IP Cameras Dahua Technology
- Brand: Dahua Technology
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Dahua Technology Wired IP Cameras
|
User manual for the Dahua Technology Pro Series N64CB32 6MP contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Dahua Technology product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Dahua Technology user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Dahua Technology product will considerably shorten its lifespan!
|
Product description The Dahua Technology Pro Series N64CB32 6MP Mini Bullet ePoE Network Camera features a 1/2.9" progressive scan STARVIS CMOS sensor and 2.8mm fixed lens for capturing videos at a maximum resolution of 3072 x 2048. For use in environments with both bright and low-light conditions that change quickly, true WDR (120 dB) optimizes both the bright and dark areas of a scene at the same time to provide usable video. Built-in IVS (Intelligent Video System) triggers an alarm and takes a defined action for events that include tampering with the camera, errors writing to an onboard microSD card, errors sending or receiving data over the network, and unauthorized access to the camera. The camera also offers tamper detection by recognizing dramatic scene changes and generating a warning message to inspect the camera. ePoE technology offers a plug-and-play solution to transmit power and data over long distances via Ethernet. Enclosed in an IP67-rated housing, the camera can be used for both indoor and outdoor applications. This day/night camera provides 24-hour surveillance thanks to a removable IR cut filter and 2 built-in IR LEDs with a range of up to 131’. The Smart H.265+ is the optimized implementation of the H.265 codec that uses a scene-adaptive encoding strategy, dynamic GOP, dynamic ROI, flexible multi-frame reference structure, and intelligent noise reduction to deliver high-quality video without straining the network. The Smart H.265+ technology reduces bit rate and storage requirements by up to 70% when compared to standard H.264 video compression. With a temperature range of -22 to 140°F, the camera is designed use in harsh temperature environments. With a ±30% input voltage tolerance, the camera can be used for outdoor applications with voltage fluctuations. The 6 kV lightning rating indicates the camera and its structure are protected from the effects of lightning. - 1/2.9" 6MP progressive scan STARVIS CMOS sensor
- Smart H.265+ and H.264 triple-stream encoding
- Maximum resolution of 6MP at 20 fps or 4MP at 30 fps
- Enhanced power and data transmission distances with ePoE
- True Wide Dynamic Range (120 dB) and day/night IR cut filter
- Maximum IR range of 131' with Smart IR
- Accepts microSD cards up to 128GB
- IP67-rated weather-resistant
- Intelligent Video System Alerts
- Tampering with the camera
Error writing to an onboard microSD card
Unauthorized access to the camera - Variable Frame Rates
- Main Stream: 6MP at 20 fps or 4MP at 30 fps / Sub Stream 1: D1 at 30 fps / Sub Stream 2: 720p at 30 fps
Bit Rate Control: CBR/VBR
Bit Rate: H.264: 24 to 10,240 kbps, H.265: 14 to 9984 kbps - Video
- Day/Night: Auto (ICR), Color, B&W
BLC Mode: BLC, HLC, WDR (120 dB)
White Balance: Auto, Natural, Street Lamp, Outdoor, Manual
Gain Control: Auto, Manual
Noise Reduction: 3D DNR
Motion Detection: Off, On (4 Zones, Rectangle)
Region of Interest: Off, On (4 Zones)
Mirror: Off, On
Privacy Masking: Off, On (4 Areas, Rectangle) - Interfaces
- Audio Input: 1 x channel, Output: 1 x channel
Alarm: Input: 2 x channels, 5 mA, 5 VDC / Output: 1 x channel, 300 mA, 12 VDC - Certifications
- Safety: UL60950-1
Electromagnetic Compatibility (EMC): FCC CFR 47 FCC Part 15 Subpart B - Construction
- Casing: Metal
- Close Focus Distance
- 2.95' (0.90 m)
- DORI Distance
- 226' / 69 m (detect / 8 ppf)
92' / 28 m (observe / 19 ppf)
46' / 14 m (recognize / 38 ppf)
23' / 7 m (identify / 76 ppf) UPC: 819290021219 In the Box Dahua Technology Pro Series N64CB32 6MP Mini Bullet ePoE Network Camera with Night Vision Limited 5-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Dahua Technology Pro Series N64CB32 6MP Mini Bullet ePoE Network Camera with Night Vision in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersDahua Technology Pro Series Specs | | | Sensor | 6 MP 1/2.9" CMOS | | Focal Length | 2.8mm | | Maximum Aperture | f/1.6 | | Zoom | Digital: 16x | | Lens Field of View | Horizontal: 98°
Vertical: 67° | | IR Cut Filter | Mechanical | | Day/Night | Yes | | Minimum Illumination | Color: 0.04 Lux
B&W: 0 Lux | | Shutter Speed | 1/100000 to 1/3 Seconds | | | | Streaming Resolution | 3072 x 2048 at 20 fps
2688 x 1520 at 30 fps | | Supported Video Compression | H.264, H.264+, H.265, H.265+, MJPEG | | Multi-View Streaming | , 3 Streams | | Automatic Gain Control | Yes | | | | Streaming | Two-Way | | Audio Formats | AAC, G.711, G.726 | | Built-In Mic | No | | Built-In Speaker | No | | | | Security | HTTPS, IEEE 802.1X | | Supported Protocols | ARP, Bonjour, DHCP, DNS, DynDNS, FTP, HTTP, , ICMP, IGMP, IPv4/v6, NTP, PPPoE, QoS Layer 3 DiffServ, RTP, RTSP, SMTP, SNMP v1/v2c/v3 (MIB-II), TCP, UDP, UPnP | | | | Application Programming Interface (API) | ONVIF, PSIA, CGI | | Event Trigger | Yes | | Event Action | Recording, Notification, Alarm | | Data Streaming | Yes | | Built-In Installation Aids | None | | | | Mobile Operating Systems | iOS, Android | | | | Memory | 512 MB RAM / 32 MB Flash | | Recording Media | microSD (Up to 128 GB) | | Pan/Tilt | Manual Pan: 360°
Manual Tilt: 90° | | Alarm I/O | 2 / 1 | | I/O Connections | 1 x RJ45 | | IR Range | 131' / 39.93 m | | Video Management Software | Smart PSS, DSS | | Internal Storage | None | | External Storage Options | Local PC, NAS | | Power Source | DC, PoE 802.3af (15 W) | | Power Consumption | 7.5 W | | Operating Temperature | -22 to 140°F / -30 to 60°C | | Storage Temperature | -22 to 140°F / -30 to 60°C | | IP Rating | IP67 | | Dimensions | H: 7.1 x W: 2.7 x L: 2.7" / H: 180.3 x W: 68.6 x L: 68.6 mm | | Weight | 0.9 lb / 0.4 kg | | | | Package Weight | 1.225 lb | | Box Dimensions (LxWxH) | 8.15 x 4.2 x 3.9" |
