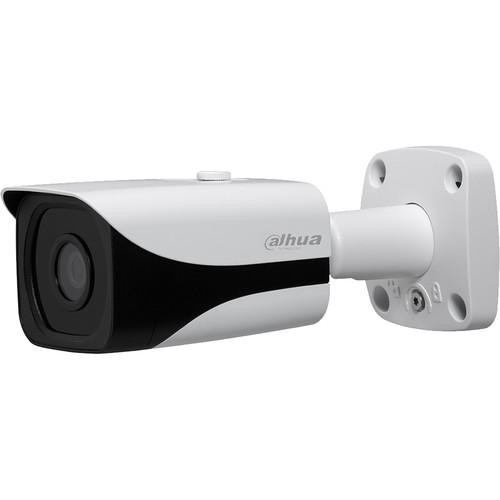

User Manual for Dahua Technology Pro Series N84CB34 8MP Outdoor ePoE Network Mini-Bullet Camera with Night Vision Click to enlarge the picture
Contents of the user manual for the Dahua Technology Pro Series N84CB34 8MP
- Product category: Wired IP Cameras Dahua Technology
- Brand: Dahua Technology
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Dahua Technology Wired IP Cameras
|
User manual for the Dahua Technology Pro Series N84CB34 8MP contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Dahua Technology product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Dahua Technology user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Dahua Technology product will considerably shorten its lifespan!
|
Product description The Pro Series N84CB34 8MP Outdoor ePoE Network Mini-Bullet Camera from Dahua Technology uses a 1/2.5" progressive scan CMOS sensor to capture 4K UHD video at 15 fps. Two IR LEDs provide up to 131' of night vision. The 4mm fixed lens delivers an 88° horizontal field of view. An onboard memory card slot supports microSD cards up to 128GB. microSD cards are available separately. Integrated PoE technology simplifies connectivity by enabling the transfer of power and data through a single cable. Additionally, ePoE technology offers a cost-effective solution for transmitting power and data over long distances via Ethernet or coaxial cables.
This mini-bullet camera is housed in an IP67-rated metal enclosure that is suitable for outdoor use. - Built-in IVS (Intelligent Video System) analytic algorithms monitor a scene for tripwire violations, intrusion detection, and abandoned or missing objects, as well as support for tamper & face detection
- Ethernet over Coaxial (EoC) technology
- Enhanced Power over Ethernet (ePoE) technology enables long distance power and data transmission via Ethernet or coaxial cables for up to 3281'
- ePoE technology converts existing coax-based analog systems into IP systems, reducing cable & peripheral device requirements, saving you time & money
- IR cut filter for day and night functionality
- Auto and manual IR on/off control
- Smart H.265+, H.265, Smart H.264+, and H.264 video compression
- Unicast and multicast streaming methods
- 5.58' close focus distance
- True wide dynamic range (120 dB), backlight compensation, and highlight compensation
- White balance modes include auto, natural, street lamp, outdoor, and manual
- Auto and manual gain control
- Motion detection for 4 zones (rectangular)
- ROI (region of interest) for 4 zones
- Privacy masking for 4 zones (rectangular)
- Flip perspective 0, 90, 180, and 270°
- Compatible with Internet Explorer, Chrome, Firefox, Safari, iOS, and Android
- Local PC for instant recording and NAS edge storage
- IP67-rated metal enclosure that is suitable for outdoor use
- DORI Distance
-
- 292' / 89m (detect)
- 118' / 36m (observe)
- 59' / 18m (recognize)
- 30' / 9m (identify)
UPC: 819290024524 In the Box Dahua Technology Pro Series N84CB34 8MP Outdoor ePoE Network Mini-Bullet Camera with Night Vision Installation Accessories Bag Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Dahua Technology Pro Series N84CB34 8MP Outdoor ePoE Network Mini-Bullet Camera with Night Vision in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersDahua Technology N84CB34 Specs | | | Sensor | 8 MP 1/2.5" CMOS | | Focal Length | 4mm | | Maximum Aperture | f/1.6 | | Zoom | Digital: 16x | | Lens Field of View | Horizontal: 88°
Vertical: 48° | | IR Cut Filter | Mechanical | | Day/Night | True | | Minimum Illumination | Color: 0.06 Lux
B&W: 0 Lux | | Shutter Speed | 1/100000 to 1/3 Seconds | | | | Streaming Resolution | 3840 x 2160 at 15 fps
2048 x 1536 at 30 fps | | Supported Video Compression | H.264, H.264+, H.265, H.265+ | | Multi-View Streaming | Yes, 3 Streams | | Automatic Gain Control | Yes | | | | Security | HTTPS, IEEE 802.1X | | Supported Protocols | ARP, Bonjour, DDNS, DHCP, DNS, FTP, HTTP, ICMP, IGMP, IPv4/v6, NTP, PPPoE, QoS Layer 3 DiffServ, RTP, RTSP, SMTP, SNMP v1/v2c/v3 (MIB-II), TCP, UDP, UPnP | | | | Application Programming Interface (API) | ONVIF, PSIA, CGI | | Analytics | Tampering, Memory Card Error, Network Error, Unauthorized Access, Motion, Tripwire, Intrusion, Scene Change, Abandoned/Missing Object, Face Detection | | Event Trigger | Yes | | Event Action | Recording, Notification, Alarm | | Data Streaming | Yes | | | | Mobile Operating Systems | iOS, Android | | | | Memory | 512 MB RAM / 32 MB Flash | | Recording Media | microSD (Up to 128 GB) | | Pan/Tilt | None | | I/O Connections | 1 x RJ45
1 x Power | | IR Range | 131.23' / 40 m | | Video Management Software | SmartPSS, DSS | | Internal Storage | None | | External Storage Options | Local PC, NAS | | Power Source | DC, PoE 802.3af (15 W) | | Power Consumption | 6.5 W | | Material of Construction | Metal (Unspecified Type) | | Operating Temperature | -22 to 140°F / -30 to 60°C | | Storage Temperature | -22 to 140°F / -30 to 60°C | | Operating Humidity | 0 to 95% | | IP Rating | IP67 | | Dimensions | H: 2.8 x W: 2.8 x L: 7.1" / H: 70.0 x W: 70.0 x L: 180.0 mm | | Weight | 0.9 lb / 0.4 kg | | | | Package Weight | 1.13 lb | | Box Dimensions (LxWxH) | 8.1 x 4.2 x 3.9" |
