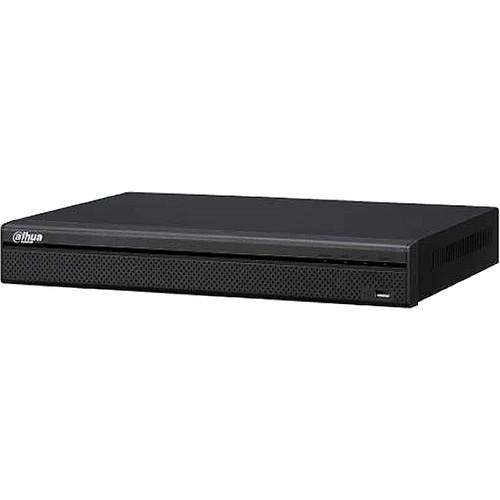

User Manual for Dahua Technology Pro Series X32A1A2 4-Channel Pentabrid 1080p 1U DVR with 2TB Click to enlarge the picture
Contents of the user manual for the Dahua Technology Pro Series X32A1A2 4-Channel
- Product category: Digital Video Recorders (DVRs) Dahua Technology
- Brand: Dahua Technology
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Dahua Technology Digital Video Recorders (DVRs)
|
User manual for the Dahua Technology Pro Series X32A1A2 4-Channel contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Dahua Technology product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Dahua Technology user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Dahua Technology product will considerably shorten its lifespan!
|
Product description The Pro Series X32A1A2 4-Channel Pentabrid 1080p 1U DVR from Dahua Technology lets you upgrade existing video surveillance systems while leveraging existing networks, cabling, and cameras. XVR technology utilizes Pentabrid access that allows simultaneous video recording from HDCVI, AHD, TVI, CVBS, and IP sources. The XVR offers options such as built-in motion detection algorithms, alarm triggers, and customized recording modes. This DVR supports a maximum of 6 channels, with up to 4 channels of HD-CVI/AHD/TVI/CVBS inputs and 2 additional IP channels. It supports 5MP resolution (2560 x 1920) on IP camera inputs for recording and live viewing. The DVR comes with two SATA HDD ports that accept up to 6TB HDD each for a total of 12TB storage (2TB included). It uses Smart H.264+ video compression standard that reduces bit rate and storage requirements. The DVR offers a variety of configurable recording options and schedules that save HDD space and active monitoring time. It monitors incoming video and can be programmed to record if motion is detected or an alarm is triggered. It can also be programmed to record on a schedule or at different intervals. The recording options and schedules can be set for each individual camera or copied to all cameras. The built-in Smart Search function allows an operator to specify a portion of the video to search for a motion detection event. This DVR is suitable for actively monitoring and recording video feeds in a wide range of applications including public venues, retail stores, transportation hubs and access ways, personal property and homes, and educational institutions. - Smart H.264+/H.264 dual-stream video compression
- Offers real-time 1080p recording resolution
- Supports HDCVI/AHD/TVI/CVBS/IP video inputs (auto detectable)
- Four HD-CVI camera channel inputs
- Two IP camera channel inputs, up to 5MP per channel
- Maximum 96 Mb/s incoming bandwidth
- Two SATA HDD ports accept up to 6TB HDD each, total 12TB storage (2TB included)
- Built-in Smart Search function
UPC: 816116025611 Table of Contents
|
Upload User Manual
Have you got an user manual for the Dahua Technology Pro Series X32A1A2 4-Channel Pentabrid 1080p 1U DVR with 2TB in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersDahua Technology X32A1A2 Specs | | | Main Processor | Embedded processor | | Operating System | Embedded Linux | | | | Interface | 1 x HDMI
1 x VGA | | Resolution | 1920 x 1080, 1280 x 1024, 1280 x 720, 1024 x 768 | | Multi-Screen Display | 1/4/6 | | On-Screen Display | Camera title, time, video loss, camera lock, motion detection, and recording | | | | Triggering | Recording, PTZ, tour, alarm out, video push, email, FTP, snapshot, buzzer, and screen tips | | Video Detection | Motion detection
MD Zones: 396 (22 x 18)
Video loss
Tampering
Diagnosis | | Alarm Input | 4 | | Relay Output | 3 | | | | Playback | 1/4 | | Search Modes | Time/date, alarm, motion detection, and exact search (accurate to 1 sec) | | Playback Function | Play, pause, stop, rewind, fast play, slow play, next file, previous file, next camera, previous camera, full screen, repeat, shuffle, back up selection, and digital zoom | | Backup Modes | USB device network | | | | Internal HDD | 2 x SATA port, up to 6 TB capacity (2 TB included) | | HDD Mode | Single | | | | USB | 2 x USB 2.0 port | | RS-485 | 1 x port for PTZ control | | | | Third Party Software | Dahua, Arecont Vision, Axis, Bosch, Brickcom, Canon, CP Plus, Dynacolor, Honeywell, Panasonic, Pelco, Samsung, Sanyo, Sony, Videotec, Vivotek, and others | | | | Camera Inputs | HD-CVI: 4 channels
IP: 2 with up to 5 MP resolution support per channel | | Audio Connections | Audio In: 4
Audio Out: 1 | | Two-way Audio | Reuse audio in (1-channel) / out, RCA | | | | Compression | Smart H.264+/H.264 | | Resolution | 1080p, 720p, 960H, D1, HD1, BCIF, CIF, QCIF | | Recording Rate | Main Stream: 1 to 25/30 fps at 1080p, 720p, 960H, D1, HD1, BCIF, CIF, QCIF
Sub Stream: 1 to 25/30 fps at D1, CIF, QCIF | | Bit Rate | 1 to 6144 kb/s per channel | | Audio Record Mode | Manual, schedule (regular, continuous), motion detection (video motion detection, video loss, tampering), alarm, and stop | | Record Length | 1 to 60 minutes (default 60 minutes)
Pre-Record: 1 to 30 sec
Post-Record: 10 to 300 sec | | | | Interface | 1 x RJ45 port (100M) | | Network Function | HTTP, TCP/IP, IPv4/IPv6, UPnP, RTSP, UDP, SMTP, NTP, DHCP, DNS, IP filter, PPPoE, DDNS, FTP, Alarm Server, IP Search (supports Dahua IP cameras, DVRs, NVS) | | Maximum User Access | 128 users | | Operating System | iOS and Android | | Interoperability | ONVIF 2.4.1, CGI conformant | | | | Power Supply | 12 VDC, 4 A | | Power Consumption | <15 W (without HDD) | | | | Operating Conditions | 14 to 131°F / -10 to 55°C, 86 to 106 kpa | | Storage Temperature | 32 to 122°F / 0 to 50°C | | Storage Humidity | 0 to 90% RH | | | | Installation | Desktop installation | | Dimensions | 14.7 x 11.2 x 2.2" / 375 x 285 x 55 mm, 1U | | Weight | 5.2 lb / 2.35 kg without HDD |
