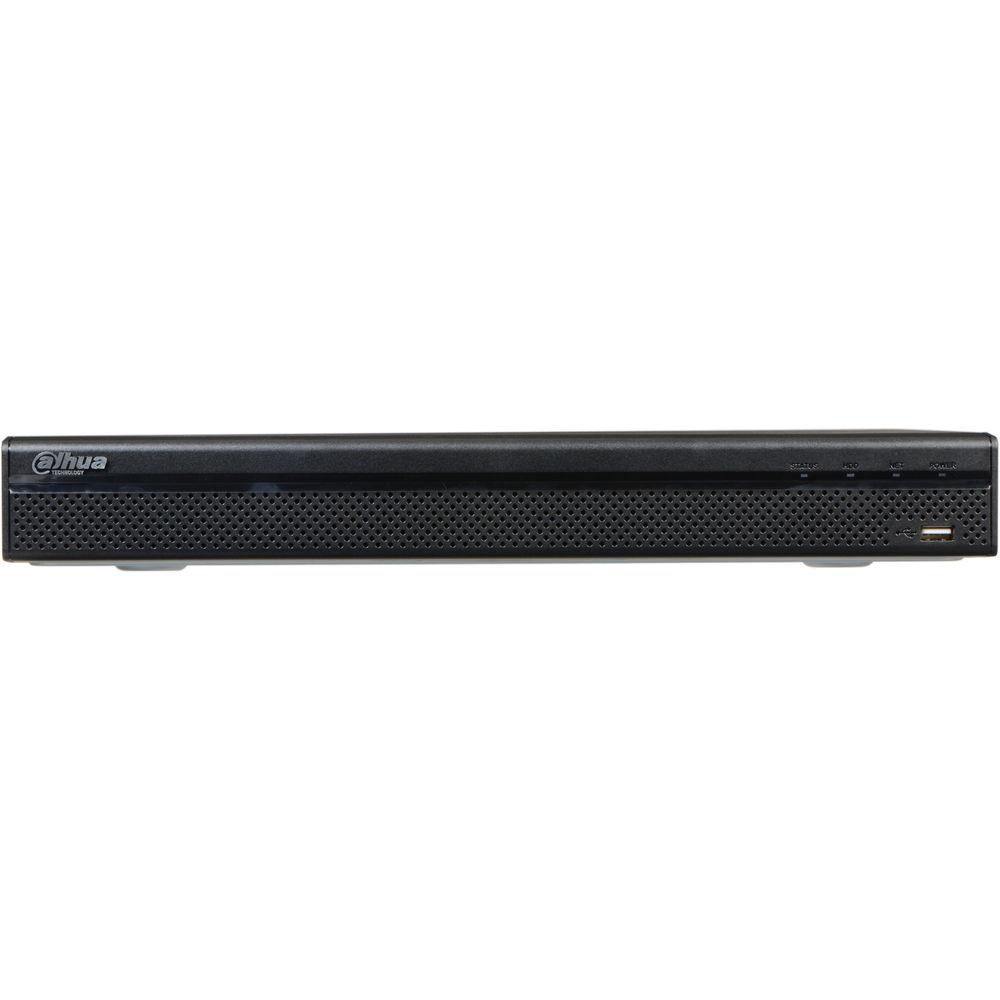

User Manual for Dahua Technology Pro Series X32A2A4 8-Channel Pentabrid 1080p DVR with 4TB HDD Click to enlarge the picture
Contents of the user manual for the Dahua Technology Pro Series X32A2A4 8-Channel
- Product category: Digital Video Recorders (DVRs) Dahua Technology
- Brand: Dahua Technology
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Dahua Technology Digital Video Recorders (DVRs)
 |
User manual for the Dahua Technology Pro Series X32A2A4 8-Channel contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Dahua Technology product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Dahua Technology user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Dahua Technology product will considerably shorten its lifespan!
|

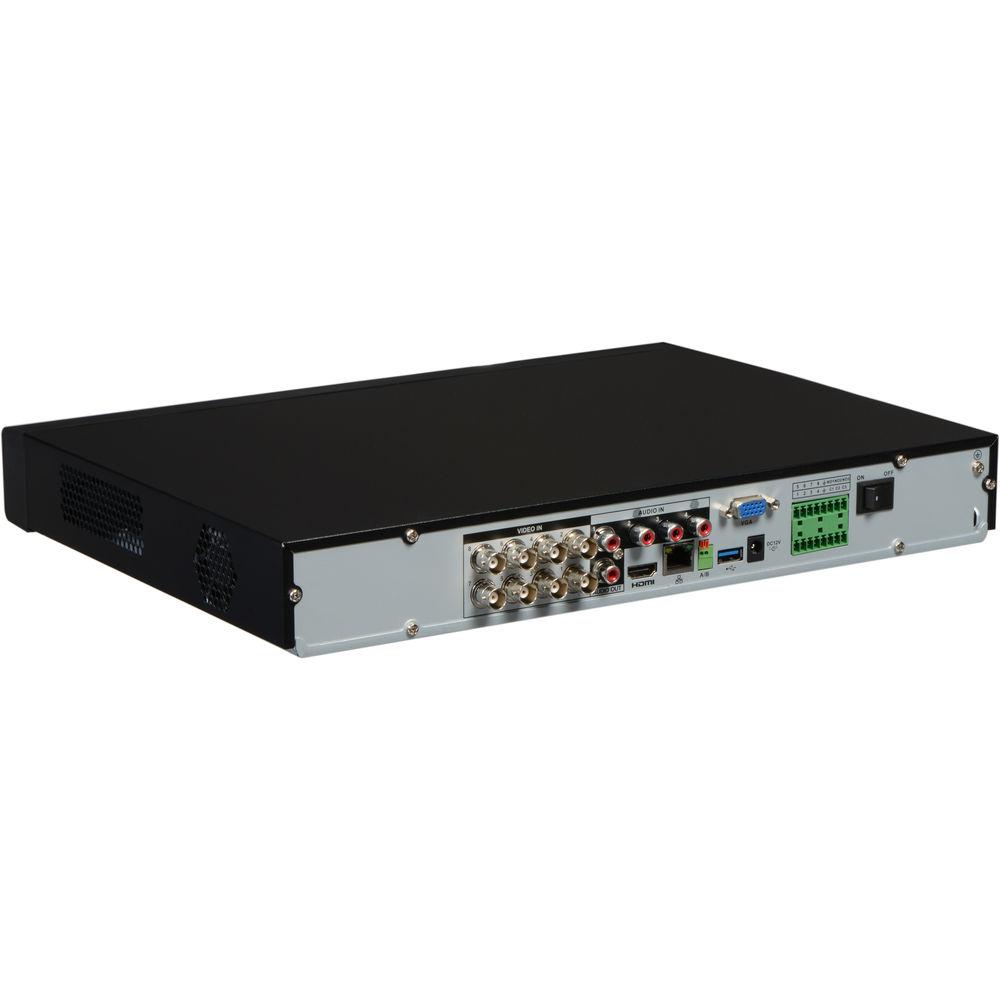

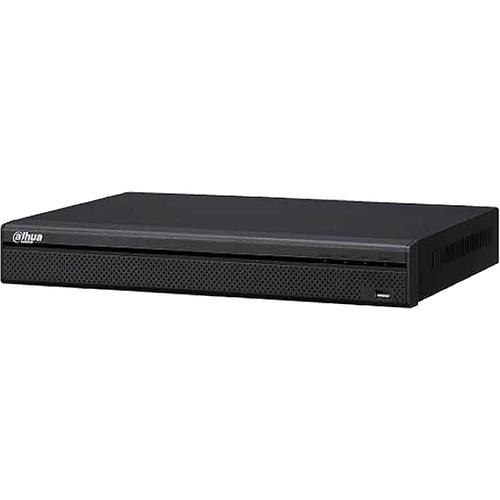

Product description The Pro Series X32A2A4 8-Channel Pentabrid 1080p 1U DVR with 4TB HDD from Dahua Technology allows you to record from up to 8 analog cameras in HD-CVI, HD-TVI, AHD, or CVBS formats, and from up to four additional IP cameras. This DVR records analog video at up to 1080p resolution, or 5MP resolution when using IP cameras. It is equipped with two SATA HDD ports that accept up to 6TB HDD each for a total of 12TB storage (4TB preinstalled). Smart H.264+ and H.264 video compressions optimize bandwidth use to deliver the best recording and playback quality possible. HDMI and VGA outputs allow you to view footage live on a monitor (available separately).
This DVR is ONVIF-compliant for version 2.4.1 to provide interoperability across surveillance devices. It has an Ethernet network port and supports up to 128 users. - Real-time 1080p recording resolution
- Smart H.264+ / H.264 dual-stream video compression
- Built-in motion detection algorithms, alarm triggers, and customized recording modes
- Built-in Smart Search function
- IVS (intelligent video system) allows you to monitor for motion, tripwire violations, intrusion detection, scene changes, and abandoned or missing objects
- Auto-detect feature recognizes incoming signal formats of each attached camera, simplifying installation and operation
- Four audio inputs and one audio output
- Spot Output enables you to view a secondary monitor assigned to select cameras or video inputs
- Remote viewing via iOS and Android mobile devices
UPC: 816116025697 In the Box Dahua Technology Pro Series X32A2A4 8-Channel Pentabrid 1080p DVR with 4TB HDD Power Cord Mouse HDD Ribbon Cable Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Dahua Technology Pro Series X32A2A4 8-Channel Pentabrid 1080p DVR with 4TB HDD in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersDahua Technology X32A2A4 Specs | | | Main Processor | Embedded processor | | Operating System | Embedded Linux | | | | Interface | 1 x HDMI
1 x VGA | | Resolution | 1920 x 1080, 1280 x 1024, 1280 x 720, 1024 x 768 | | Multi-Screen Display | 1/4/8/9/16 | | On-Screen Display | Camera title, time, video loss, camera lock, motion detection, and recording | | | | Triggering | Recording, PTZ, tour, alarm out, video push, email, FTP, snapshot, buzzer, and screen tips | | Video Detection | Motion detection
MD Zones: 396 (22 x 18)
Video loss
Tampering
Diagnosis | | Alarm Input | 8 | | Relay Output | 3 | | | | Playback | 1/4/9 | | Search Modes | Time/date, alarm, motion detection, and exact search (accurate to 1 second) | | Playback Function | Play, pause, stop, rewind, fast play, slow play, next file, previous file, next camera, previous camera, full screen, repeat, shuffle, backup selection, and digital zoom | | Backup Modes | USB device and network | | | | Internal HDD | 2 x SATA port, up to 6 TB capacity (4 TB included) | | HDD Mode | Single | | | | USB | 1 x USB 2.0 port
1 x USB 3.0 port | | RS-485 | 1 x RS-485 port for PTZ control | | | | Device Support | Dahua, Arecont Vision, Axis, Bosch, Brickcom, Canon, CP Plus, Dynacolor, Honeywell, Panasonic, Pelco, Samsung, Sanyo, Sony, Videotec, Vivotek, and others | | | | Standard | Tampering with the camera
Error writing to an onboard microSD card
Error sending or receiving data over the network
Unauthorized access to the camera | | Premium | Motion: An object moves through any part of the scene.
Tripwire: A target crosses a user-defined line.
Intrusion: A target enters or exits a defined perimeter.
Scene Change: A person or object moves the camera to change the scene or covers the camera to obscure the scene.
Abandoned/Missing Object: A target leaves an object in designated area, or a target removes an object from the same designated area. | | | | Camera Inputs | Analog Inputs: 8 (1080p at 30 fps per channel)
IP: 4 (up to 5 MP per channel) | | Audio Connections | Audio In: 4
Audio Out: 1 | | Two-way Audio | Reuse audio in (1-channel) / out, RCA | | | | Compression | Smart H.264+, H.264 | | Resolution | 1080p (1920 x 1080), 720p (1280 x 720), 960H, D1, HD1, BCIF, CIF, QCIF | | Record Rate | Main Stream: 1080p at 30 fps, or 1080N, 720p, 960H, D1, HD1, BCIF, CIF, QCIF at 30 fps
Sub Stream: D1, CIF, QCIF at 30 fps | | Bit Rate | 1 to 6144 kb/s per channel | | Audio Record Mode | Manual, schedule (regular, continuous), motion detection (video detection: motion detection, video loss, tampering), alarm, and stop | | Record Length | 1 to 60 minutes (60 minutes default)
Pre-Record: 1 to 30 seconds
Post-Record: 10 to 300 seconds | | | | Interface | 1 x RJ45 port (1000 MB) | | Network Function | HTTP, TCP/IP, IPv4/IPv6, UPnP, RTSP, UDP, SMTP, NTP, DHCP, DNS, IP Filter, PPPoE, DDNS, FTP, Alarm Server, P2P, IP Search (supports Dahua IP cameras, DVRs, NVS) | | Maximum User Access | 128 users | | Mobile Operating Systems | iOS and Android | | Interoperability | ONVIF 2.4.1, CGI conformant | | | | Power Supply | 12 VDC, 4 A | | Power Consumption | Without HDD: <15 W | | | | Operating Conditions | 14 to 131°F (-10 to 55°C), 86 to 106 kpa | | Storage Temperature | 32 to 122°F (0 to 50°C) | | Storage Humidity | 0 to 90% RH | | | | Safety | Conforms to UL Standard | | Electromagnetic Compatibility | FCC Part 15 Subpart B
ANSI C63.4 - 2014
ICES 003 | | | | Installation | Desktop | | Dimensions | 1U, 14.7 x 11.2 x 2.2" (375 x 285 x 55 mm) | | Weight | Without HDD: 5.2 lb (2.35 kg) |
