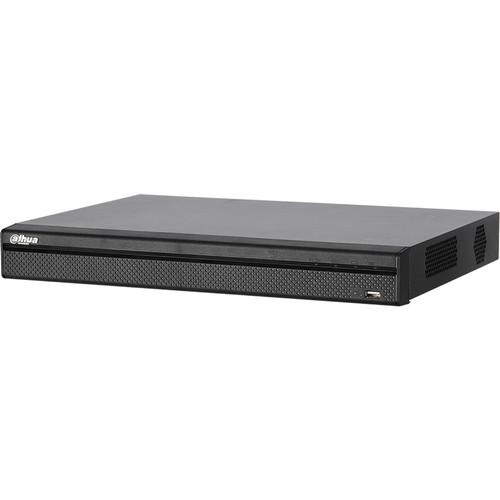

Product description The Pro Series X52A3A 16-Channel 1080p HD-CVI Pentabrid DVR with 1TB HDD from Dahua Technology allows users to record from up to sixteen analog cameras via HD-CVI, HD-TVI, AHD, or CVBS inputs, and up to eight IP cameras. This DVR records analog video at up to 1080p resolution, or 6MP resolution per IP channel. 1TB HDD storage is preinstalled. Storage is expandable to 20TB in the event that more space is required.
This DVR has an RJ45 network interface and supports up to 128 users. It is compatible with iOS and Android. HDMI and VGA video outputs enable users to view footage on a monitor (available separately). ONVIF 16.12 compliance enables interoperability with other surveillance products. - Key Features
-
- Pentabrid technology enables simultaneous recording from HD-CVI, AHD, HD-TVI, CVBS, and IP sources
- Embedded processor and Linux OS
- Plug-and-play operation
- 16 HD-CVI/AHD/HD-TVI/CVBS BNC auto-detect camera inputs
- Smart H.265+, H.265, Smart H.264+, and H.264 video compression
- Configurable recording options and schedules that save HDD space and active monitoring time
- Up to 6MP camera recording per IP channel
- 96 Mb/s maximum incoming bandwidth
- HDMI and VGA video outputs
- 16 alarm inputs and 3 relay outputs
- Two-way audio supported
- 1000M RJ45 port
- 1 USB 2.0 port and 1 USB 3.0 port
- RS-485 port for PTZ control
- Built-in smart search
- Smart fan design turns fan on or off based on the CPU temperature, conserving electricity & reducing fan noise
- Compatible with iOS and Android
- ONVIF 16.12 compliant
- Intelligent Analytics (IVS)
-
- Tripwire
- Intrusion
- Abandoned/missing object
- Facial detection available on the first analog channel
- Channels 1 and 2 support all premium IVS features
- Channels 3 through 8 support tripwire and intrusion premium IVS features
- IVS features are operational only when additional IP channels are inactive
UPC: 819290024333 In the Box Dahua Technology Pro Series X52A3A 16-Channel 1080p HD-CVI Pentabrid DVR with 1TB HDD Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Dahua Technology Pro Series X52A3A 16-Channel 1080p HD-CVI Pentabrid DVR with 1TB HDD in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersDahua Technology X52A3A Specs | Main Processor | Embedded | | Operating System | Embedded Linux | | Analog Camera Inputs | 16 x BNC (supports HD-CVI, AHD, HD-TVI, and CVBS) | | Preview | Preview Ability for Channels 1 & 2: 1296 x 1944 at 20 fps, 1280 x 1440, 1920 x 1080, and 1280 x 720 at 30 fps
Preview Ability Channels 3 to 16: 1280 x 1440, 1920 x 1080, and 1280 x 720 at 30 fps | | HD-CVI | 5 MP, 4 MP, 1080p, and 720p at 30 fps | | AHD | 5 MP, 4 MP, 1080p, and 720p at 30 fps | | HD-TVI | 5 MP, 4 MP, 1080p, and 720p at 30 fps | | CVBS | NTSC | | IP Camera Inputs | 16 + 8, each channel up to 6 MP | | Audio I/O | 4 x RCA inputs
1 x RCA output | | Two-Way Audio | Reuse audio I/O (RCA) | | Video Compression | Smart H.265+, H.265, Smart H.264+, H.264 | | Recording Resolutions | 1296 x 1944, 1280 x 1440, 1920 x 1080, 960 x 1080, 1280 x 720, 960H, D1, CIF | | Recording Rates | Main Stream:
Channel 1: 1296 x 1944 at 20 fps
Channels 2 to 16: 1280 x 1440 at 7 fps
Sub Stream: D1 or CIF at 15 fps | | Maximum Incoming Bandwidth | 96 Mb/s | | Bit Rate | 32 to 6144 kb/s per channel | | Recording Modes | Manual, schedule (regular, continuous), motion detection (video detection, motion detection, video loss, tampering), alarm, stop | | Recording Intervals | 1 to 60 minutes (default 60 minutes)
Pre-Record: 1 to 30 seconds
Post-Record: 10 to 300 seconds | | Audio Compression | AAC (first channel only), G.711A, G.711U, PCM | | Audio Sample Rate | 8 kHz, 16 bits per channel | | Audio Bit Rate | 64 kb/s per channel | | Interface | 1 x HDMI (3840 x 2160)
1 x VGA (1920 x 1080) | | Output Native Resolutions | 1920 x 1080, 1280 x 1024, 1280 x 720 | | Maximum Decoding | 16 channels of 1280 x 1440 at 15 fps
16 channels of 1920 x 1080 at 15 fps
4 channels of 1280 x 1440 at 30 fps | | Multi-Screen Display | IP Extension Mode Disabled: 1/4/8/9/16
IP Extension Mode Enabled: 1/4/8/9/16/25 | | OSD | Camera title, time, video loss, camera lock, motion detection, recording | | Network Interface | 1 x RJ45 (1000M) port | | Network Protocols | HTTP, TCP/IP, IPv4/IPv6, UPnP, RTSP, UDP, SMTP, NTP, DHCP, DNS, IP filter, PPPoE, DDNS, FTP, alarm server, P2P, IP search (supports Dahua IP cameras, DVRs, and NVS) | | Maximum User Access | 128 users | | Mobile OS Support | iOS, Android | | Interoperability | ONVIF 16.12, CGI conformant | | Trigger Events | Recording, PTZ, tour, video push, email, FTP, snapshot, buzzer, and screen tips | | Video Detection | Motion detection, MD Zones: 396 (22 x 18), video loss, tampering, and diagnosis | | Alarm Inputs | 16 | | Relay Outputs | 3 | | Playback | 1/4/9/16 | | Search Modes | Time/date, alarm, motion detection, and exact search (accurate to one second) | | Playback Functions | Play, pause, stop, rewind, fast play, slow play, next file, previous file, next camera, previous camera, full screen, repeat, shuffle, backup selection, and digital zoom | | Backup Modes | USB device, network | | HDD Support | 2 x SATA ports for up to 10 TB capacity for each disk | | Installed HDD | 1 TB | | USB Ports | 1 x USB 2.0
1 x USB 3.0 | | RS-485 Support | 1 x RS-485 port for PTZ control | | Power Supply | 12 VDC, 4 A | | Power Consumption | <10 W without HDD | | Operating Temperature | 14 to 131°F / -10 to 55°C | | Operating Humidity | 10 to 90% RH | | Storage Temperature | -4 to 158°F / -20 to 70°C | | Storage Humidity | 10 to 90% RH | | Certifications | Safety: UL 60950-1
Electromagnetic Compatibility (EMC):
FCC Part 15 Subpart B ICES 003 Issue 6
EN 55032
EN 50130
EN 61000-3-2
EN 61000-3-3
Immunity: EN 55024:2010 | | Installation | Desktop or rackmount | | Rackmount | 1 RU | | Dimensions | 14.8 x 11.3 x 2.1" / 375 x 287 x 53 mm | | Weight | 3.7 lb / 1.7 kg |
