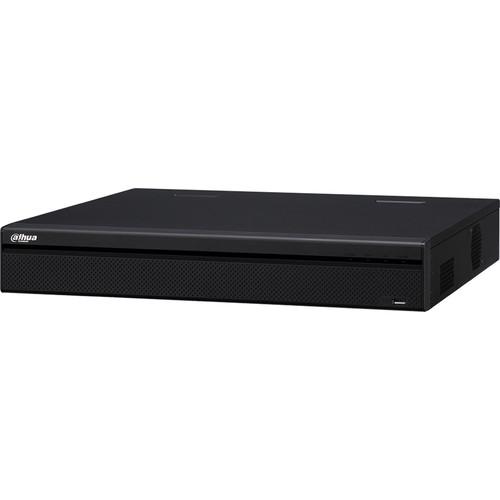

User Manual for Dahua Technology Pro Series X54A5L 32-Channel 1080p HD-CVI Pentabrid DVR Click to enlarge the picture
Contents of the user manual for the Dahua Technology Pro Series X54A5L 32-Channel
- Product category: Digital Video Recorders (DVRs) Dahua Technology
- Brand: Dahua Technology
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Dahua Technology Digital Video Recorders (DVRs)
|
User manual for the Dahua Technology Pro Series X54A5L 32-Channel contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Dahua Technology product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Dahua Technology user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Dahua Technology product will considerably shorten its lifespan!
|
Product description The Pro Series X54A5L 32-Channel 1080p HD-CVI Pentabrid DVR (No HDD) from Dahua Technology enables users to record from and manage up to thirty two cameras. Pentabrid technology offers simultaneous recording from HD-CVI, AHD, HD-TVI, CVBS, and IP sources. This DVR records analog video at up to 1080p resolution, or 8MP per IP channel. Up to 40TB of HDD storage (available separately) is supported. Two-way audio is supported thanks to a microphone input, speaker output, four audio inputs, and one audio output.
This DVR has an RJ45 network interface and supports up to 128 users. It is compatible with iOS and Android. One VGA and two HDMI video outputs enable users to view footage on a monitor (available separately). ONVIF 16.12 compliance enables interoperability with other surveillance devices. - Pentabrid technology enables simultaneous recording from HD-CVI, AHD, HD-TVI, CVBS, and IP sources
- Embedded processor and Linux OS
- 32 HD-CVI/AHD/HD-TVI/CVBS BNC auto-detect camera inputs
- Smart H.265+, H.265, Smart H.264+, and H.264 video compression
- Configurable recording options and schedules that save HDD space and active monitoring time
- Up to 8MP camera recording per IP channel
- 128 Mb/s maximum incoming bandwidth
- One VGA and two HDMI video outputs
- Video output up to 4K UHD via HDMI 1
- Spot monitor output via HDMI 2
- Sixteen alarm inputs and six relay outputs
- One USB 2.0 and two USB 3.0 ports
- RS-232 port for PC communication and keyboard
- RS-485 and RS-422 ports for PTZ control
- Smart fan design turns fan on or off based on the CPU temperature, conserving electricity & reducing fan noise
- Compatible with iOS and Android
- Intelligent Analytics (IVS)
-
- Tripwire
- Intrusion
- Abandoned/missing object
- Face detection available on the first analog channel
- Channels 1 through 16 support tripwire and intrusion detection premium IVS features
- Channels 1 and 2 support abandoned/missing object detection
- IVS features are operational only when additional IP channel feature is inactive
UPC: 819290024357 In the Box Dahua Technology Pro Series X54A5L 32-Channel 1080p HD-CVI Pentabrid DVR (No HDD) Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Dahua Technology Pro Series X54A5L 32-Channel 1080p HD-CVI Pentabrid DVR in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersDahua Technology X54A5L Specs | Main Processor | Embedded | | Operating System | Embedded Linux | | Analog Camera Inputs | 32 x BNC (supports HD-CVI, AHD, HD-TVI, and CVBS) | | Preview | Preview Ability for Channels 1 & 2: 1296 x 1944 at 20 fps, 1280 x 1440 at 30 fps
Preview Ability for Channels 3 to 32: 1280 x 1440 at 30 fps | | HD-CVI | 5 MP, 4 MP, and 1080p at 30 fps
720p at 60 fps | | AHD | 5 MP, 4 MP, 1080p, and 720p at 30 fps | | HD-TVI | 5 MP, 4 MP, 1080p, and 720p at 30 fps | | CVBS | NTSC | | IP Camera Inputs | 32 channels, each channel up to 8 MP | | Audio I/O | 4 x BNC inputs
1 x BNC output | | Two-Way Audio | 1 x BNC microphone input
1 x BNC speaker output | | Video Compression | Smart H.265+, H.265, Smart H.264+, H.264 | | Recording Resolutions | 1296 x 1944, 1280 x 1440, 1920 x 1080, 960 x 1080, 1280 x 720, 960H, D1, CIF | | Recording Rates | Main Stream:
Channel 1: 1296 x 1944 at 20 fps
Channels 1 and 2: 1296 x 1944 at 10 fps
Channels 2 to 32: 1280 x 1440 at 7 fps
Channels 3 to 32: 1280 x 1440 at 15 fps
Sub Stream: D1 or CIF at 15 fps | | Maximum Incoming Bandwidth | 128 Mb/s | | Bit Rate | 32 to 6144 kb/s per channel | | Recording Modes | Manual, schedule (regular, continuous), motion detection (video detection, motion detection, video loss, tampering), alarm, stop | | Recording Intervals | 1 to 60 minutes (default 60 minutes)
Pre-Record: 1 to 30 seconds
Post-Record: 10 to 300 seconds | | Audio Compression | AAC (first channel only), G.711A, G.711U, PCM | | Audio Sample Rate | 8 kHz, 16 bits per channel | | Audio Bit Rate | 64 kb/s per channel | | Interface | 2 x HDMI
1 x VGA
1 x BNC | | Output Native Resolutions | HDMI 1: 3840 x 2160, 2560 x 1440, 1920 x 1080, 1280 x 1024, 1280 x 720
HDMI 2 and VGA: 1920 x 1080, 1280 x 1024, 1280 x 720 | | Maximum Decoding | 16 channels of 1280 x 1440 at 15 fps
8 channels of 1280 x 1440 at 30 fps
1 channel of 6 MP at 30 fps | | Multi-Screen Display | 1/4/8/9/16/25/36 | | OSD | Camera title, time, video loss, camera lock, motion detection, recording | | Network Interface | 1 x RJ45 (1000M) port | | Network Protocols | HTTP, TCP/IP, IPv4/IPv6, UPnP, RTSP, UDP, SMTP, NTP, DHCP, DNS, IP filter, PPPoE, DDNS, FTP, alarm server, P2P, IP search (supports Dahua IP cameras, DVRs, and NVS) | | Maximum User Access | 128 users | | Mobile OS Support | iOS, Android | | Interoperability | ONVIF 16.12, CGI conformant | | Trigger Events | Recording, PTZ, tour, video push, email, FTP, snapshot, buzzer, and screen tips | | Video Detection | Motion detection, MD Zones: 396 (22 x 18), video loss, tampering, and diagnosis | | Alarm Inputs | 16 | | Relay Outputs | 6 | | Playback | 1/4/9/16 | | Search Modes | Time/date, alarm, motion detection, and exact search (accurate to one second) | | Playback Functions | Play, pause, stop, rewind, fast play, slow play, next file, previous file, next camera, previous camera, full screen, repeat, shuffle, backup selection, and digital zoom | | Backup Modes | USB device, network | | HDD Capacity | 4 x SATA ports for up to 10 TB capacity for each disk | | USB Ports | 1 x USB 2.0 port
2 x USB 3.0 ports | | RS-232 | 1 x RS-232 port for PC communication and keyboard | | RS-485 | 1 x RS-485 port for PTZ control | | RS-422 | 1 x RS-422 port for PTZ control | | Power Supply | 100 to 240 VAC, 60/50 Hz | | Power Consumption | <35 W | | Operating Temperature | 14 to 131°F / -10 to 55°C | | Operating Humidity | 10 to 90% RH | | Storage Temperature | -4 to 158°F / -20 to 70°C | | Storage Humidity | 0 to 90% RH | | Certifications | Safety: UL 60950-1, EN 60950-1, IEC 60950-1
Electromagnetic Compatibility (EMC):
FCC Part 15 Subpart B ICES 003 Issue 6
EN 55032
EN 50130
EN 61000-3-2
EN 61000-3-3
Immunity: EN 55024:2010 | | Installation | Desktop or rackmount | | Rackmount | 1.5 RU | | Dimensions | 17.3 x 16.4 x 3" / 440 x 417 x 76 mm | | Weight | 11 lb / 5 kg without HDD | | | | Package Weight | 10.0 lb | | Box Dimensions (LxWxH) | 20.8 x 19.3 x 8.0" |
