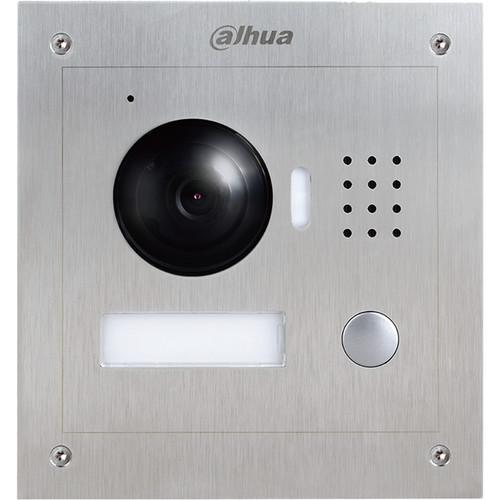

User Manual for Dahua Technology Residential Video Intercom Two-Wire IP Outdoor Station Click to enlarge the picture
Contents of the user manual for the Dahua Technology Residential Video Intercom Two-Wire
- Product category: Door Stations Dahua Technology
- Brand: Dahua Technology
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Dahua Technology Door Stations
|
User manual for the Dahua Technology Residential Video Intercom Two-Wire contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Dahua Technology product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Dahua Technology user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Dahua Technology product will considerably shorten its lifespan!
|
Product description Monitor your home's entrance with the Residential Video Intercom Two-Wire IP Outdoor Station from Dahua Technology. Featuring a built-in camera with a 1/3" 1.3MP CMOS sensor and a 2.8mm lens, this outdoor station captures the scene outside your door with horizontal and vertical fields of view of 90° and 120° respectively. The camera delivers color video both during the day and at night, while the speaker and omnidirectional microphone built into the station allow for two-way voice communication with callers at your door.
When someone rings your doorbell, you can watch the outdoor station's video feed on an indoor monitor or mobile device (both available separately). You can also speak to your visitors from your indoor monitor, or even remotely using an intercom mobile app. Visitors ringing your doorbell are assisted by voice prompts, and can easily leave audio and video messages if no one answers.
This outdoor intercom station communicates with other devices in your home security system over a 10/100 Mbps Ethernet connection. Enclosed in an IP54- and IK07-rated stainless steel panel, it can be either surface or flush mounted. UPC: 816116024010 In the Box Dahua Technology Residential Video Intercom Two-Wire IP Outdoor Station Limited 5-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Dahua Technology Residential Video Intercom Two-Wire IP Outdoor Station in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersDahua Technology DHI-VTO2000A-2 Specs | | | Main Processor | Embedded micro processor | | Operating System | Embedded Linux | | | | Input | Single mechanical button | | Lock | N/A | | | | Video Compression | H.264 | | Image Sensor | 1/3" 1.3 MP CMOS sensor | | Lens | 2.8mm | | View Angle | Horizontal: 90°
Vertical: 120° | | Day/Night | Color Image | | | | Audio | Input: Omnidirectional microphone
Output: Built-in speaker
Two-way talk | | Audio Compression | G.711 | | Control | 2-Channel Door Control:
1 x relay out for main lock
1 x channel extended by access control module | | Alarm Input | 2 Channels:
1 x unlock button
1 x feedback | | RS-485 | 1 x port | | Switch | 1 x tamper switch | | | | Ethernet | 10/100 Mbps, self-adaptive | | Network Protocol | TCP/IP | | | | Safety | EN 60950:2006+A2:2013 | | Electromagnetic Compatibility | FCC CFR 47 part 15 subpart B
ANSI C63.4 - 2009
EN 55022:2010, EN 55024:2010, EN 50130-4:2011, EN 61000-6-3:2007, EN 61000-3-2:2006+A1:2009, EN 61000-3-3:208, IEC 61000-4-2:2008, IEC 61000-4-3:2010, IEC 61000-4-4:2012, IEC 61000-4-5:2005, IEC 61000-4-6:2008, IEC 61000-4-8:2009, IEC 61000-4-11:2004 | | | | Power | 24 VDC | | Power Consumption | Standby: 1 W or less
Operation: 10 W or less | | | | Operating Temperature | -40 to 140°F (-40 to 60°C) | | Operating Humidity | 10 to 90% relative | | Ingress Protection | IP54 | | Vandal Resistance | IK07 | | | | Material | Stainless steel | | Installation | Surface or flush mount | | Dimensions | 5.08 x 1.27 x 5.51" (13 x 3.2 x 14 cm) | | Weight | 1.76 lb (0.8 kg) |
