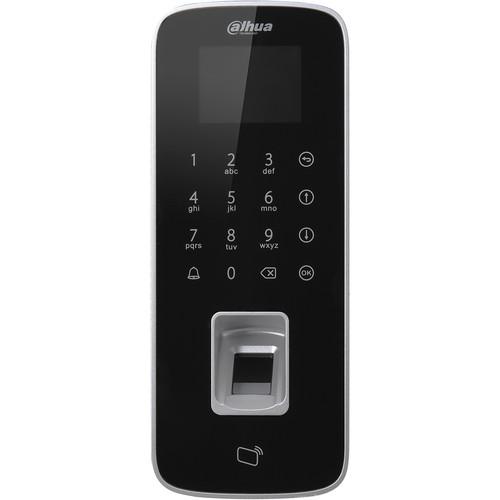

User Manual for Dahua Technology Standalone Waterproof Fingerprint Door Controller Click to enlarge the picture
Contents of the user manual for the Dahua Technology Standalone Waterproof Fingerprint Door
- Product category: Keypads & Readers Dahua Technology
- Brand: Dahua Technology
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Dahua Technology Keypads & Readers
|
User manual for the Dahua Technology Standalone Waterproof Fingerprint Door contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Dahua Technology product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Dahua Technology user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Dahua Technology product will considerably shorten its lifespan!
|
Product description The Standalone Waterproof Fingerprint Door Controller from Dahua Technology supports MIFARE cards, passwords, fingerprints, or a combination for use as entry credentials. The controller features a touch keypad, an LCD display, and Wiegand or RS-485 interface. It supports up to 30,000 cards, 150,000 events, and 3000 fingerprints. The fingerprint controller is IP65 rated for outdoor use. - TCP/IP to PC with support for WAN communication
- Add devices in SmartPSS via P2P connection
- Door time-out, intrusion, duress, and tamper alarms
- Anti-passback and multi-card open options
- Supports 128 time and holiday schedules
UPC: 819290020212 In the Box Dahua Technology Standalone Waterproof Fingerprint Door Controller Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Dahua Technology Standalone Waterproof Fingerprint Door Controller in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersDahua Technology DHI-ASI1212D Specs | Main Processor | 32-Bit | | Flash Memory | 32 MB | | Inputs | 1 x Door Sensor
1 x Exit Button
1 x Alarm | | Outputs | 3 x Alarm Relays: Door Lock, Bell, and Alarm | | Readers | Card Reader:
Format: 13.56 MHz MIFARE
Range: 1.2-3.2" / 3-8 cm
Response Time: <0.1 s
Fingerprint Reader:
Response Time: ≤0.5 s
Recognition Time: ≤1.5 s
FAR: ≤0.00004%
FRR: ≤0.15% | | Capacity | Card Holders: 30,000
Events: 150,000
Fingerprints: 3000 | | Network | P2P, DHCP | | Access Control | Anti Pass-Back, Multi-Interlock, Multi-Card Unlock | | User Management | General, VIP, Guest, Patrol, Black List, Duress | | Alarm Function | Door Time Out, Intrusion, Duress, Tamper | | Schedule Setting | Schedule: 128 Groups
Period: 128 Groups
Holiday: 128 Groups | | RTC | Supported | | Audible Indicator | Buzzer | | Interface | To PC: RJ45 (10/100 Mb/s)
To Reader: Wiegand 34/26, RS-485 | | Safety | EN 60950:2006+A2:2013
UL 60950-1
CAN/CSA C22.2 No. 60950-1-07 | | Electromagnetic Compatibility | FCC CFR 47 Part 15 Subpart B
EN 55022:2010/AC:2011 (Class B)
EN 55024:2010, EN 50130-4:2011,
EN 61000-6-3:2007/A1:2011
EN 61000-3-2:2006+A1:2009+A2:2009
EN 61000-3-3:2013,
IEC 61000-4-2:2008, IEC 61000-4-3:2006+A1:2007
IEC 61000-4-4:2012, IEC 61000-4-5:2005,
IEC 61000-4-6:2008, IEC 61000-4-8:2009
IEC 61000-4-11:2004 | | Power Supply | 9 to 15 VDC, 200 mA | | Operating Temperature | 23 to 131°F / -5 to 55°C | | Rating | IP65 | | Dimensions | 8.1 x 3.3 x 1.3" / 20.5 x 8.3 x 3.3 cm | | Weight | 0.97 lb / 0.44 kg | | | | Package Weight | 1.05 lb | | Box Dimensions (LxWxH) | 11.8 x 4.9 x 2.7" |
