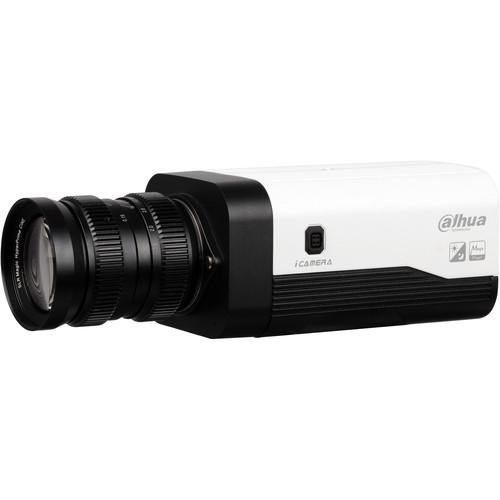

User Manual for Dahua Technology Starlight 8MP Network Box Camera Click to enlarge the picture
Contents of the user manual for the Dahua Technology Starlight 8MP Network Box
- Product category: Wired IP Cameras Dahua Technology
- Brand: Dahua Technology
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Dahua Technology Wired IP Cameras
|
User manual for the Dahua Technology Starlight 8MP Network Box contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Dahua Technology product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Dahua Technology user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Dahua Technology product will considerably shorten its lifespan!
|
Product description The Starlight 8MP Network Box Camera from Dahua Technology is an 8MP network camera that can record and transmit video at a resolution up to 3840 x 2160 at 30 fps. This camera has 2048MB RAM and 4096MB flash internal memory. It has a built-in microphone for audio and features triple-streaming video compression of Smart H.265+, H.265, Smart H.264+, and H.264. It supports PoE and is ONVIF compliant. - Micro Four Thirds System
- Deliver color images in ultra-low-light conditions in the 8MP camera class.
- Starlight+ Technology
- Starlight+ technology uses a large pixel sensor, smart imaging algorithms, and optical features to balance light for clear images in dark environments as low as 0.0005 lux.
- M43 Lens Interface
- This camera is compatible with fixed and motorized varifocal M43 lenses.
- Ultra Wide Dynamic Range
- This camera has a dynamic range up to 140 dB.
- Intelligent Video System (IVS) Standard Features
- IVS triggers an alarm and takes a defined action when it detects tampering with the camera, error writing to an onboard microSD card, error sending or receiving data over the network, and unauthorized access to the cameras.
- IVS Premium Features
- In addition to the standard event triggers mentioned above, the camera offers premium event triggers. IVS triggers an alarm and takes a defined action when an object moves through any part of the scene, when a target crosses a user-defined line, when a target enters or exits a defined perimeter, when a person or object moves or obscures the camera, and when a target leaves an object in a designated area or removes an object from a designated area.
- IVS Advanced Features
- IVS advanced features include facial detection which detects and captures a snapshot of a human face in a defined area within a scene, people counting which measures the number of customers, visitors or passengers in a surveillance scene, and heat map which generates a visual representation of data.
- Smart Scene Adaptive (SSA) Technology
- The camera automatically evaluates and compensates for changes in the luminescence of a scene. SSA automatically regulates the exposure parameters to improve image quality in a backlit scene, especially in scenes with traffic lights or headlights.
- Smart H.265+
- The Smart H.265+ technology uses a scene adaptive encoding strategy, dynamic GOP, dynamic ROI, flexible multi-frame reference structure and intelligent noise reduction.
UPC: 819290023367 In the Box Dahua Technology Starlight 8MP Network Box Camera (No Lens) Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Dahua Technology Starlight 8MP Network Box Camera in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersDahua Technology Starlight Specs | | | Sensor | 8 MP 4/3" CMOS | | Lens Mount | M | | Zoom | Digital: 16x | | Day/Night | Yes | | Minimum Illumination | Color: 0.003 Lux
B&W: 0.002 Lux | | Shutter Speed | 1/100000 to 1/3 Seconds | | | | Streaming Resolution | 3840 x 2160 at 30 fps
3072 x 2048 at 30 fps
2560 x 1920 at 30 fps
2048 x 1536 at 30 fps
2304 x 1296 at 30 fps
1920 x 1080 at 30 fps
1280 x 960 at 30 fps
1280 x 720 at 30 fps
704 x 480 at 30 fps
640 x 480 at 30 fps
342 x 240 at 30 fps | | Supported Video Compression | H.264, H.264+, H.265, H.265+ | | Multi-View Streaming | , 3 Streams | | Automatic Gain Control | Yes | | | | Streaming | Two-Way | | Audio Formats | AAC | | Built-In Mic | Yes | | External Audio Input | 3.5 mm | | Built-In Speaker | No | | External Audio Output | 3.5 mm | | | | Security | HTTPS | | Supported Protocols | ARP, Bonjour, DDNS, DHCP, DNS, FTP, HTTP, , ICMP, IGMP, IPv4/v6, NTP, RTP, RTSP, SMTP, SNMP v1/v2c/v3 (MIB-II), TCP, UDP, UPnP | | | | Analytics | People counting, heat maps | | Event Trigger | Yes | | Event Action | Alarm | | | | Mobile Operating Systems | iOS, Android | | | | Memory | 2048 MB RAM / 4096 MB Flash | | Recording Media | microSD (Up to 128 GB) | | Pan/Tilt | None | | Alarm I/O | 2 / 2 | | I/O Connections | 1 x BNC
1 x Power
1 x RJ45
1 x 25-Pin Serial | | Video Management Software | Smart PSS, DSS | | Internal Storage | None | | External Storage Options | Local PC, NAS | | Power Source | AC, DC, PoE 802.3af (15 W) | | Power Consumption | 10.5 W | | Material of Construction | Steel | | Operating Temperature | -22 to 140°F / -30 to 60°C | | Storage Temperature | -22 to 140°F / -30 to 60°C | | Operating Humidity | 0 to 95% | | Dimensions | H: 6.6 x W: 3.4 x L: 2.9" / H: 167.8 x W: 86.8 x L: 74.0 mm | | Weight | 1.8 lb / 0.8 kg | | | | Package Weight | 2.2 lb | | Box Dimensions (LxWxH) | 9.9 x 5.8 x 4.3" |
