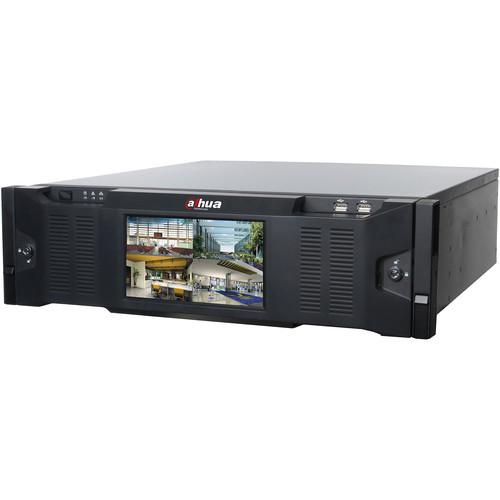

User Manual for Dahua Technology Super Series 128-Channel 12MP NVR with 48TB HDD with LCD Display Click to enlarge the picture
Contents of the user manual for the Dahua Technology Super Series 128-Channel 12MP
- Product category: Network Video Recorders (NVRs) Dahua Technology
- Brand: Dahua Technology
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Dahua Technology Network Video Recorders (NVRs)
|
User manual for the Dahua Technology Super Series 128-Channel 12MP contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Dahua Technology product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Dahua Technology user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Dahua Technology product will considerably shorten its lifespan!
|
Product description Stream and record up to 128 video channels with the Super Series 128-Channel 12MP NVR from Dahua Technology, at resolutions of up to 4K at 12MP. Equipped with 16 SATA ports, the NVR can be configured to host 16 hot-swappable HDDs up to 6TB each for a maximum internal capacity of 96TB (48TB included). External storage options include PCs via Internet connection, network servers, eSATA devices, and USB storage devices. H.264 and MJPEG compression are supported, enabling you to choose the format that works best for your application.
The NVR enables simultaneous live view and playback of up to 128 channels at resolutions up to 3840 x 2160 via its HDMI and VGA ports. Up to 128 channels can be simultaneously recorded at full-frame-rate at 1080p resolution, with a maximum combined transfer speed of 384 Mbps. The NVR is equipped with a built-in 7" HD LCD which supports resolutions up to 1920x1080 and can be configured to display video from multiple cameras. Furthermore, the auxiliary interface includes RCA connectors for bi-directional audio, an RS-232 serial port for PC and keyboard communication, as well as an RS-485 port for PTZ control. Internet connectivity enables remote monitoring via PCs and from Android and iOS devices. - 2 x HDMI and 1 x VGA outputs
- Supports RAID 0/1/5/6/10/50/60 and N+Mhot standby
- Storage space can be expanded via iSCSI & Mini SAS
- Compatible with Dahua SDK and other platforms
- ONVIF-conformant, version 2.4
- Redundant power supply module
- Supports network cameras of multiple brands, including Dahua, Arecont Vision, Axis Communications, Bosch, Brickcom, Canon, CP Plus, DynaColor, Honeywell, Panasonic, Pelco, Samsung, Sanyo, Sony, Videotec, and Vivotek
In the Box Dahua Technology Super Series 128-Channel 12MP NVR with 48TB HDD with LCD Display Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Dahua Technology Super Series 128-Channel 12MP NVR with 48TB HDD with LCD Display in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersDahua Technology DHI-NVR6A16DR-128-4KS2 48TB Specs | | | Main Processor | Intel Processor | | Operating System | Linux | | | | IP Camera Inputs | 128 channels | | Two-way Audio | 1 x Channel input
1 x Channel output
RCA | | | | Interface | 2 x HDMI (up to 3840 x 2160)
1 x VGA | | Resolution | 3840 x 2160, 1920 x 1080, 1280 x 1024, 1280 x 720, 1024 x 768 | | Display Split | 1st Screen: 1/4/8/9/16/25/36
2nd Screen: 1/4/8/9/16 | | OSD | Camera title, time, video loss, camera lock, motion detection, and recording | | | | Compression | H.264/MJPEG | | Resolution | 12 MP
8 MP
6 MP
5 MP
3 MP
1.3 MP
1080p
720p | | Recording Rate | 256 Mbps | | Bit Rate | 1 to 20 Mbps | | Recording Modes | Manual, schedule(regular(continuous), MD (Video Detection: Motion detection, camera blank, video loss), alarm), stop | | Recording Intervals | 1-120 minutes (Default: 60 minutes)
Pre-recording: 1-30 seconds
Post-recording: 10-300 seconds | | | | Triggers | Recording, PTZ, tour, alarm out, video push, email, FTP, snapshot, buzzer, and screen tips | | Video Detection | Motion detection
Motion Detect Zones: 396 (22 x 18), video loss & camera blank | | Alarm Input | 16 channels, low level effective, green terminal interface | | Relay Output | 8 channels, relay contact (1 A at 24 VDC), NO/NC programmable, green terminal interface | | | | Playback | 128 Mbps in Raid 5 mode
64 Mbps in single HDD mode | | Search Modes | Time/date, alarm, motion detection, and exact search | | Playback Functions | Play, pause, stop, rewind, fast play, slow play, next file, previous file, next camera, previous camera, full screen, repeat, shuffle, backup selection, and digital zoom | | Backup Modes | USB device, network, internal SATA burner, and eSATA device | | | | Interface | 4 x RJ45 ports (10/100/1000 Mbps) | | Ethernet Ports | 4 x jointworking ports / 4 x independent 1000 Mbps ports | | Optical Fiber | 2 GB optical fiber interface | | Network Functions | HTTP, TCP/IP, IPv4/IPv6, UPnP, RTSP, UDP, SMTP, NTP, DHCP, DNS, IP filter, PPPoE, DDNS, FTP, alarm server & IP search | | User Limit | 128 users | | Mobile OS Support | iOS, Android, & Windows Phone | | | | Internal HDD | 16 x SATA III ports, capacity up to 96 TB
48 TB pre-installed | | HDD Mode | Single, RAID 0/1/5/6/10/50/60 | | | | LCD | 7" HD LCD (1920x1080 / 1280x1024 / 1024x768) on front cover | | USB | 3 x USB 2.0 on front panel
1 x USB 3.0 on rear panel | | eSATA | 1 x Port | | SAS | 1 x Mini port for storage expansion | | RS-232 | 1 x port for PC communication & keyboard | | RS-485 | 1 x port for PTZ control | | | | Power Supply | 100-240 VAC
50/60 Hz
Redundant | | Power Consumption | 51 W max (without HDD) | | Working Environment | 14 to 131°F (-10 to 55°C)
10-90% RH
86-106 kPa | | Dimensions | 20.91 x 19.09 x 5.24" (53.2 x 48.5 x 13.3 cm) | | Weight | 38.5 lb (17.45 kg) without HDD |
