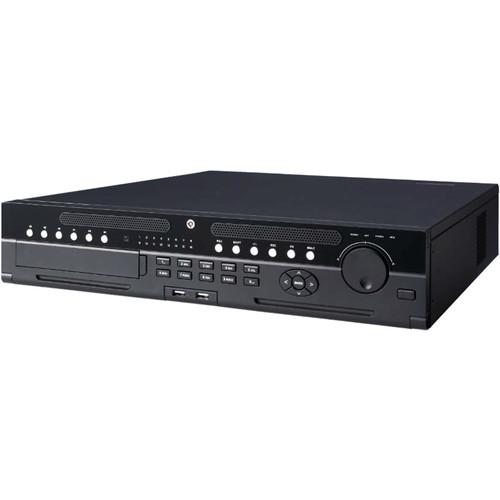

User Manual for Dahua Technology Super Series 128-Channel NVR with 48TB HDD Click to enlarge the picture
Contents of the user manual for the Dahua Technology Super Series 128-Channel NVR
- Product category: Network Video Recorders (NVRs) Dahua Technology
- Brand: Dahua Technology
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Dahua Technology Network Video Recorders (NVRs)
|
User manual for the Dahua Technology Super Series 128-Channel NVR contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Dahua Technology product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Dahua Technology user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Dahua Technology product will considerably shorten its lifespan!
|
Product description The Super Series 128-Channel NVR with 48TB HDD from Dahua supports up to 12MP resolution and features eight hot-swappable HDDs. Equipped with eight SATA III ports, the NVR is configured with 48TB of internal storage. The NVR is equipped with RCA connectors for bi-directional audio and an RS-232 serial port for PC and keyboard communication. -
- Maximum 128 channels to connect IP cameras
- Maximum 384 Mb/s incoming bandwidth
- Up to 12MP resolution preview and playback
- One VGA and two HDMI outputs
- Supports 8 hot-swap HDDs
- Supports RAID 0/1/5/6/10/50/60
- Supports N+M hot standby
- Supports iSCSI to expand storage space
- Compatible with Dahua SDK and integration with other platforms
- Supports multiple brands of network cameras, including Dahua, Arecont Vision, AXIS, Bosch, Brickcom, Canon, CP Plus, Dynacolor, Honeywell, Panasonic, Pelco, Samsung, Sanyo, Sony, Videotec, Vivotek, and more.
- ONVIF Version 2.4 conformance
In the Box Dahua Technology Super Series 128-Channel NVR with 48TB HDD Limited 5-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Dahua Technology Super Series 128-Channel NVR with 48TB HDD in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersDahua Technology DHI-NVR6A08-128-4KS2 48TB Specs | | | Main Processor | Intel processor | | Operating System | Linux | | | | IP Camera Inputs | 128 channels | | Two-way Audio | 1 x input and 1 x output | | | | Interface | 2 x HDMI (up to 3840 x 2160), 1 x VGA | | Resolution | 3840 x 2160, 1920 x 1080, 1280 x 1024, 1280 x 720, 1024 x 768 | | Multi-Screen Display | The 1st Screen: 1/4/8/9/16/25/36
The 2nd Screen: 1/4/8/9/16 | | OSD | Camera title, time, video loss, camera lock, motion detection, recording | | | | Compression | H.264/MJPEG | | Resolution | 12 MP, 8 MP, 6 MP, 5 MP, 3 MP, 1080P, 1.3 MP, 720P, & more | | Recording Rate | 256 Mb/s | | Bit Rate | 1 to 20 Mb/s | | Video Record Mode | Manual, schedule (Continuous, MD, (Video Detection: Motion detection, camera blank, video loss) alarm), stop | | Recording Intervals | 1 to 120 min (Default: 60 min)
Pre-Record: 1 to 30 sec
Post-Record: 10 to 300 sec | | | | Trigger Mechanism | Recording, PTZ, tour, alarm out, video push, email, FTP, snapshot, buzzer, & screen tips | | Video Detection | Motion detection
MD Zones: 396 (22 x 18), video loss & camera blank | | Alarm Input | 16 channels, low level effective, green terminal interface | | Relay Output | 8 channels, Relay contact(1A@24VDC), NO/NC programmable, green terminal interface | | | | Playback | 128 Mb/s in Raid 5 mode
64 Mb/s in single HDD mode | | Search Modes | Time/Date, alarm, MD, & exact search (accurate to second) | | Playback Function | Play, pause, stop, rewind, fast play, slow play, next file, previous file, next camera, previous camera, full screen, repeat, shuffle, backup selection, digital zoom | | Backup Modes | USB device/network/internal SATA burner/eSATA device | | | | Interface | 2 x RJ45 ports (10/100/1000 Mb/s) | | Ethernet Port | 2 x Ethernet ports joint working or 2 X independent 1000 Mb/s Ethernet ports | | Network Function | HTTP, TCP/IP, IPv4/IPv6, UPnP, RTSP, UDP, SMTP, NTP, DHCP, DNS, IP Filter, PPPoE, DDNS, FTP, Alarm Server, IP Search (Support Dahua IP camera, DVR, NVS and more) | | Maximum User Access | 128 users | | Mobile OS Support | iOS and Android | | | | Internal HDD | 8 SATA III ports, up to 48 TB | | Included Storage | 48 TB | | HDD Mode | Single, raid 0/1/5/6/10/50/60 (supports global HDD hot-spare) | | | | USB | 4 x USB ports (3 USB 2.0, 1 USB 3.0) | | eSATA | 1 x eSATA port | | RS-232 | 1 x Port, for PC communication & keyboard | | RS-485 | 1 x Port, for PTZ control | | | | Power Supply | 110 to 240 VAC, 50 to 60 Hz | | Installation | 19" (48.2 cm) Rackmount | | Working Environment | 14 to 131°F (-10 to 55°C) | | Humidity | 10 to 90% RH/ 86 to 106 k/a | | Dimension | 19.1 x 17.9 x 3.5" (486 x 454.9 x 91 mm) | | Weight | 19.8 lb (9 kg) |
