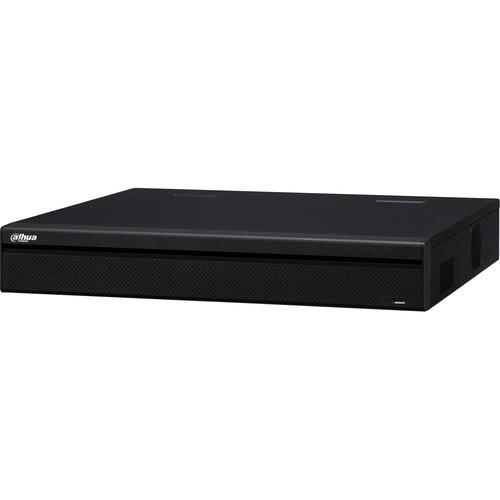

User Manual for Dahua Technology Ultra Series 16-Channel Penta-Brid 5MP DVR with 12TB HDD Click to enlarge the picture
Contents of the user manual for the Dahua Technology Ultra Series 16-Channel Penta-Brid
- Product category: Digital Video Recorders (DVRs) Dahua Technology
- Brand: Dahua Technology
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Dahua Technology Digital Video Recorders (DVRs)
|
User manual for the Dahua Technology Ultra Series 16-Channel Penta-Brid contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Dahua Technology product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Dahua Technology user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Dahua Technology product will considerably shorten its lifespan!
|
Product description Stream and record up to 16 HDCVI, AHD, TVI, or CVBS plus up to eight IP video channels with the 1.5 RU Ultra Series 16-Channel Penta-Brid 5MP DVR from Dahua Technology at resolutions up to 5MP per IP channel. Equipped with four SATA ports, each of which can accommodate an HDD up to 8TB, this DVR supports up to 32TB of internal storage (12TB preinstalled). External storage options include PCs via internet connection, network servers, eSATA drives, and USB storage devices. Network bandwidth is optimized while ensuring high-quality recording and playback using Smart H.264+, H.264, or MJPEG dual-streaming compression.
The DVR enables simultaneous live viewing and playback of up to 16 channels via its HDMI, DVI, and TV ports, at resolutions up to 1920 x 1080. Up to 24 channels can be recorded simultaneously with a maximum incoming bandwidth of 96 Mb/s. Internet connectivity enables remote monitoring via PCs and iOS and Android devices. The DVR is equipped with BNC connectors for bidirectional audio as well as with RS-232 and RS-422/485 serial ports for PC, keyboard, and PTZ control. - Flexible Recording
- The DVR monitors incoming video and can be programmed to record if motion is detected or if an alarm is triggered. The DVR can also be programmed to record on a schedule or at different intervals.
- Spot Output
- The DVR provides a spot output channel for a second monitor. This allows the operator to view one monitor that is assigned to selected cameras or video inputs from high-security areas.
- Smart H.264+
- The Smart H.264+ video compression standard can reduce bit rate and storage requirements by up to 70%.
- HD-CVI/AHD/TVI/CVBS Auto-Detect
- The DVR automatically recognizes the incoming signals of each attached camera without any setup.
- Smart Search
- Smart Search allows an operator to specify a region in the playback video to search for a motion detection event.
- Intelligent Video System (IVS) Standard Features
- IVS triggers an alarm and takes a defined action when it detects tampering with the camera, an error writing to an onboard microSD card, an error sending or receiving data over the network, or unauthorized access to the camera.
- IVS Premium Features
- In addition to the standard event triggers mentioned above, the DVR offers premium event triggers for one analog channel. For this channel, IVS triggers an alarm and takes a defined action when an object moves through any part of the scene, when a target crosses a user-defined line, when a target enters or exits a defined perimeter, when a person or object moves or obscures the camera, and when a target leaves an object in a designated area or removes an object from a designated area.
In the Box Dahua Technology Ultra Series 16-Channel Penta-Brid 5MP DVR with 12TB HDD Limited 5-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Dahua Technology Ultra Series 16-Channel Penta-Brid 5MP DVR with 12TB HDD in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersDahua Technology X34A3L Specs | | | Main Processor | Embedded processor | | Operating System | Linux embedded | | | | Interface | 2 x HDMI ports
1 x VGA port
1 x TV port | | Spot Output | Video Matrix: HDMI-2 interface | | Resolution | 1920 x 1080, 1280 x 1024, 1280 x 720, 1024 x 768 | | Multi-Screen Display | 1, 4, 8, 9, 16, 25 | | On-Screen Display | Camera title, time, video loss, camera lock, motion detection, recording | | | | Trigger Events | Recording, PTZ, tour, alarm out, video push, email, FTP, snapshot, buzzer, and screen tips | | Video Detection | Motion detection, 396 MD zones (22 x 18), video loss, tampering, and diagnosis | | Alarm Input | 16 channels | | Relay Output | 6 channels | | | | Playback | 1, 4, 9, 16 | | Search Modes | Time/date, alarm, MD & exact search (accurate to one second), smart search | | Playback Function | Play, pause, stop, rewind, fast play, slow play, next file, previous file, next camera, previous camera, full screen, repeat, shuffle, backup selection, digital zoom | | Backup Modes | USB device and network | | | | Internal HDD | 4 x SATA ports, up to 8 TB capacity for each disk (12 TB preinstalled) | | HDD Mode | Single | | eSATA | 1 port | | | | USB | 1 x USB 2.0 port
2 x USB 3.0 ports | | Serial Ports | 1 x RS-232 port for PC communication / keyboard control
1 x RS-422/485 port for PTZ control | | | | Compatible Brands | Dahua Technology, Arecont Vision, Axis Communications, Bosch, Brickcom, Canon, CP Plus, Dynacolor, Honeywell, Panasonic, Pelco, Samsung, Sanyo, Sony, Videotec, Vivotek | | | | Analog Camera Inputs | 16 x channels | | IP Camera Input | 16 + 8 channels, each channel up to 5 MP | | Audio | 4-channel input
1-channel output | | Two-Way Audio | 1 x BNC microphone input
1 x BNC microphone output | | | | Compression | Smart H.264+, H.264, MJPEG | | Resolution | 1080p, 720p, 960H, D1, HD1, BCIF, CIF, QCIF | | Record Rate | Main Stream: 1080p, 720p, 960H, D1, HD1, BCIF, CIF, QCIF at 30 fps
Sub Stream: D1, CIF, QCIF at 30 fps | | Bit Rate | 1 to 6144 kb/s per channel | | Video Record Mode | Manual, schedule (regular, continuous), MD (motion detection, video loss, tampering), alarm, stop | | Record | Interval: 1 to 60 minutes (default 60 minutes)
Pre-Record: 1 to 30 seconds
Post-Record: 10 to 300 seconds | | | | Interface | 1 x 1000 Mb/s RJ45 port | | Network Function | HTTP, TCP/IP, IPv4/IPv6, UPnP, RTSP, UDP, SMTP, NTP, DHCP, DNS, IP filter, PPPoE, DDNS, FTP, alarm server, P2P, IP search
Support for Dahua IP cameras, DVRs, and NVRs | | Maximum User Access | 128 users | | Mobile Operating Systems | iOS and Android | | Interoperability | ONVIF 2.4.1, CGI conformant | | | | Power Supply | 100 to 240 VAC, 50/60 Hz | | Power Consumption | Less than 30 W, without HDDs | | | | Safety | Complies with UL standard | | Electromagnetic Compatibility | FCC part 15, subpart B
EN 55032, 55024, 50130-4 | | | | Operating Conditions | 14 to 131°F (-10 to 55°C) | | Storage Conditions | -4 to 158°F (-20 to 70°C), 0-90% RH | | | | Installation | Desktop or rackmount | | Rack Space | 1.5 RU | | Dimensions | 17.3 x 16.4 x 3.0" (44.0 x 41.7 x 7.6 cm) | | Weight | 13.23 lb (6 kg), without HDDs |
