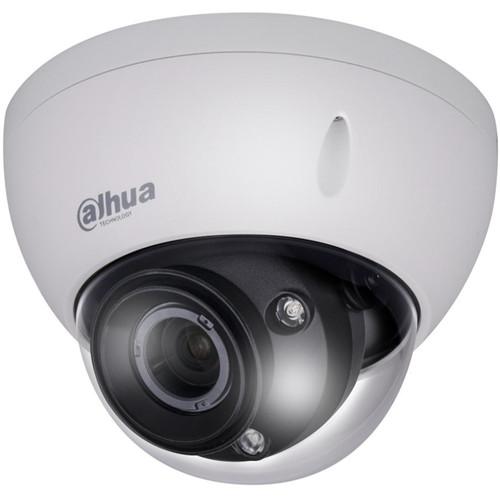

User Manual for Dahua Technology Ultra Series 2.1MP 1080p Outdoor Vandal-Resistant HD-CVI Dome Camera Click to enlarge the picture
Contents of the user manual for the Dahua Technology Ultra Series 2.1MP 1080p
- Product category: Wired Analog & HD Cameras Dahua Technology
- Brand: Dahua Technology
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Dahua Technology Wired Analog & HD Cameras
|
User manual for the Dahua Technology Ultra Series 2.1MP 1080p contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Dahua Technology product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Dahua Technology user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Dahua Technology product will considerably shorten its lifespan!
|
Product description The Ultra Series 2.1MP 1080p Outdoor Vandal-Resistant HD-CVI Dome Camera from Dahua Technology utilizes a 1/2.8” CMOS sensor with 2.7-12mm motorized lens to capture images of 1080p resolution at 30 fps. It features Day/Night (ICR), 3D-DNR (3D Digital Noise Reduction), AWB (Auto White Balance), AGC (Automatic Gain Control), and BLC (Back Light Compensation). With integrated IR LEDs, the camera can record footage of objects up to 164' away, even in total darkness (0 lux). The camera is housed in an IK10-rated vandal-resistant, IP67 weatherproof enclosure. - 30 fps at 1080p, 30/60 fps at 720p
- Long distance real-time transmission
- HD and SD dual-output (SDI optional), SD Tester out
- OSD menu, control over coaxial cable
- 120 dB True WDR (Wide Dynamic Range)
- 3D-DNR (3D Digital Noise Reduction)
- AGC (Automatic Gain Control)
- BLC (Back Light Compensation)
- 2.7-12mm varifocal motorized lens, auto iris
- IK10 vandal-resistant enclosure
UPC: 856920006529 In the Box Dahua Technology Ultra Series 2.1MP 1080p Outdoor Vandal-Resistant HD-CVI Dome Camera Limited 3-Year Warranty Brochure PDF 328.6kb Table of Contents
|
Upload User Manual
Have you got an user manual for the Dahua Technology Ultra Series 2.1MP 1080p Outdoor Vandal-Resistant HD-CVI Dome Camera in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersDahua Technology DH-HAC-HDBW32A1EN-Z Specs | | | Image Sensor | 1/2.8" 2.1 MP CMOS | | Effective Pixels (H x V) | 1945 x 1097 | | Electronic Shutter Speed | 1 to 1/30,000 sec | | Video Frame Rate | 30/60 fps at 720p; 30 fps at 1080p | | Synchronization | Internal | | Min. Illumination | 0.005 lux at f/1.4
0 lux IR on | | Video Output | 1-channel BNC HD-CVI high definition video output
1-channel CVBS standard definition video output
SD tester out | | | | IR LED Range | 164' (50 m), Smart IR | | Day/Night | Auto (ICR) / color / B&W | | Noise Reduction | 2D/3D | | OSD Menu | Support | | | | Focal Length | 2.7-12mm | | Lens Type | Motorized / auto Iris | | Angle of View | H: 95 to 36° | | Mount Type | Φ14 | | | | Alarm | 1-channel input/output | | Audio | 1-channel input | | | | Power Supply | 24 VAC, ±25% / 12 VDC, ±25% | | Power Consumption | Maximum 12.5 W | | Working Temperature | -22 to 140°F (-30 to 60°C), less than 95% RH (no condensation) | | Transmission Distance | Over 1640' (500 m) via 75-3 coaxial cable | | Ingress Protection | IP67 | | Vandal Resistance | IK10 | | Dimensions | 6.3 x 4.6" (159 x 118 mm) | | Weight | 1.9 lb (0.9 kg) | | | | Package Weight | 2.6 lb | | Box Dimensions (LxWxH) | 8.1 x 7.8 x 7.8" |
