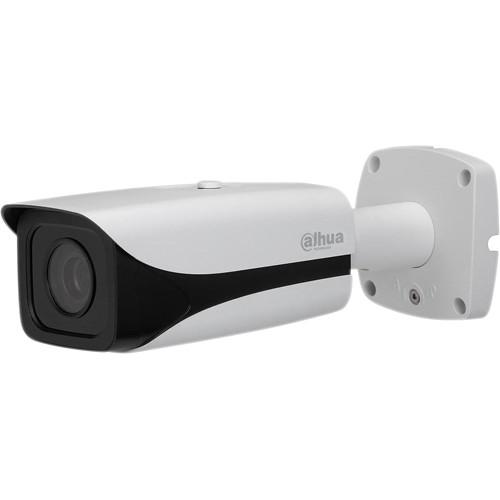

User Manual for Dahua Technology Ultra Series 2.1MP Outdoor HD-CVI Bullet Camera with 2.7-12mm Motorized Lens & Night Vision Click to enlarge the picture
Contents of the user manual for the Dahua Technology Ultra Series 2.1MP Outdoor
- Product category: Wired Analog & HD Cameras Dahua Technology
- Brand: Dahua Technology
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Dahua Technology Wired Analog & HD Cameras
|
User manual for the Dahua Technology Ultra Series 2.1MP Outdoor contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Dahua Technology product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Dahua Technology user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Dahua Technology product will considerably shorten its lifespan!
|
Product description The Ultra Series 2.1MP Outdoor HD-CVI Bullet Camera from Dahua Technology utilizes a 1/2.8" 2.1MP CMOS image sensor and a 2.7-12mm motorized lens to capture up to 1920 x 1080 resolution video. The camera offers day/night functionality with ICR and features Smart IR LEDs that are effective at a range of up to 330'. It also features WDR, AWB, AGC, BLC, and 3D-DNR that enhance image quality, and provide clear and crisp images in extreme backlit and dark environments. The camera features a 1-channel BNC HD-CVI HD and a CVBS SD video output, and is capable of switching between HD and SD outputs. It offers navigation via OSD menu and can be controlled over a coaxial cable. The camera comes with an IP67-rated weatherproof housing and IK10 vandal-resistant rating. - 1/2.8" 2.1MP CMOS image sensor
- 2.7-12mm motorized auto iris lens
- Video frame rate of 30 fps at 1080p
- Day/Night functionality with ICR
- Built-in Smart IR LEDs with night visibility of up to 330' (100 m)
- 120 dB True WDR (Wide Dynamic Range)
- 3D-DNR (3D Digital Noise Reduction)
- BLC (Back Light Compensation)
- High-speed, long distance real-time transmission
- OSD menu, control over coaxial cable
- Switchable HD and SD video outputs
- IK10 vandal-resistance and IP67-rated weatherproof housing
- Alarm and audio functions
UPC: 856920006512 In the Box Dahua Technology Ultra Series 2.1MP Outdoor HD-CVI Bullet Camera with 2.7-12mm Motorized Lens & Night Vision Limited 3-Year Warranty Brochure PDF 232kb Table of Contents
|
Upload User Manual
Have you got an user manual for the Dahua Technology Ultra Series 2.1MP Outdoor HD-CVI Bullet Camera with 2.7-12mm Motorized Lens & Night Vision in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersDahua Technology DH-HAC-HFW32A1EN-Z Specs | Image Sensor | 1/2.8" 2.1 MP CMOS | | Effective Pixels (H x V) | 1945 x 1097 | | Electronic Shutter | 1 to 1/30,000 seconds | | Lens | 2.7-12mm | | Lens Type | Motorized / Auto Iris | | Field of View | Horizontal: 95 to 36° | | Lens Mount Type | Board-in | | Video Frame Rate | 30 fps at 1080p | | Minimum Illumination | 0.005 lux at f/1.4 (AGC on)
0 lux (IR on) | | IR Distance | Maximum: 330' (100 m), Smart IR | | Day/Night | Auto (ICR) / Color / B&W | | Noise Reduction | 2D/3D | | Video Outputs | 1-channel BNC HD-CVI HD
CVBS SD | | Menu Navigation | OSD | | Power Supply | 12 VDC, 24 VAC ±25% | | Maximum Power Consumption | 16.6 W (12 VDC, IR on) | | Operating Environment | -22 to 140°F (-30 to 60°C)
Less than 90% RH (no condensation) | | Transmission Distance | Over 1640' (500 m) via 75-3 coaxial cable (not included) | | Material | Metal | | Ingress Protection | IP67 | | Vandal Resistance | IK10 | | Dimensions | 10.67 x 3.74" (273.2 x 95 mm) | | Weight | 2.65 lb (1.2 kg) | | | | Box Dimensions (LxWxH) | 14.41 x 7.01 x 6.93" |
