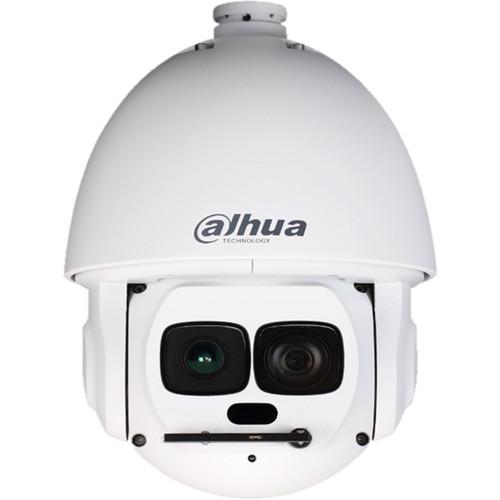

Product description The Ultra Series 2MP Network Laser IR PTZ Dome Camera from Dahua Technology utilizes a 1/1.9" progressive scan Exmor CMOS sensor and captures 1080p video at 30 fps. It features a 6 to 180mm lens with 30x optical zoom. This camera offers day/night functionality with ICR. It also features a built-in IR laser light that provides night visibility of objects up to 1,640' (500m) away. It supports triple-stream encoding in H.264 and MJPEG compression formats. This PTZ dome camera features auto tracking and IVS (Intelligent Video Surveillance) functions. The intelligent functions offer features like tripwire, intrusion detection, cross warning zone, perimeter protection, loitering detection, abandoned / missing object detection, illegal parking, and fast movement. Whenever motion is detected in a pre-defined condition, the camera will trigger an alarm and warn you. This camera comes with an IP67 rating which protects it from harsh weather conditions. - 1/1.9" progressive scan Exmor CMOS image sensor
- 6 to 180mm lens with 30x optical zoom
- Star light camera for ultra-low light environments
- H.264 and MJPEG triple-stream encoding
- Maximum 60 fps at 720p and 30 fps at 1080p resolution
- Day/night functionality with ICR
- IR distance up to 1,640' (500m)
- Wide dynamic range of 120 dB
- 2D and 3D noise reduction
- Electronic image stabilizer
- Auto tracking and IVS (Intelligent Video Surveillance) function
- Network monitoring via web viewer, CMS (DSS/PSS), and DMSS
- Offers 360° endless pan rotation with maximum speed of 240°/sec
- Up to 300 presets, five auto scan, eights tour, and five pattern
- Seven alarm inputs and two outputs
- Supports intelligent 3D positioning with DH-SD protocol
- microSD card slot with up to 128GB capacity (card not included)
UPC: 816116020760 In the Box Dahua Technology Ultra Series 2MP Full HD 30x Network Laser IR PTZ Dome Camera with Intelligent Function Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Dahua Technology Ultra Series 2MP Full HD 30x Network Laser IR PTZ Dome Camera with Intelligent Function in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersDahua Technology DH-SD6ALA230FN-HNI Specs | | | Image Sensor | 1/1.9" Exmor CMOS | | Effective Pixels (H x V) | 1944 x 1092, 2 MP | | Scanning System | Progressive | | Electronic Shutter Speed | 1/1 to 1/30,000 sec | | Minimum Illumination | Color: 0.002 lux @ f/1.6
B/W: 0.0002 lux @ f/1.6
0 lux (IR on) | | S/N Ratio | More than 56 dB | | Video Output | BNC (1.0 V p-p / 75 Ohms), NTSC | | | | Day/Night Operation | Auto (ICR) / Color / B/W | | Backlight Compensation | BLC / HLC / WDR (120 dB) | | White Balance | Auto, ATW, Indoor, Outdoor, Manual | | Gain Control | Auto / Manual | | Noise Reduction | Ultra DNR (2D / 3D) | | Privacy Masking | Up to 24 areas | | Digital Zoom | 16x | | Image Stabilizer | Electronic | | Defog | Supported | | | | Focal Length | 6 to 180mm | | Optical Zoom | 30x | | Maximum Aperture | f/1.6 to 4.8 | | Focus Control | Auto / Manual | | Horizontal Angle of View | 61.2 to 2.1° | | Close Focus Distance | 100 to 1000 mm | | | | Light Control | Auto / Manual | | Distance | Up to 1,640' (500 m) | | Angle of Light Beam | 2 to 60° | | | | Pan/Tilt | Pan: 0 to 360° endless
Tilt: -20 to 90°, auto flip 180° | | Manual Control Speed | Pan: 0.1 to 240°/sec
Tilt: 0.1 to 120°/sec | | Preset Speeds | Pan: 240°/sec
Tilt: 200°/sec | | Preset | 300 | | PTZ Mode | 5 x pattern, 8 x tour, 5 x auto scan, auto pan | | Setup | Speed Setup: Human-oriented focal length / speed adaptation | | Power-Up Action | Auto restore to previous PTZ and lens status after power failure | | Idle Motion | Activate Preset / Pan / Scan / Tour / Pattern if there is no command in the specified period | | Time Task | Auto activation of Preset / Pan / Scan / Tour / Pattern by preset-time | | Protocol | DH-SD, Pelco P/D (auto recognition) | | | | Compression | H.264 / MJPEG | | Resolution | 1080p (1920 x 1080) / 720p (1280 x 720) / D1 (704 x 576 / 704 x 480) / CIF (352 x 288 / 352 x 240) | | Frame Rate | Main Stream: 1080p / D1 (1 to 30 fps); 720p (1 to 60 fps)
Sub Stream 1: D1 / CIF (1 to 30 fps)
Sub Stream 2: 720p / D1 / CIF (1 to 30 fps) | | Bit Rate | H.264: 56 to 8192 kb/sec
MJPEG: 56 to 20480 kb/sec | | | | Compression | G.711a / G.711u (32 kb/sec) / PCM (128 kb/sec) | | Interface | 1/1 channel in/out | | | | Auto Tracking | Single-scene, multiple-scene, panorama-scene | | Intelligent Video Analytics | Tripwire, Intrusion, Cross Warning Zone, Perimeter Protection, Loitering Detection, Abandoned Object Detection, Missing Object Detection, Illegal Parking, Fast Moving, etc. | | Tracking | Trigger Mode: Manual / auto (alarm triggered)
Trigger Event: Targeting, zoom, tracking, recording, snapshot, and alarm | | | | Ethernet | RJ45 (10/100Base-T) | | Protocol | IPv4 / IPv6, HTTP, HTTPS, SSL, TCP / IP, UDP, UPnP, ICMP, IGMP, SNMP, RTSP, RTP, SMTP, NTP, DHCP, DNS, PPPoE, DDNS, FTP, IP Filter, QoS, Bonjour, 802.1x | | Compatibility | ONVIF, PSIA, and CGI | | Maximum User Access | 20 users | | Mobile OS Support | iOS and Android | | | | Memory Card Slot | microSD card slot, supports maximum 128 GB (not included) | | Alarm Input / Output | 7-channel input
2-channel output | | | | Power Consumption | 20 W
43 W (IR on) | | Power Supply | 24 VAC / (±25%), Hi-PoE | | Working Environment | Temperature: -40 to 158°F (-40 to 70°C)
Humidity: Less than 90% RH | | Ingress Protection | IP67 | | Dimensions (Ø x L) | 9.45 x 14" (240 x 357 mm) | | Weight | 15.2 lb (6.9 kg) | | | | Package Weight | 23.0 lb | | Box Dimensions (LxWxH) | 20.4 x 12.6 x 12.5" |
