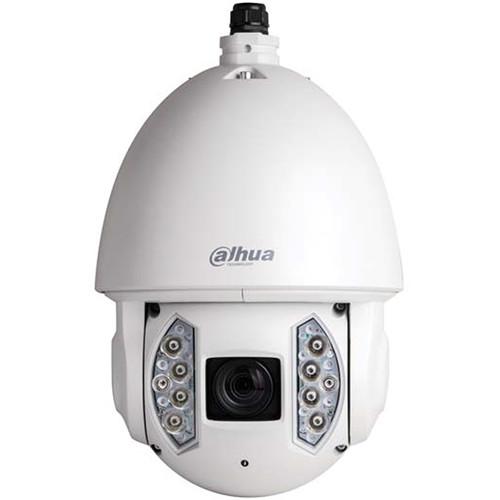

User Manual for Dahua Technology Ultra Series 2MP Outdoor 40x PTZ Network Dome Camera with Night Vision Click to enlarge the picture
Contents of the user manual for the Dahua Technology Ultra Series 2MP Outdoor
- Product category: Wired IP Cameras Dahua Technology
- Brand: Dahua Technology
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Dahua Technology Wired IP Cameras
|
User manual for the Dahua Technology Ultra Series 2MP Outdoor contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Dahua Technology product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Dahua Technology user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Dahua Technology product will considerably shorten its lifespan!
|
Product description The Ultra Series 2MP Outdoor 40x PTZ Network Dome Camera from Dahua Technology has a 1/2.8" 2MP STARVIS progressive scan CMOS sensor to capture 1920 x 1080 resolution video at up to 60 fps. The camera's 4.5-135mm lens has a 40x optical zoom and a 67.5 to 1.7° field of view. The camera offers day/night functionality with ICR and ten built-in IR LEDs provide night visibility to a range of up to 656'. For challenging low-light applications, the camera offers Starlight technology to capture color video to 0.005 lux. Furthermore, ultra wide dynamic range up to 140 dB, ultra DNR (2D/3D), and BLC/HLC enhance images in varying lighting conditions. The PTZ camera features Intelligent Video System (IVS) functions including tripwire violations, intrusion, tamper detection, abandoned/missing object detection, auto tracking, and face detection. It uses the H.265 video compression standard to improve encoding efficiency without compromising video quality. The camera conforms to the ONVIF (Open Network Video Interface Forum) and PSIA (Physical Security Interoperability Alliance) standards, ensuring interoperability between third-party network video products. With a built-in heater and operating temperature range of -40 to 158°F, the camera is designed for extreme temperature environments. It features an IP67 rating which protects it from harsh weather conditions and is IK10-rated for protection against acts of theft or vandalism. - 1/2.8" 2MP STARVIS CMOS sensor
- Captures 1920 x 1080 resolution video at up to 60 fps
- 4.5-180mm lens with 40x optical zoom
- Day/night functionality with mechanical IR cut filter
- Starlight technology for ultra-low light sensitivity
- H.265 and H.264 dual codec support
- Simultaneous SD analog video output
- Ultra wide dynamic range up to 140 dB
- Intelligent Video System (IVS) with tripwire violations, intrusion detection, abandoned/missing object, auto tracking, and face detection
- Operating temperature range of -40 to 158°F
- IP67- and IK10-rated enclosure for outdoor applications
UPC: 816116029961 In the Box Dahua Technology Ultra Series 2MP Outdoor 40x PTZ Network Dome Camera with Night Vision Limited 5-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Dahua Technology Ultra Series 2MP Outdoor 40x PTZ Network Dome Camera with Night Vision in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersDahua Technology Ultra Series Specs | | | Image Sensor | 1/2.8" 2 MP STARVIS CMOS | | Effective Pixels (H x V) | 1920 x 1080 | | Memory | RAM/ROM: 512 MB / 128 MB | | Scanning System | Progressive | | Minimum Illumination | Color: 0.005 lux at f/1.2
0 lux at f/1.2 (IR on) | | S/N Ratio | >56 dB | | IR Range | 656' (200 m) | | IR LED Control | Auto/Manual | | IR LEDs | 10 | | Distance | DORI Distance
Detect (8 ppf): 8100' (2469 m)
Observe (19 ppf): 3241' (988 m)
Recognize (38 ppf): 1621' (494 m)
Identify (76 ppf): 810' (247 m) | | | | Focal Length | 4.5-180mm | | Maximum Aperture | f/1.2 to 3.5 | | Field of View | Horizontal: 67.5 to 1.7° | | Optical Zoom | 40x | | Focus Control | Auto/manual | | Close Focus Distance | 100 to 1000 mm | | | | Pan & Tilt Range | Pan: 0 to 360° endless
Tilt:-20 to 90°
Auto flip 180° | | Manual Control Speed | Pan: 0.1 to 200°/s
Tilt: 0.1 to 120°/s | | Preset Speeds | Pan: 240°/s
Tilt:200°/s | | Preset | 300 | | PTZ Mode | 5 patterns, 8 tours, auto pan, auto scan | | Speed | Setup: Human-oriented focal length, speed adaptation | | Power Failure Auto Recover | Auto restore to previous PTZ and lens status after power failure | | Idle Motion | Activate Preset, Scan, Tour, or Pattern if there is no command in the specified period | | Protocol | DH-SD, Pelco P/D (auto recognition) | | | | Compression | H.265, H.264, MJPEG | | Streaming Capability | Three streams | | Resolution | 1080p (1920 x 1080), 720p (1280 x 720), D1 (704 x 480), CIF (352 x 240) | | Frame Rate | Main Stream: 60 fps at 1080p, or 30 fps at 1.3 MP or 720p
Sub Stream 1: 30 fps at D1 or CIF
Sub Stream 2: 30 fps at 1080p, 720p, or D1 | | Bit Rate Control | CBR, VBR | | Bit Rate | H.265/H.264: 256 to 8192 kbps
MJPEG: 4096 to 20,480 kbps | | Day/Night | Auto (ICR) / Color / B&W | | Backlight Compensation | BLC / HLC / Ultra WDR (140 dB) | | White Balance | Auto/ATW/Indoor/Outdoor/Manual | | Gain Control | Auto/Manual | | Noise Reduction | Ultra DNR (2D / 3D) | | Digital Zoom | 16x | | Image Flip | 180° | | Privacy Masking | Up to 24 areas | | Additional Features | Motion Detection, Region of Interest, Electronic Image Stabilization (EIS), Defog | | | | Compression | G.711a, G.711Mu, PCM, AAC, G.722.1, G.729, MPEG2-L2 | | | | Video | 1 x BNC | | Audio | 1 x input
1 x output | | RS-485 | 1 | | Alarm | 7 x inputs
2 x outputs | | | | Ethernet | 1 x RJ45 (10/100Base-T) | | Protocols | IPv4/IPv6, HTTP, HTTPS, SSL, TCP/IP, UDP, UPnP, ICMP, IGMP, SNMP, RTSP, RTP, SMTP, NTP, DHCP, DNS, PPPoE, DDNS, FTP, IP Filter, QoS, Bonjour, 802.1x | | Interoperability | ONVIF, PSIA, CGI | | Streaming Method | Unicast/multicast | | Maximum User Access | 20 users | | Edge Storage | NAS (Network Attached Storage)
Local PC for instant recording
microSD card, maximum 128 GB (card not included) | | Web Viewer | IE 10, Firefox, Safari | | Management Software | Smart PSS, DSS | | Mobile Operating Systems | iOS, Android | | | | Power Supply | 24 VAC, 3 A (
