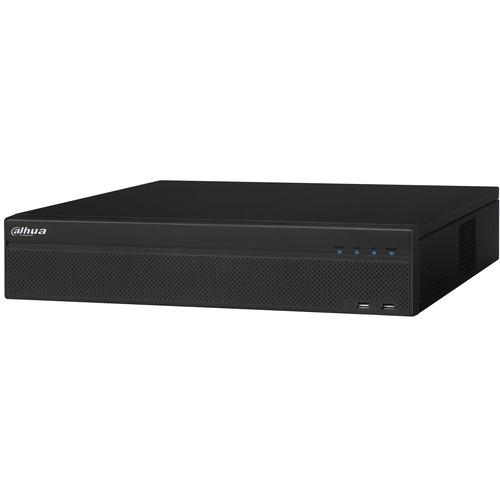

User Manual for Dahua Technology Ultra Series 32-Channel DHI-NVR6A08-32-4KS2 12MP 4K NVR with 48TB HDD Click to enlarge the picture
Contents of the user manual for the Dahua Technology Ultra Series 32-Channel DHI-NVR6A08-32-4KS2
- Product category: Network Video Recorders (NVRs) Dahua Technology
- Brand: Dahua Technology
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Dahua Technology Network Video Recorders (NVRs)
|
User manual for the Dahua Technology Ultra Series 32-Channel DHI-NVR6A08-32-4KS2 contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Dahua Technology product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Dahua Technology user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Dahua Technology product will considerably shorten its lifespan!
|
Product description Record from and manage up to 32 cameras with the Ultra Series 32-Channel DHI-NVR6A08-32-4KS2 12MP 4K NVR with 48TB HDD from Dahua Technology. This NVR supports IP cameras up to 12 MP. It has eight SATA III ports that each support up to 8TB HDDs, for a maximum of 64TB (48TB HDD preinstalled). H.265, H.264, and MJPEG video compressions ensure high-quality recording and playback.
This NVR supports up to 128 users. An RCA audio I/O makes two-way talk possible. One VGA and two HDMI ports enable video output to an external monitor (available separately) at up to 4K UHD resolution. ONVIF compliance with version 2.4 provides interoperability with ONVIF IP cameras. - Intel quad-core processor
- Supports 4K UHD resolution for recording, live viewing, and playback
- Automatic Network Replenishment (ANR) technology
- VGA and 2 x HDMI video outputs
- 384 Mb/s maximum incoming bandwidth
- 2 x 1000M RJ45 Ethernet ports
- 16 alarm inputs and 8 relay outputs
- 2 x USB 2.0 and 2 x USB 3.0
- RS-232 port for PC communication and keyboard
- RS-485 port for PTZ control
- Optional point-of-sale solution
- Compatible with iOS and Android
- Backup via USB device, network, internal SATA burner, or eSATA device
- iSCSI for expanded storage space
- Intelligent Video System (IVS) Analytics on 2 IP Channels
-
- Motion
- Tripwire
- Intrusion
- Scene change
- Abandoned/missing object
- Facial detection
- People counting
- Heat mapping
In the Box Dahua Technology Ultra Series 32-Channel DHI-NVR6A08-32-4KS2 12MP 4K NVR with 48TB HDD Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Dahua Technology Ultra Series 32-Channel DHI-NVR6A08-32-4KS2 12MP 4K NVR with 48TB HDD in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersDahua Technology DHI-NVR6A08-32-4KS2 48TB Specs | | | Main Processor | Intel Quad-Core Processor | | Operating System | Embedded Linux | | | | IP Camera Inputs | 32 | | Two-Way Talk | 1 x RCA Input
1 x RCA Output | | | | Interface | 2 x HDMI (Up to 3840 x 2160 Resolution, Different Source)
1 x VGA | | Output Native Resolutions | 3840 x 2160, 1920 x 1080, 1280 x 1024, 1280 x 720, 1024 x 768 | | Maximum Decoding | 4 Channels of 12 MP at 20 fps
4 Channels of 8 MP at 30 fps
8 Channels of 8 MP at 15 fps
5 Channels of 6 MP at 30 fps
6 Channels of 5 MP at 30 fps
8 Channels of 5 MP at 25 fps
8 Channels of 4 MP at 30 fps
9 Channels of 4 MP at 20 fps
12 Channels of 3 MP at 25 fps
8 Channels of 1080p at 60 fps
16 Channels of 1080p at 30 fps
25 Channels of 720p at 30 fps | | Multi-Screen Display | 1st Screen: 1/4/8/9/16/25/36
2nd Screen: 1/4/8/9/16 | | OSD | Camera Title, Time, Video Loss, Camera Lock, Motion Detection, Recording | | | | Compression | H.265, H.264, MJPEG | | Supported IP Camera Resolution | 12 MP, 8 MP, 6 MP, 5 MP, 4 MP, 3 MP, 1080p, 1.3 MP, 720p | | Maximum Incoming Bandwidth | 384 Mb/s | | Record Mode | Manual, Schedule (Regular, Continuous), MD (Video Detection: Motion Detection, Camera Blank, Video Loss), Alarm, Stop | | Recording Intervals | 1 to 120 Minutes (Default: 60 Minutes)
Pre-Record: 1 to 30 Seconds
Post-Record: 10 to 300 Seconds | | | | Trigger Events | Recording, PTZ, Tour, Alarm Out, Video Push, Email, FTP, Snapshot, Buzzer, and Screen Tips | | Video Detection | Motion Detection, MD Zones: 396 (22 x 18), Video Loss, and Camera Blank | | Alarm Inputs | 16
Low-Level Effective, Green Terminal Interface | | Relay Outputs | 8
NO/NC Programmable, Green Terminal Interface | | Tracking | Tracking Trigger Event: Targeting, Zoom, Tracking, Recording, Snapshot, Alarm | | | | Playback | 128 Mb/s in RAID 5 Mode
64 Mb/s in Single HDD Mode | | Search Modes | Time/Date, Alarm, MD and Exact Search (Accurate to One Second) | | Playback Function | Play, Pause, Stop, Rewind, Fast Play, Slow Play, Next File, Previous File, Next Camera, Previous Camera, Full Screen, Repeat, Shuffle, Backup Selection, Digital Zoom | | Backup Modes | USB Device, Network, Internal SATA Burner, eSATA Device | | | | Brand Compatibility | Dahua, Arecont Vision, Axis Communications, Bosch, Brickcom, Canon, CP Plus, Dynacolor, Honeywell, Panasonic, Pelco, Samsung, Sanyo, Videotec, Vivotek, and More | | | | Ethernet | 2 x RJ45 (10/100/1000M) | | Network Function | HTTP, TCP/IP, IPv4/IPv6, UPnP, RTSP, UDP, SMTP, NTP, DHCP, DNS, IP Filter, PPPoE, DDNS, FTP, Alarm Server, IP Search (Supports Dahua IP Cameras, DVRs, and NVSes) | | Maximum User Access | 128 Users | | Mobile Operating Systems | iOS, Android | | Interoperability | ONVIF 2.4, CGI Conformant | | | | HDD Support | 8 x SATA III Ports, 8 TB Capacity for Each Disk | | Installed HDD | 48 TB Preinstalled | | HDD Mode | Single, RAID 0/1/5/6/10
Supports Global HDD Hot Spare, Enterprise HDD Recommended | | eSATA Port | 1 | | | | USB | 2 x USB 3.0
2 x USB 2.0 | | RS-232 | 1 Port for PC Communication and Keyboard | | RS-485 | 1 Port for PTZ Control | | | | Power Supply | 110 to 240 VAC, 50/60 Hz | | Power Consumption | <20 W without HDDs | | | | Operating Temperature | 14 to 131°F / -10 to 55°C | | Storage Temperature | -4 to 158°F / -20 to 70°C | | Storage Humidity | 0 to 90% RH | | Certifications | EN: EN55022, EN55024, EN50130-4, EN60950-1
UL: UL 60950-1+CAN/CSA C22.2 No. 60950-1
FCC: Part 15 Subpart B, ANSI C63.4-2014 | | Installation | 19" / 483 mm Rackmount | | Dimensions | 17.4 x 17.9 x 3.5" / 444 x 454.9 x 90.4 mm | | Weight | 19.8 lb / 9 kg without HDDs |
