Product description The Ultra Series 3MP Dual-Sensor AI People Counting Network Camera with Night Vision from Dahua Technology utilizes two 1/2.8" progressive scan CMOS sensors to capture 2048 x 1536 resolution video at up to 25 fps. A single IR LED provides up to 33' of night vision. Two 2.8mm fixed lenses deliver a 137° horizontal field of view. This camera offers line crossing and regional people counting functions, as well as heat mapping, making it suitable for retail, business, and commercial applications. Two-way audio communication is possible thanks to a built-in microphone and an audio I/O. An onboard memory card slot supports microSD cards up to 128GB. microSD cards are available separately. Integrated PoE technology simplifies connectivity by enabling the transfer of power and data through a single cable.
This dual-sensor camera is ONVIF-compliant for Profiles S & G, making it compatible with a wide range of surveillance devices. It is housed in an IP67-rated metal enclosure that is suitable for outdoor use. - Suitable for retail spaces, businesses, and commercial applications
- Built-in IVS (Intelligent Video System) analytic algorithms deliver intelligent functions to monitor a scene for tripwire violations, tampering detection, intrusion detection, scene changes, and abandoned or missing objects
- Intelligent Business Analysis features people counting and heat mapping to track and store the daily, weekly, monthly, and yearly flow of people through a defined scene to produce a configurable report of the collected data
- Vision Processor Unit (VPU) offers high-performance machine vision and visual awareness
- Smart H.265+, H.265, Smart H.264+, H.264, and MJPEG video compression
- Unicast and multicast streaming methods
- IR cut filter for day and night functionality
- Auto and manual IR on/off control
- Digital wide dynamic range, backlight compensation, highlight compensation, and Smart Scene Adaptive (SSA)
- White balance modes include auto, natural, street lamp, outdoor, and manual
- Auto and manual gain control
- Motion detection for 4 zones (rectangular)
- Privacy masking for 4 zones (rectangular)
- ROI (region of interest) for 4 zones
- Camera pivots vertically from -10 to 70°

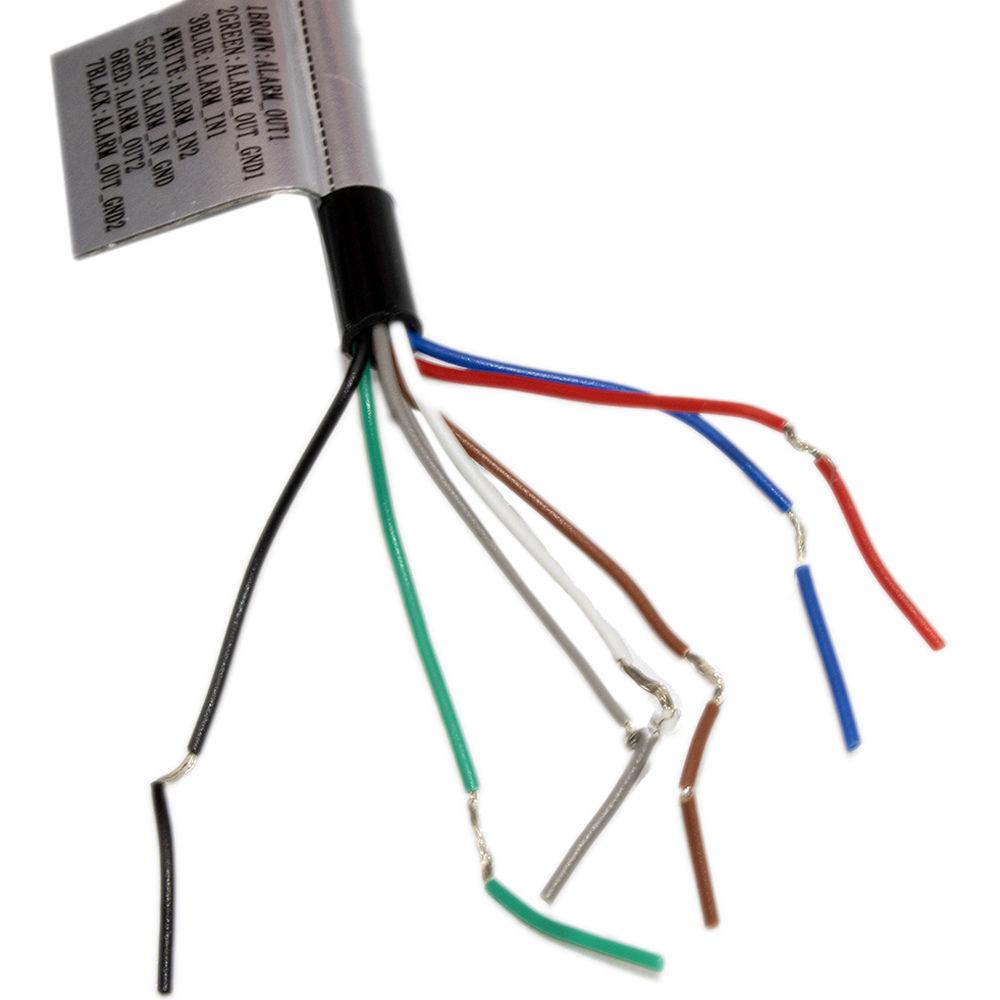

- Two alarm inputs and two alarm outputs
- BNC video port for camera adjustment only
- Compatible with Internet Explorer, Chrome, Firefox, Safari, iOS, and Android
- Local PC for instant recording and NAS edge storage
- IP67-rated metal enclosure that is suitable for outdoor use
- ±25% input voltage tolerance and 6kV lightning protection
- Artificial Intelligence Features
- People Counting:
- Built-in calibration function
- Dual-lens design for depth information
Line Crossing:
- Maximum/minimum height direction
- Sensitivity control
Regional:
- Counts the number of people in a defined area
- Ten separate regions
- DORI Distance
-
- 147' (detect)
- 59' (observe)
- 29' (recognize)
- 13' (identify)
- Detection Width
-
- 3.6' detection width at 7.2' installation height
- 8.5' detection width at 8.2' installation height
- 10.2' detection width at 9.2' installation height
- 14.1' detection width at 11.5' installation height
UPC: 819290025385 In the Box Dahua Technology Ultra Series 3MP Dual-Sensor People-Counting Network Camera with Night Vision Screw Package Quick Mounting Board Installation Position Map Waterproof Connector Wrench Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Dahua Technology Ultra Series 3MP Dual-Sensor People-Counting Network Camera with Night Vision in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersDahua Technology DH-IPC-HDW8341XN-3D Specs | | | Sensor | 2 x 3 MP 1/2.8" CMOS | | Focal Length | 2.8mm | | Maximum Aperture | f/1.8 | | Zoom | Digital: 16x | | Lens Field of View | Horizontal: 137°
Vertical: 114° | | IR Cut Filter | Mechanical | | Day/Night | True | | Minimum Illumination | Color: 0.009 Lux
B&W: 0 Lux | | Camera Angle Adjustment | Vertical: -10 to 70° | | | | Streaming Resolution | 2048 x 1536 at 25 fps (10.24 Mb/s H.264)

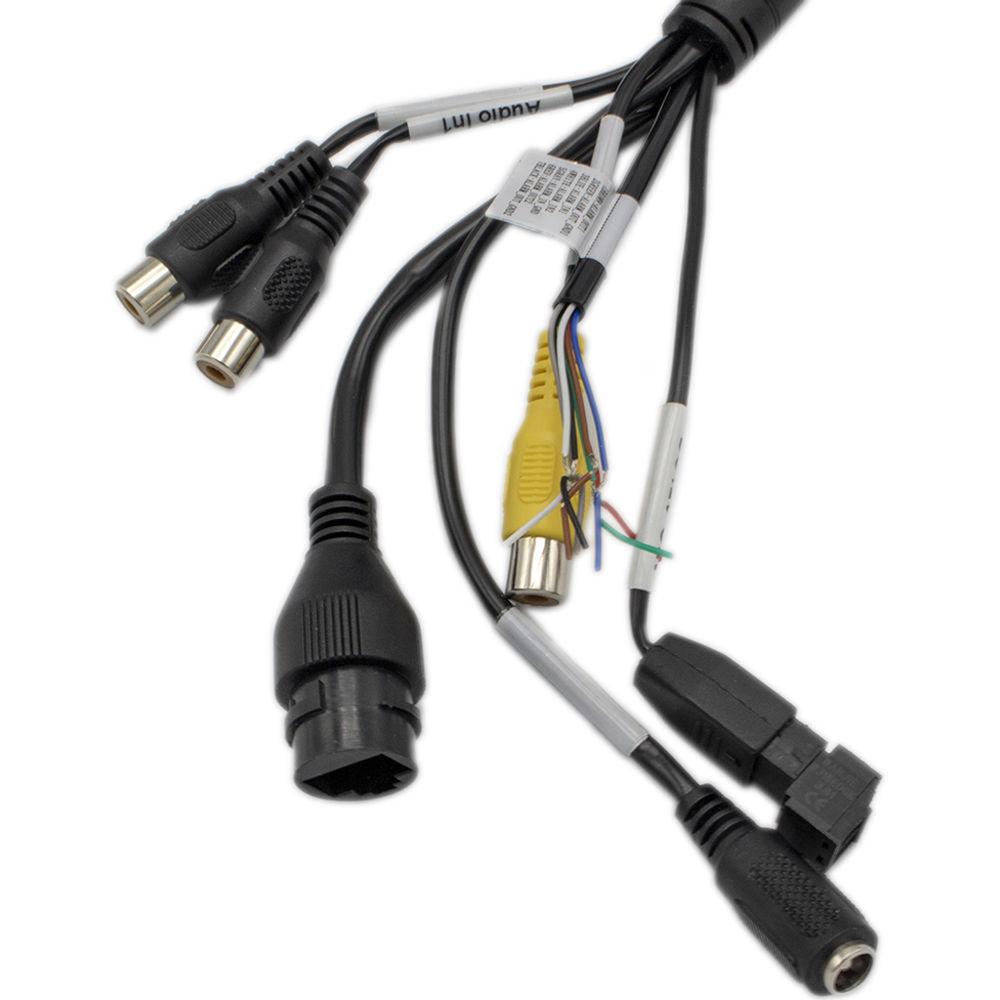

704 x 480 at 30 fps | | Supported Video Compression | H.264, H.264+, H.265, H.265+, MJPEG | | Multi-View Streaming | Yes, 3 Streams | | Automatic Gain Control | Yes | | | | Streaming | Two-Way | | Audio Formats | AAC, G.711, G.726 | | Built-In Mic | Yes | | External Audio Input | RCA | | External Audio Output | RCA | | | | Security | HTTPS, IEEE 802.1X | | Supported Protocols | ARP, Bonjour, DDNS, DHCP, DNS, FTP, HTTP, ICMP, IGMP, IPv4/v6, NTP, PPPoE, QoS Layer 3 DiffServ, RTCP, RTP, RTSP, SMTP, SSL/TLS, TCP, UDP, UPnP | | | | Application Programming Interface (API) | ONVIF Profiles S & G, API | | Analytics | Tampering, Memory Card Error, Network Error, Unauthorized Access, Motion, Tripwire, Intrusion, Scene Change, Abandoned/Missing Object, People Counting, Heat Mapping | | Event Trigger | Yes | | Event Action | Recording, Notification, Alarm | | Data Streaming | Yes | | | | Mobile Operating Systems | iOS, Android | | | | Memory | 512 MB RAM / 4096 MB Flash | | Recording Media | microSD (Up to 128 GB) | | Pan/Tilt | None | | Alarm I/O | 2 / 2 | | I/O Connections | 1 x RJ45
1 x Power
1 x BNC | | IR Range | 32.81' / 10 m | | Video Management Software | SmartPSS, DSS, DMSS | | Internal Storage | None | | External Storage Options | Local PC, NAS | | Power Source | DC, PoE 802.3af (15 W) | | Power Consumption | 12 W | | Material of Construction | Metal (Unspecified Type) | | Operating Temperature | -22 to 140°F / -30 to 60°C | | Storage Temperature | -22 to 140°F / -30 to 60°C | | Operating Humidity | 0 to 95% | | IP Rating | IP67 | | Dimensions | H: 2.4 x W: 3.1 x L: 8.0" / H: 62.0 x W: 78.0 x L: 204.0 mm | | Weight | 1.8 lb / 0.8 kg |
