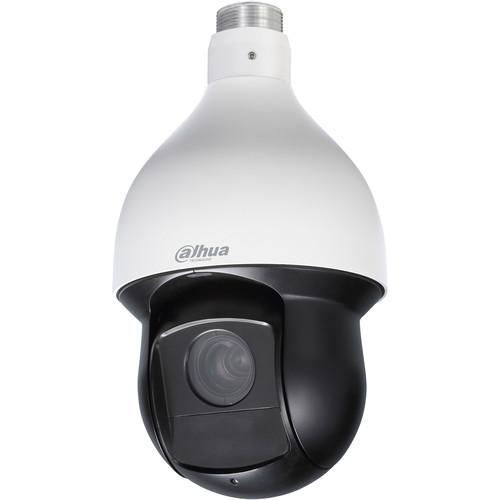

User Manual for Dahua Technology Ultra Series 59230UNI 2MP Outdoor PTZ Network Camera with 4.5-135mm Varifocal Lens Click to enlarge the picture
Contents of the user manual for the Dahua Technology Ultra Series 59230UNI 2MP
- Product category: Wired IP Cameras Dahua Technology
- Brand: Dahua Technology
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Dahua Technology Wired IP Cameras
|
User manual for the Dahua Technology Ultra Series 59230UNI 2MP contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Dahua Technology product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Dahua Technology user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Dahua Technology product will considerably shorten its lifespan!
|
Product description The Ultra Series 59230UNI 2MP Outdoor PTZ Network Camera from Dahua Technology utilizes a 1/2.8" CMOS sensor and a 4.5-135mm varifocal lens to capture images at resolutions up to 1920 x 1080. The camera supports H.265, H.264, and MJPEG compression formats with simultaneous triple streaming. The camera offers a WDR of up to 120 dB for capturing images under varied lighting conditions. It features a built-in microSD card slot (up to 128GB, available separately) for on-board storage. UPC: 816116026724 In the Box Dahua Technology Ultra Series 59230UNI 2MP Outdoor PTZ Network Camera with 4.5-135mm Varifocal Lens Limited 5-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Dahua Technology Ultra Series 59230UNI 2MP Outdoor PTZ Network Camera with 4.5-135mm Varifocal Lens in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersDahua Technology Ultra Series Specs | Image Sensor | 1/2.8" 2 MP CMOS | | Focal Length | 4.5-135mm | | Zoom | 30x optical zoom | | Horizontal Field of View (degree) | 67.8 to 2.4° | | Minimum Illumination | Starlight
Color: 0.005 lux at f/1.6
B&W: 0 lux at f/1.6 (IR on) | | Wide Dynamic Range | 120 dB | | IR Distance | Maximum: 492' (150 m) | | Video Compression Format | H.265, H.264, and MJPEG | | Maximum Resolution | 1920 x 1080 | | Frame Rate | 60 fps at 1920 x 1080 or 1280 x 720 | | Streaming | Triple | | Pan/Tilt/Zoom | 300 presets
Pan: 0 to 360° endless
Tilt: -15 to 90°, auto flip 180° | | Preset Speeds | Pan: 400°/sec
Tilt: 300°/sec | | Intelligent Video | Tripwire, intrusion, abandoned object detection, missing object detection, face detection, and auto-tracking | | Compatibility | ONVIF, PSIA, and CGI | | Audio In/Out | 1/1 | | Memory Slots | microSD card up to 128 GB (card not included) | | Alarm Input / Output | 2/1 | | Environmental Protection | IP66 | | Working Temperature | -40 to 158°F (-40 to 70°C) | | Power | 24 VAC, PoE+ (802.3at) | | Dimensions | Not specified by the manufacturer | | Weight | Not specified by the manufacturer | | | | Package Weight | 15.87 lb | | Box Dimensions (LxWxH) | 17.2 x 10.4 x 10.3" |
Rating70% users recommend this product to others. And what about you?
This product has already been rated by 08 owners. Add your rating and experience with the product.
