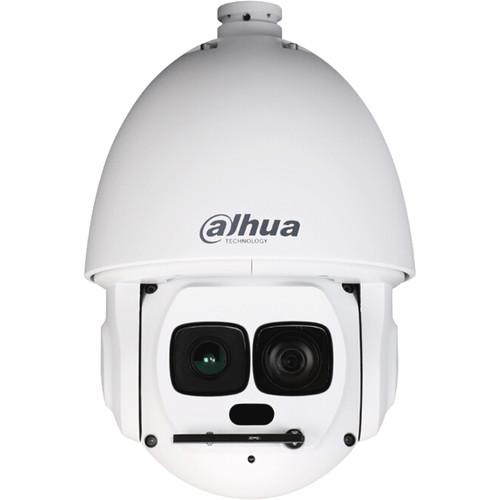

User Manual for Dahua Technology Ultra Series 6AL245UNI 2MP Outdoor PTZ Network Dome Camera with Night Vision

• Product category: Wired IP Cameras Dahua Technology
• Brand: Dahua Technology
• Description and content of package
• Technical information and basic settings
• Frequently asked questions – FAQ
• Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
• Authorized service for Dahua Technology Wired IP Cameras

Product description

Starlight Technology
• Starlight ultra-low light sensitivity can capture color details in light as low as 0.005 lux.

True Wide Dynamic Range
• 120 dB True Wide Dynamic Range (WDR) optimizes both the bright and dark areas of a scene at the same time to provide usable video.

PFA Technology
• PFA technology improves zoom accuracy and decreases focus time. A series of advanced algorithms judge the direction and the distance to a subject, improving picture clarity throughout the zooming process.

Intelligent Video System (IVS) Standard Features
• IVS triggers an alarm and takes a defined action when it detects tampering with the camera, an error writing to an onboard microSD card, an error sending or receiving data over the network, and unauthorized access to the camera.

IVS Premium Features
• In addition to the standard event triggers mentioned above, the camera offers premium event triggers. IVS triggers an alarm and takes a defined action when an object moves through any part of the scene, when a target crosses a user-defined line, when a target enters or exits a defined perimeter, when a person or object moves or obscures the camera, and when a target leaves an object in a designated area or removes an object from a designated area.

IVS Advanced Features
• IVS advanced features include facial detection, which detects and captures a snapshot of a human face in a defined area within a scene, heat mapping, which generates a visual representation of data, and auto-tracking, which controls the pan/tilt/zoom actions of the camera to automatically track an object in motion and keep it in the scene.

Smart H.265+
• Smart H.265+ uses a scene-adaptive encoding strategy, dynamic GOP, dynamic ROI, flexible multi-frame reference structure, and intelligent noise reduction to deliver high-quality video without straining the network.

Environmental
• The camera is designed for extreme temperature environments with a built-in heater and a temperature range of -40° to 140°F. An IP67 rating makes it suitable for outdoor applications.

Lightning Protection
• This camera features 8kV lightning protection.

Upload User Manual

Please enter here the link to the user manual of this product: OR Enter here the file with the user manual of this product from your computer/phone: (60MB max; Permitted formats: PDF) 0%

Technical parameters

Dahua Technology Ultra Series Specs

Memory	1024 MB RAM / 128 MB Flash
Recording Media	microSD (Up to 128 GB)
Pan/Tilt	Remote Pan: 360° Remote Tilt: 120° (-20 to 90°)
Alarm I/O	7 / 2
I/O Connections	1 x BNC 1 x Power 1 x RJ45 1 x 9-Pin Serial (RS-485)
IR Range	1804.46' / 550 m
Video Management Software	Smart PSS, DSS
Internal Storage	None
External Storage Options	Local PC, NAS
Power Source	AC, PoE 802.3at (30 W)
Power Consumption	24 W
Material of Construction	Metal (Unspecified Type)
Operating Temperature	-40 to 140°F / -40 to 60°C
IP Rating	IP67
