User Manual for Dahua Technology Ultra Series 6C430IC 4MP Outdoor PTZ HDCVI Pendant Dome Camera Click to enlarge the picture
Contents of the user manual for the Dahua Technology Ultra Series 6C430IC 4MP
- Product category: Wired Analog & HD Cameras Dahua Technology
- Brand: Dahua Technology
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Dahua Technology Wired Analog & HD Cameras
|
User manual for the Dahua Technology Ultra Series 6C430IC 4MP contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Dahua Technology product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Dahua Technology user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Dahua Technology product will considerably shorten its lifespan!
|

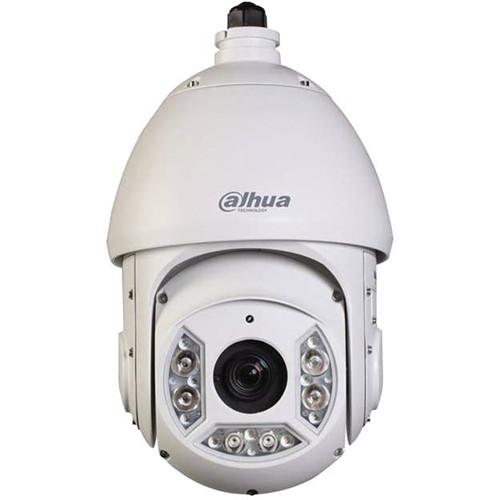

Product description The Ultra Series 6C430IC 4MP Outdoor PTZ HDCVI Dome Camera from Dahua Technology features a 1/3" progressive scan CMOS sensor and 30x optical zoom lens for capturing videos at a maximum resolution of 2592 x 1520. For applications with both bright and low light conditions that change quickly, true WDR (120 dB) optimizes both the bright and dark areas of a scene at the same time to provide usable video. In addition, the camera also comes with PTZ (pan/tilt/zoom) control. The dome camera uses the HDCVI technology that helps in simultaneously transmitting three signals (video, audio, and control) over a single coaxial cable. Two-way data transmission allows the HDCVI camera to communicate with an HCVR to send control signals or to trigger alarms. Moreover, HDCVI technology supports PoC for construction flexibility. The camera offers one BNC video output connection to transmit an HDCVI or a CVBS signal. These output signals allow the camera to integrate with various devices, including analog matrix systems and monitors.
Utilizing Dahua's algorithm technology, the Defog feature dynamically adjusts contrast settings to provide improved image quality in scenes affected by fog, smog, mist, smoke, or other low-contrast interference. With a built-in heater and temperature range of {Des_Temp}, the camera is designed for use in harsh temperature environments. The 6KV lightning rating means the camera and its structure are protected from the effects of lightning. In addition, this IP66-rated weather-resistant camera is suitable for use in outdoor environments. - 1/3" 4MP progressive scan CMOS sensor
- 2592 x 1520 video at 30 fps
- True Wide Dynamic Range (120 dB) and 3D-DNR
- Compass direction on display for easier positioning
- IP66-rated weather-resistant
UPC: 816116028179 In the Box Dahua Technology Ultra Series 6C430IC 4MP Outdoor PTZ HDCVI Pendant Dome Camera Limited 5-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Dahua Technology Ultra Series 6C430IC 4MP Outdoor PTZ HDCVI Pendant Dome Camera in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersDahua Technology Ultra Series Specs | | | Image Sensor | 1/3" 4 MP CMOS | | Effective Pixels (H x V) | 2592 x 1520, 4 MP | | Scanning System | Progressive | | Electronic Shutter Speed | 1/3 to 1/300,000 sec | | Minimum Illumination | Color: 0.05 lux at f/1.6
0 lux at f/1.6 with IR on | | S/N Ratio | More than 55 dB | | IR Distance | Distance up to 328' (100 m) | | On/Off Control | Auto, manual | | Number of IR LEDs | 6 | | | | Focal Length | 4.5-135mm | | Maximum Aperture | f/1.6-4.4 | | Angle of View | Horizontal: 60 to 2.2°
| | Optical Zoom | 30x | | Focus Control | Auto/Manual | | Close Focus Distance | 3.94 to 39.4" (10 to 100 cm) | | Range | DORI Distance
Detect (8 ppf): 8858' (2700 m)
Observe (19 ppf): 3543' (1080 m)
Recognize (38 ppf): 1772' (540 m)
Identify (76 ppf): 886' (270 m) | | | | Range | Pan: 0 to 360° endless
Tilt: -15 to 90°
Auto Flip: 180° | | Manual Control Speed | Pan: 0.1° to 160°/s
Tilt: 0.1° to 120°/s | | Preset Speeds | Pan: 240°/s
Tilt: 200°/s | | Presets | 300 | | PTZ Mode | 5 Patterns, 8 Tours, Auto Pan, Auto Scan | | Setup | Speed Setup: Human-oriented focal length, speed adaptation | | Action Type | Power Up: Auto restore to previous PTZ and lens status after power failure | | Idle Motion | Activate Preset, Scan, Tour, or Pattern if there is no command in the specified period | | Protocol | DH-SD, Pelco P/D (Auto recognition) | | | | Resolution | 4 MP (2560 x 1440), 1080p (1920 x 1080), 720p (1280 x 720), 960H (960 x 480) | | Frame Rate | 4 MP or 3 MP at 30 fps
1080p at 30/60 fps | | Video Output | HDCVI: 4 MP
AHD or TVI: 2 MP
CVBS: 960H | | Maximum Video Transmission Range | RG-59/U Coax
720p: 1640.42' (500 m), 1080p: 1312.34' (400 m), 4 MP: 984.25' (300 m)
RG-6/U Coax
720p: 2624.67' (800 m), 1080p: 1968.5' (600 m), 4 MP: 1968.5' (600 m)
Cat 6 UTP (balun required)
720p/1080p: 1246.72' (380 m), 4 MP: 656.17' (200 m) | | Day/Night | Auto (ICR), color, B&W | | OSD Menu | Support | | Backlight Compensation | BLC, HLC, True WDR (120 dB) | | White Balance | Auto, ATW, Indoor, Outdoor, Manual | | Gain Control | Auto / manual | | Noise Reduction | Ultra DNR (2D/3D) | | Digital Zoom | 16x | | Image Flip | 180° | | Privacy Masking | Up to 24 areas | | | | Safety | CE
EN 55032
EN 55024
EN 50130-4
UL60950-1 + CAN/CSA C22.2, No.60950-1 | | Electromagnetic Compatibility | FCC Part 15 Subpart B
ANSI C63.4-2014 | | | | Audio Interface | In: 1 channel
Out: 1 channel | | Alarm | In: 2 channels
Out: 1 channel | | | | Power Supply | 24 VAC, 3 A (±10%) | | Power Consumption | 13 W, 23 W with IR on | | | | Operating Conditions | -40 to 140°F (-40 to 60°C), with built-in heater, less than 90% RH | | Ingress Protection | IP66 | | | | Casing | Metal | | Dimensions | 8.06 x 14.2" (20.5 x 36.1 cm) | | Weight | 17.20 lb (7.8 kg) |
