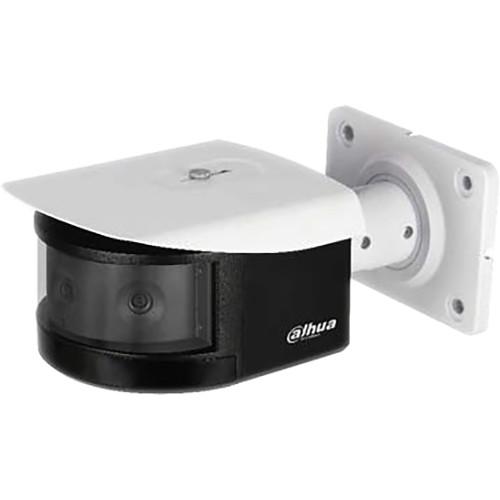

User Manual for Dahua Technology Ultra Series 6MP Outdoor Network Panoramic Bullet Camera with Night Vision Click to enlarge the picture
Contents of the user manual for the Dahua Technology Ultra Series 6MP Outdoor
- Product category: Wired IP Cameras Dahua Technology
- Brand: Dahua Technology
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Dahua Technology Wired IP Cameras
|
User manual for the Dahua Technology Ultra Series 6MP Outdoor contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Dahua Technology product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Dahua Technology user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Dahua Technology product will considerably shorten its lifespan!
|
Product description Monitor a large outdoor area with the IP67- and IK10-rated Ultra Series 6MP Outdoor Network Panoramic Bullet Camera with Night Vision from Dahua Technology. This camera has three independently configurable 2MP sensors to deliver a panoramic 180° view. Smart IR LEDs allow the camera to capture clear images of subjects in total darkness up to 98' away. Starlight technology and Wide Dynamic Range (WDR) up to 120 dB further helps the camera produce accurate images in varying lighting conditions. Together, the three sensors can capture a 4096 x 832 resolution video at up to 30 fps compressed using H.265 technology for smooth recording and playback. The camera's built-in heater allows it to operate in extreme weather conditions down to -40°F. - Three 2MP sensors for 6MP resolution video at up to 30 fps
- Smart IR LEDs for night vision up to 98'
- Street Lamp Compensation helps to reduce the yellow tint from shooting under sodium-vapor lights
- Wide Dynamic Range up to 120 dB for accurate images in varying lighting conditions
- Intelligent Video System (IVS) provides alerts for tripwire, intrusion, abandoned/missing objects, face detection, people counting, heat map, and ePTZ
- 6kV lightning rated provides ±25% input voltage tolerance for outdoor applications
- IP67- and IK10-rated enclosure for protection against dust, water, and impact
UPC: 816116026472 In the Box Dahua Technology Ultra Series 6MP Outdoor Network Panoramic Bullet Camera with Night Vision Waterproof Network Connector Power Connector Mounting Hardware Mounting Template Limited 5-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Dahua Technology Ultra Series 6MP Outdoor Network Panoramic Bullet Camera with Night Vision in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersDahua Technology DH-IPC-PFW8601N-H-A180 Specs | | | Image Sensor | 3 x 2 MP 1/2.8" Exmor R progressive scan CMOS sensors | | Effective Pixels | 4096 x 832 | | RAM | 512 MB | | ROM | 128 MB | | Minimum Illumination | Color: 0.007 lux at f/1.8
B&W: 0 lux at f/1.8 with IR LEDs on | | S/N Ratio | >50 dB | | IR | Control: Auto/ manual | | Number of IR LEDs and Range | 8 x IR LEDs, up to 98.4' (30 m) | | | | Lens Type | Fixed | | Mount Type | Board-in | | Focal Length | 3.6mm | | Maximum Aperture | f/1.8 | | Angle of View | Horizontal: 180° combined
Vertical: 44° | | Focus Control | Fixed | | | | Intelligent Video | IVS: Tripwire, intrusion, abandoned/missing object | | Intelligent Function | Face detection, people counting, heat map, ePTZ | | | | Compression | H.264 and H.265 | | Streaming Capability | 3 streams | | Resolution | 4096 x 832, 3840 x 780, 2560 x 520, 1280 x 260, 1024 x 208 | | Frame Rate | Main Stream: 4096 x 832 (1-25/30 fps)
Sub Stream: 1024 x 208 (1-25/30 fps)
Third Stream: 1280 x 260 (1-25/30 fps) | | Bit Rate Control | CBR/VBR | | Bit Rate | H.264: 8 kbps to 16 Mbps
H.265: 4 kbps to 10 Mbps | | Day/Night | Auto (ICR), color, B&W | | BLC | BLC, HLC, WDR (120 dB) | | White Balance | Auto, natural, street lamp, outdoor, manual | | Gain Control | Auto, manual | | Digital Noise Reduction | 3D-DNR | | Motion Detection | Off / on (4 zones, rectangular) | | Region of Interest | Off / on (4 zones) | | Smart IR | Supported | | Digital Zoom | 16x | | Privacy Masking | Off / on (4 areas, rectangular) | | | | Compression | G.711a, G.711Mu, AAC, G.726 | | | | Ethernet | RJ45 100/1000Base-T | | Protocol | HTTP, HTTPs, TCP, ARP, RTSP, RTP, UDP, SMTP, FTP, DHCP, DNS, DDNS, PPPoE, IPv4/v6, QoS, UPnP, NTP, Bonjour, 802.1x, Multicast, ICMP, IGMP, SNMP | | Interoperability | ONVIF, PSIA, CGI | | Streaming Method | Unicast / multicast | | Maximum User Access | 20 | | Edge Storage | microSD card up to 128 GB (available separately), NAS, local PC for instant recording | | Web Viewer | Internet Explorer, Chrome, Firefox, Safari | | Management Software | Smart PSS, DSS, Easy4ip | | Smart Phone | iOS, Android | | | | Product Safety | CE (EN 60950:2000), UL 60950-1 | | Electromagnetic Compatibility | FCC Part 15, Subpart B | | | | Audio Interface | 1 x Channel in
1 x Channel out | | Alarm | 1 x Channel in
1 x Channel out | | | | Power Supply | 24 VAC, PoE (802.3at Class 4) | | Maximum Power Consumption | 24 W with IR LEDs on | | | | Operating Temperature | -40 to 140°F (-40 to 60°C) | | Operating Humidity | <95% RH | | Storage Temperature | -40 to 140°F (-40 to 60°C) | | Storage Humidity | <95% RH | | IP Rating | IP67 | | IK Rating | IK10 | | | | Casing | Metal | | Dimensions | 11.7 x 6.8 x 4.7" (298.3 x 172.5 x 120.5 mm) | | Weight | 5.7 lb (2.6 kg) | | | | Package Weight | 8.3 lb | | Box Dimensions (LxWxH) | 15.1 x 10.6 x 6.8" |
