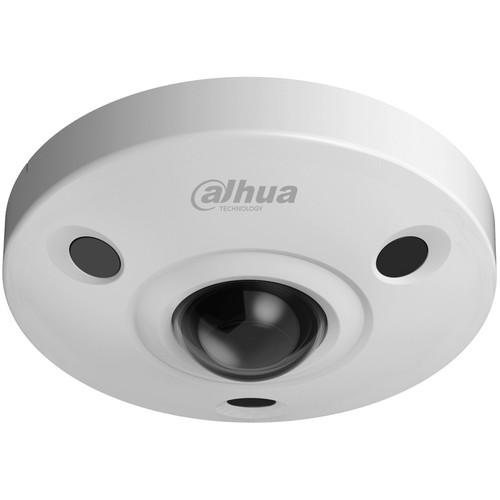

User Manual for Dahua Technology Ultra Series 6MP Outdoor Vandal-Resistant Network Fisheye Camera with Night Vision Click to enlarge the picture
Contents of the user manual for the Dahua Technology Ultra Series 6MP Outdoor
- Product category: Wired IP Cameras Dahua Technology
- Brand: Dahua Technology
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Dahua Technology Wired IP Cameras
|
User manual for the Dahua Technology Ultra Series 6MP Outdoor contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Dahua Technology product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Dahua Technology user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Dahua Technology product will considerably shorten its lifespan!
|
Product description The Ultra Series 6MP Outdoor Vandal-Resistant Network Fisheye Camera from Dahua Technology features a 1/1.8" Exmor R CMOS sensor and 1.3mm fixed lens for capturing images at a maximum resolution of 3072 x 2048. Enclosed in an IP67-rated housing, the camera can be used for both indoor and outdoor applications. The camera complies with the IK10 impact rating for vandal resistance and IP67 rating for resistance to moisture and weather.
The Fisheye camera allows for a 360° hemispherical image that can be dewarped in order to view individual elements separately. The 6MP sensor provides a 360° view for eliminating blind spots. The camera is designed to be easy to install on a ceiling or wall, making it suitable for office buildings, parking garages, gas stations, and retail environments. Equipped with Intelligent Video System (IVS) analytics, this camera has the ability to detect and analyze moving and idle objects, tripwire crossing, and faces. True Day/Night - A day/night mechanical IR cut filter makes this camera suitable for applications with fluctuating lighting conditions, delivering color images during the day and automatically switching to monochrome as the scene darkens.
Smart IR - The camera's Smart IR technology adjusts to the intensity of the camera's infrared LEDs to compensate for the distance of an object. The Smart IR prevents IR LEDS from whiting out images as they come closer to the camera. The camera's integrated IR illumination provides improved performance in low‐light environments up to 33'.
Regions of Interest - Regions of Interest (ROI) is a user defined feature that allows the operator to monitor specific areas of a scene while still maintaining overall situational awareness of less important areas.
IVS (Intelligent Video System) - IVS is a built‐in video analytic algorithm that delivers intelligent functions to monitor a scene for tripwire violations, intrusion detection, and abandoned or missing objects. A camera with IVS responds to monitoring events in a specific area. In addition to scene analytics, the multi‐sensor camera supports face detection to capture a face and upload the image to a server. The multi‐sensor camera also offers tamper detection by recognizing a dramatic scene change and generating a warning message to inspect the camera.
Protection - The camera is protected against water and dust to IP67 standards, making it suitable for indoor or outdoor environments. With its IK10-rated impact-resistant design, the camera provides durability against vandals, making it capable of withstanding the equivalent of 120 lb of force. The camera supports ±25% input voltage tolerance and the 8KV lightning rating means it is protected from the effects of lightning.
Streaming - With a choice of unicast or multicast streaming, bandwidth‐efficient viewing, recording, and third‐party video management can be achieved. Multiple streaming enables bandwidth‐efficient viewing and recording. Depending on the resolution and frame rate selected on the first stream, the second and third stream provides a copy at a lower resolution.
UPC: 816116026465 In the Box Dahua Technology Ultra Series 6MP Outdoor Vandal-Resistant Network Fisheye Camera with Night Vision Limited 5-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Dahua Technology Ultra Series 6MP Outdoor Vandal-Resistant Network Fisheye Camera with Night Vision in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersDahua Technology DH-IPC-EBW8600N-IVC Specs | | | Image Sensor | 1/1.8" Exmor R CMOS | | Effective Pixels | 3072 x 2048 (H x V) | | Scanning System | Progressive | | Electronic Shutter Speed | Auto/Manual 1/3(4) to 1/100000 sec | | Minimum Illumination | Color: 0.01 lux at f/2.8
B&W: 0 lux with IR on | | S/N Ratio | More than 50 dB | | IR Range | Up to 33' (10 m) | | IR LED Control | Auto, Manual | | | | Type | Fixed | | Mount Type | Board‐in | | Focal Length | 1.3mm | | Maximum Aperture | f/2.8 | | Angle of View | 180/360° | | Focus Control | Manual | | | | Auto Tracking | Single‐scene, multiple‐scene, panorama‐scene | | Intelligent Video Analytics | Tripwire, Intrusion, Cross Warning Zone, Perimeter Protection, Loitering Detection, Abandoned Object Detection, Missing Object Detection, Illegal Parking, Fast Moving | | Intelligent Function | Face Detection | | Triggering | Tracking Trigger Mode: Manual / Auto (alarm triggered)
Tracking Trigger Event: Targeting, Zoom, Tracking, Recording, Snapshot, Alarm | | | | Compression | H.264H/H.264B/H.264/MJPEG | | Streaming Capability | 3 streams | | Resolution | 6 MP (3072 × 2048)
4 MP (2048 x 2048)
3 MP (2048 x 1536)
UVGA (1600 x 1200)
1.3 MP (1280 x 960)
D1 (704 × 576/704 x 480)
CIF (352 × 288/342 x 240) | | Frame Rate | Main Stream:
6 MP (1 to 25/30 fps)
Sub Stream 1:
D1/CIF (1 to 25/30 fps)
Sub Stream 2:
1.3 MP/D1 (1 to 25/30 fps) | | Bit Rate Control | CBR, VBR | | Bit Rate | 8 to 12288 kb/s | | Fisheye Dewarp Mode | Original, Panoramic, Double panoramic, 1+3, ePTZ, 4 pictures | | Day/Night | Auto (ICR), color, B&W | | Backlight Compensation | BLC / HLC / DWDR | | White Balance | Auto, Manual | | Gain Control | Auto / manual | | Noise Reduction | 3D | | Privacy Masking | Up to 4 areas | | | | Compression | G.711a, G.711Mu, G.726, AAC | | Interface | 1/1 channel In/Out, built‐in mic | | | | Ethernet | RJ45 (10/100Base-T) | | Protocol | IPv4/ IPv6, HTTP, HTTPS, SSL, TCP/IP, UDP, UPnP, ICMP, IGMP, SNMP, RTSP, RTP, SMTP, NTP, DHCP, DNS, PPPoE, DDNS, FTP, IP Filter, QoS, Bonjour, 802.1x, ARP | | Interoperability | ONVIF, PSIA, CGI | | Maximum User Access | 20 users | | Web Viewer | IE 10 | | Mobile OS Support | iOS and Android | | | | Safety | FCC (SEFV1505157-A)
UL (E234884-A125-UL) | | | | Memory Slots | microSD, up to 64 GB | | Alarm | In: 2 channels
Out: 1 channel | | | | Power Supply | 12 VDC, PoE+ (802.3af) | | Power Consumption | 13 W maximum | | | | Operating Conditions | -22 to 140°F (-30 to 60°C), less than 90% RH | | Storage Conditions | -22 to 140°F (-30 to 60°C), less than 90% RH | | Ingress Protection | IP67 | | Vandal Resistance | IK10 | | | | Dimensions (Ø x H) | 5.91 x 1.99" (150 x 50.7 mm) | | Weight | 1.28 lb (0.58 kg) | | | | Box Dimensions (LxWxH) | 8.07 x 7.64 x 7.56" |
