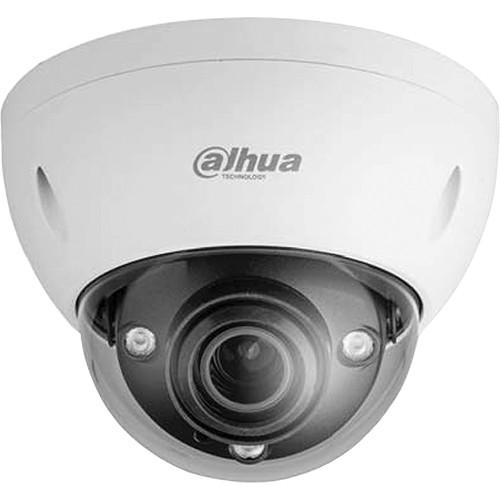

User Manual for Dahua Technology Ultra Series 8MP 4K HDCVI Outdoor Dome Camera with 3.7-11mm Lens & Night Vision Click to enlarge the picture
Contents of the user manual for the Dahua Technology Ultra Series 8MP 4K
- Product category: Wired Analog & HD Cameras Dahua Technology
- Brand: Dahua Technology
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Dahua Technology Wired Analog & HD Cameras
|
User manual for the Dahua Technology Ultra Series 8MP 4K contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Dahua Technology product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Dahua Technology user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Dahua Technology product will considerably shorten its lifespan!
|
Product description Deliver Ultra HD 4K surveillance video over long-distance coax cables with the Ultra Series 8MP 4K HDCVI Outdoor Dome Camera from Dahua Technology. The camera is designed to provide high-detail images in mid- to large-size business establishments and large, open spaces, such as school campuses.
The Ultra Series 8MP Dome Camera has a large, 1/2" image sensor, and captures Ultra HD 4K (3840 x 2160) resolution video at 15 frames per second, and 2560 x 1440 resolution at real-time 30 fps. It also features 164 ft of IR LED night vision that captures crisp black-and-white images in complete darkness.
Transmitting via HDCVI output, which supports extended cable distances, the camera allows you to send UHD 4K resolution video up to 2300 ft to an HDCVI DVR using RG-59 or RG-6 coax cables. Full HD 1080p video can be carried 2600 ft, and 720p close to 4000 ft. DVRs and cables are sold separately.
The camera also provides a standard composite output that works simultaneously with the HDCVI output, allowing you to perform spot checks during installation, as well as stream to two DVRs at the same time. Moreover, using an optional Ethernet balun, you can transmit over Cat 6 cabling up to approximately 1000 ft in UHD 4K.
The Ultra Series 8MP Dome Camera has a 3.7-11mm varifocal lens that provides a 46-112° field of view. Weatherproof and vandal-resistant, the camera can safely be used outdoors and indoors. Featuring a dome style form factor, it can be attached to a ceiling or wall. The camera also provides an audio input for an optional external mic for sound recording.
Other advanced features include Wide Dynamic Range (WDR) and 3D Noise Reduction. Also, supporting dual voltage input (12 VDC or 24 VAC) and a +/-25% input voltage tolerance, the Ultra Series 8MP Dome Camera suits even unstable power supply conditions. - Key Features
-
- 1/2" image sensor
- Capture UHD 4K (3840 x 2160) resolution at 15 fps and 2560 x 1440 at 30 fps
- 328 ft of IR LED night vision
- Simultaneous HDCVI and composite BNC outputs
- Transmit UHD 4K up to 2300 ft over HDCVI using optional coax cables
- Transmit 1080p video approximately 2600 ft and 720p close to 4000 ft
- Optional Ethernet baluns supported for transmission over Cat 6 cables
- 3.7-11mm varifocal lens
- 46-112° field of view
- Weatherproof and vandal-resistant
- Mic input
- Wide Dynamic Range (WDR)
- 3D Noise Reduction
- Dual voltage power input (12 VDC or 24 VAC)
UPC: 816116029763 In the Box Dahua Technology Ultra Series 8MP 4K HDCVI Outdoor Dome Camera with 3.7-11mm Lens & Night Vision Mounting Template 3 x Bolts 3 x Self-Tapping Screws Hex Wrench Documentation CD Limited 5-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Dahua Technology Ultra Series 8MP 4K HDCVI Outdoor Dome Camera with 3.7-11mm Lens & Night Vision in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersDahua Technology Ultra Series Specs | Image Sensor | 8 MP 1/2" CMOS | | Effective Pixels | 3840 x 2160 | | Scanning System | Progressive | | Electronic Shutter Speed | 1/1 - 1/100,000 s | | Minimum Illumination | Color: 0.01 lux at f/1.5
0 lux with IR on | | S/N Ratio | More than 65 dB | | IR Range | 164 ft (50 m) | | IR LED Control | On/Off: Auto, Manual | | IR LEDs | 3 | | Lens Type | On-board, motorized lens / auto iris | | Focal Length | 3.7-11mm | | Aperture | f/1.5 | | Field of View | 46-112° | | Focus Control | Auto, Manual | | Minimum Focus Distance | 7.9" (20 cm) | | Camera Angle Adjustment | Pan: 0-355°
Tilt: 0-65°
Rotation: 0-355° | | Resolution | 3840 x 2160 at 15 fps
2560 x 1440 at 30 fps | | Video Output | 1 x HDCVI on BNC
1 x CVBS on BNC | | Transmission Distance | RG-59/U Coax:
720p: 2625 ft (800 m)
1080p: 1640 ft (500 m)
UHD 4K: 1640 ft (500 m)
RG-6/U Coax:
720p: 3937 ft (1200 m)
1080p: 2625 ft (800 m)
UHD 4K: 2297 ft (700 m)
Cat 6 UTP (Balun Required, Available Separately):
720p: 1476 ft (450 m)
1080p: 984 ft (300 m)
UHD 4K: 984 ft (300 m) | | Day/Night | Auto (ICR), manual | | On-Screen Display | Multi-language | | Backlight Compensation | BLC, HLC, WDR | | Wide Dynamic Range | 120 dB | | Gain Control | AGC | | Noise Reduction | 2D/3D | | White Balance | Auto, manual | | Smart IR | Auto, manual | | Audio | 1-channel input | | Alarm | 2-channel input, 1-channel output | | Housing | Aluminum | | Power Supply Input | 24 VAC
