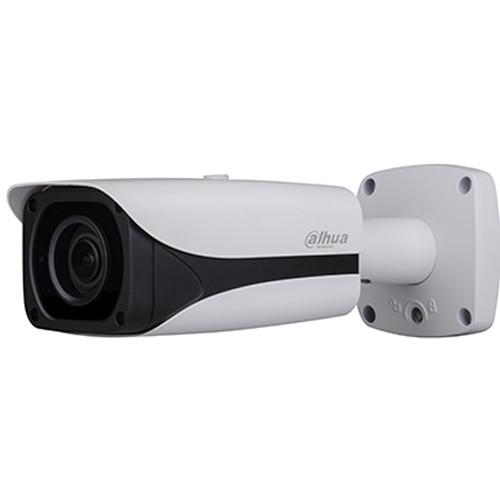

User Manual for Dahua Technology Ultra Series 8MP Outdoor Network Bullet Camera with Night Vision Click to enlarge the picture
Contents of the user manual for the Dahua Technology Ultra Series 8MP Outdoor
- Product category: Wired IP Cameras Dahua Technology
- Brand: Dahua Technology
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Dahua Technology Wired IP Cameras
|
User manual for the Dahua Technology Ultra Series 8MP Outdoor contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Dahua Technology product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Dahua Technology user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Dahua Technology product will considerably shorten its lifespan!
|
Product description The Ultra Series 8MP Outdoor Network Bullet Camera with Night Vision from Dahua Technology has a 1/2.5" progressive scan CMOS sensor and a 4mm fixed lens to capture 3840 x 2160 resolution video at up to 15 fps. IR LEDs allow the camera to produce clear images in complete darkness of objects up to 131' away. Its 4mm lens captures an 87° field of view to monitor both indoor and outdoor areas. Equipped with Intelligent Video System (IVS) analytics, this camera can detect and analyze moving and idle objects, tripwire crossing, and faces. The camera is housed in an IP67-rated enclosure for protection against dust and water, making it suitable for outdoor use. - 1/2.5" progressive scan CMOS sensor captures 8MP video at up to 15 fps
- IR cut filter and IR LEDs help the camera produce clear images at night to a maximum range of 131'
- Smart IR illumination prevents the IR LEDs from whiting out close objects
- Digital Wide Dynamic Range (DWDR) allows the camera to compensate for overly bright or dark environments to produce accurate images
- 4mm lens has an 87° field of view
- Built-in IVS for advanced analytics and detection
- IP67-rated enclosure for outdoor use
UPC: 816116023884 In the Box Dahua Technology Ultra Series 8MP Outdoor Network Bullet Camera with Night Vision Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Dahua Technology Ultra Series 8MP Outdoor Network Bullet Camera with Night Vision in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersDahua Technology N84BB14 Specs | | | Image Sensor | 8 MP 1/2.5" progressive scan CMOS sensor | | Effective Pixels (H x V) | 3840 x 2160 | | Built-In Memory | 32 MB ROM, 512 MB RAM | | Minimum Illumination | Color: 0.05 lux at f/1.6
0 lux at f/1.6 with IR LEDs on | | S/N Ratio | > 50 dB | | Number of IR LEDs and Range | 2 x IR LEDs, up to 131' (40 m) | | IR LED Control | Auto, manual | | Day/Night | Auto ICR, color, B&W | | | | Lens Type | Fixed | | Mount Type | Board-in | | Focal Length | 4mm | | Maximum Aperture | f/1.6 | | Field of View | Horizontal: 87°
Vertical: 48° | | Focus Control | Fixed | | Camera Angle Adjustment | Pan: 0 to 360°
Tilt: 0 to 90°
Rotation: 0 to 360° | | | | Compression | Smart H.265+, H.265, Smart H.264+, H.264 | | Streaming Capability | 3 streams | | Resolution | 4K/8 MP (3840 x 2160), 6 MP (3072 x 2048), 5 MP (2560 x 1920), 3 MP (2048 x 1536), 3 MP (2304 x 1296), 1080p (1920 x 1080), 1.3 MP (1280 x 960), 720p (1280 x 720), D1 (704 x 480), VGA (640 x 480), CIF (352 x 240) | | Frame Rate | Main Stream: 4K/8 MP (1 to 15 fps) or 3 MP (1 to 30 fps)
Sub Stream 1: D1 (1 to 30 fps)
Sub Stream 2: 720p (1 to 30 fps) | | Bit Rate Control | CBR / VBR | | Bit Rate | H.264: 24 to 10,240 kbps
H.265: 14 to 9984 kbps | | Backlight Compensation | BLC, HLC, DWDR | | White Balance | Auto, natural, street lamp, outdoor, manual | | Gain Control | Auto, manual | | Noise Reduction | 3D-DNR | | Motion Detection | Off, on (4 zone, rectangle) | | Region of Interest | Off, on (4 zone) | | Smart IR | Supported | | Digital Zoom | 16x | | Flip / Mirror | Flip: 0, 90, 180, 270°
Mirror: Off, on | | Privacy Masking | Off, on (4 areas, rectangle) | | | | Detection | Tripwire, intrusion, abandoned object, missing object, face | | | | Ethernet | RJ45 (10/100Base-T) | | Protocol | HTTP, HTTPS, TCP, ARP, RTSP, RTP, UDP, SMTP, FTP, DHCP, DNS, DDNS, PPPoE, IPv4/IPv6, QoS, UPnP, NTP, Bonjour, 802.1x, Multicast, ICMP, IGMP, SNMP | | Compatibility | ONVIF, PSIA, CGI | | Streaming Method | Unicast, multicast | | Maximum Number of Users | 10 (unicast), 20 (unicast) | | Web Viewer | Internet Explorer, Chrome, Firefox, Safari | | Management Software | Smart PSS, DSS | | Mobile OS Support | iOS and Android | | Memory Card Support | microSD up to 128 GB (available separately) | | Edge Storage | NAS drive, local computer, microSD | | | | Certifications | UL60950-1, FCC Part 15 Subpart B | | Power Supply | 12 VDC, PoE (IEEE 802.3af Class 0) | | Maximum Power Consumption | <7 W | | Operating Temperature | -22 to 140°F (-30 to 60°C) | | Operating Humidity | <95% RH | | Storage Temperature | -22 to 140°F (-30 to 60°C) | | Storage Humidity | <95% RH | | IP Rating | IP67 | | Casing Material | Metal | | Dimensions | 7.1 x 2.8 x 2.8" (180 x 70 x 70 mm) | | Weight | 0.91 lb (0.41 kg) | | | | Package Weight | 1.235 lb | | Box Dimensions (LxWxH) | 8.2 x 4.25 x 3.9" |
