User Manual for Dahua Technology Ultra Series DH-IPC-HF8242FN-FR 2MP AI Network Box Camera Click to enlarge the picture
Contents of the user manual for the Dahua Technology Ultra Series DH-IPC-HF8242FN-FR 2MP
- Product category: Wired IP Cameras Dahua Technology
- Brand: Dahua Technology
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Dahua Technology Wired IP Cameras
|
User manual for the Dahua Technology Ultra Series DH-IPC-HF8242FN-FR 2MP contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Dahua Technology product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Dahua Technology user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Dahua Technology product will considerably shorten its lifespan!
|

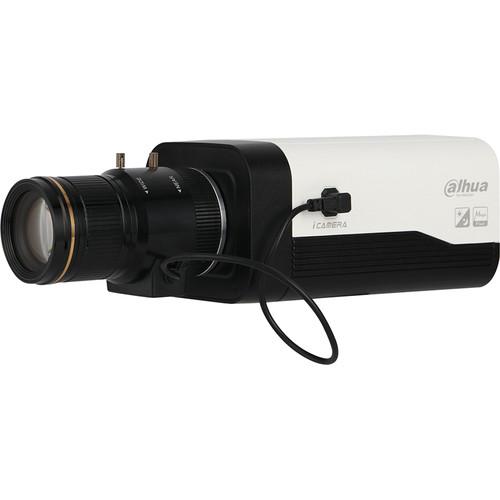

Product description The Ultra Series DH-IPC-HF8242FN-FR 2MP AI Network Box Camera from Dahua Technology uses a 1/1.9" progressive scan CMOS sensor to capture 1920 x 1080 resolution video at 60 fps. An IR cut filter enables day and night functionality. The camera is equipped with a C-mount lens mount so you can choose the lens that best suits your needs. Real-time advanced facial recognition and feature comparison, as well as people counting and heat mapping functionalities, make this box camera suitable for retail, business, and commercial applications.
This camera offers two-way audio communication thanks to a built-in microphone, two audio inputs, and an audio output. An onboard memory card slot supports microSD cards up to 128GB. microSD cards are available separately. Integrated PoE technology simplifies connectivity by enabling the transfer of power and data through a single cable. - Suitable for retail spaces, businesses, and commercial applications
- Real-time facial recognition and feature comparison without the need for an external database
- Vision Processor Unit (VPU) and Dahua's Deep Learning technology enables the camera to enhance target faces to identify and categorize features
- Built-in IVS (Intelligent Video System) analytic algorithms deliver intelligent functions to monitor a scene for tripwire violations, tampering detection, intrusion detection, scene changes, and abandoned or missing objects
- Intelligent Business Analysis features people counting and heat mapping to track and store the daily, weekly, monthly, and yearly flow of people through a defined scene to produce a configurable report of the collected data
- Smart H.265+, H.265, Smart H.264+, and H.264 video compression
- Unicast and multicast streaming methods
- Starlight Technology for low-light applications
- IR cut filter for day and night functionality
- True wide dynamic range (120 dB), backlight compensation, highlight compensation, and Smart Scene Adaptive (SSA)
- White balance modes include auto, natural, street lamp, outdoor, and manual
- Auto and manual gain control
- EIS (electronic image stabilization)
- Motion detection for 4 zones (rectangles)
- ROI (region of interest) for 4 zones
- Privacy masking for 4 zones (rectangles)
- Flip for 0, 90, 180, and 270°
- Built-in microphone, two audio inputs, and one audio output
- Two alarm inputs and one alarm putput
- Compatible with Internet Explorer, Firefox, Safari, iOS, and Android
- Local PC for instant recording and NAS edge storage
- Supports CS-mount lenses with a spacing adapter
- Artificial Intelligence Facial Recognition Features
- Camera Storage:
- Up to 10,000 facial images
- Up to 5 image libraries
Facial Feature Identification:
- Age
- Gender
- Expression (happy, calm, surprised, sad, angry)
- Wearing glasses
- Wearing a mask
- Facial hair
UPC: 819290025248 In the Box Dahua Technology Ultra Series DH-IPC-HF8242FN-FR 2MP AI Network Box Camera (No Lens) Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Dahua Technology Ultra Series DH-IPC-HF8242FN-FR 2MP AI Network Box Camera in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersDahua Technology DH-IPC-HF8242FN-FR Specs | | | Sensor | 2 MP 1/1.9" CMOS | | Lens Mount | C | | IR Cut Filter | Mechanical | | Day/Night | Yes | | Minimum Illumination | Color: 0.001 Lux
B&W: 0.0005 Lux | | Shutter Speed | 1/100000 to 1/3 Seconds | | | | Streaming Resolution | 1920 x 1080 at 60 fps | | Supported Video Compression | H.264, H.264+, H.265, H.265+ | | Multi-View Streaming | Yes, 3 Streams | | | | Streaming | Two-Way | | Audio Formats | AAC, G.711, G.726 | | Built-In Mic | Yes | | External Audio Input | 3.5 mm 2 inputs | | External Audio Output | 3.5 mm | | | | Supported Protocols | ARP, DDNS, DHCP, DNS, FTP, HTTP, IPv4/v6, NTP, PPPoE, QoS Layer 3 DiffServ, RTCP, RTP, RTSP, SMTP, SNMP v1/v2c/v3 (MIB-II), TCP, UDP, UPnP | | | | Application Programming Interface (API) | ONVIF, PSIA, CGI | | Analytics | Artificial Intelligence Facial Recognition
Tampering, Memory Card Error, Network Error, Unauthorized Access, IP Address Conflict, Motion, Tripwire, Intrusion, Scene Change, Abandoned/Missing Object, People Counting, Heat Mapping
Intelligent Business Analysis for Configurable Reports | | Event Trigger | Yes | | Event Action | Recording, Notification, Alarm | | Data Streaming | Yes | | | | Mobile Operating Systems | iOS, Android | | | | Memory | 2040 MB RAM / 4096 MB Flash | | Recording Media | microSD (Up to 128 GB) | | Pan/Tilt | None | | Alarm I/O | 2 / 1 | | I/O Connections | 1 x RJ45
1 x Power
1 x 9-Pin Serial (RS-485)
1 x BNC | | Video Management Software | SmartPSS, DSS | | Internal Storage | None | | External Storage Options | Local PC, NAS | | Power Source | AC, DC, PoE 802.3af | | Power Consumption | 10 W | | Material of Construction | Metal (Unspecified Type) | | Operating Temperature | -22 to 140°F / -30 to 60°C | | Storage Temperature | -22 to 140°F / -30 to 60°C | | Operating Humidity | 0 to 95% | | Dimensions | H: 2.9 x W: 3.4 x L: 6.4" / H: 74.0 x W: 85.5 x L: 161.6 mm | | Weight | 1.72 lb / 0.78 kg | | | | Package Weight | 2.025 lb | | Box Dimensions (LxWxH) | 9.9 x 6.3 x 4.5" |
